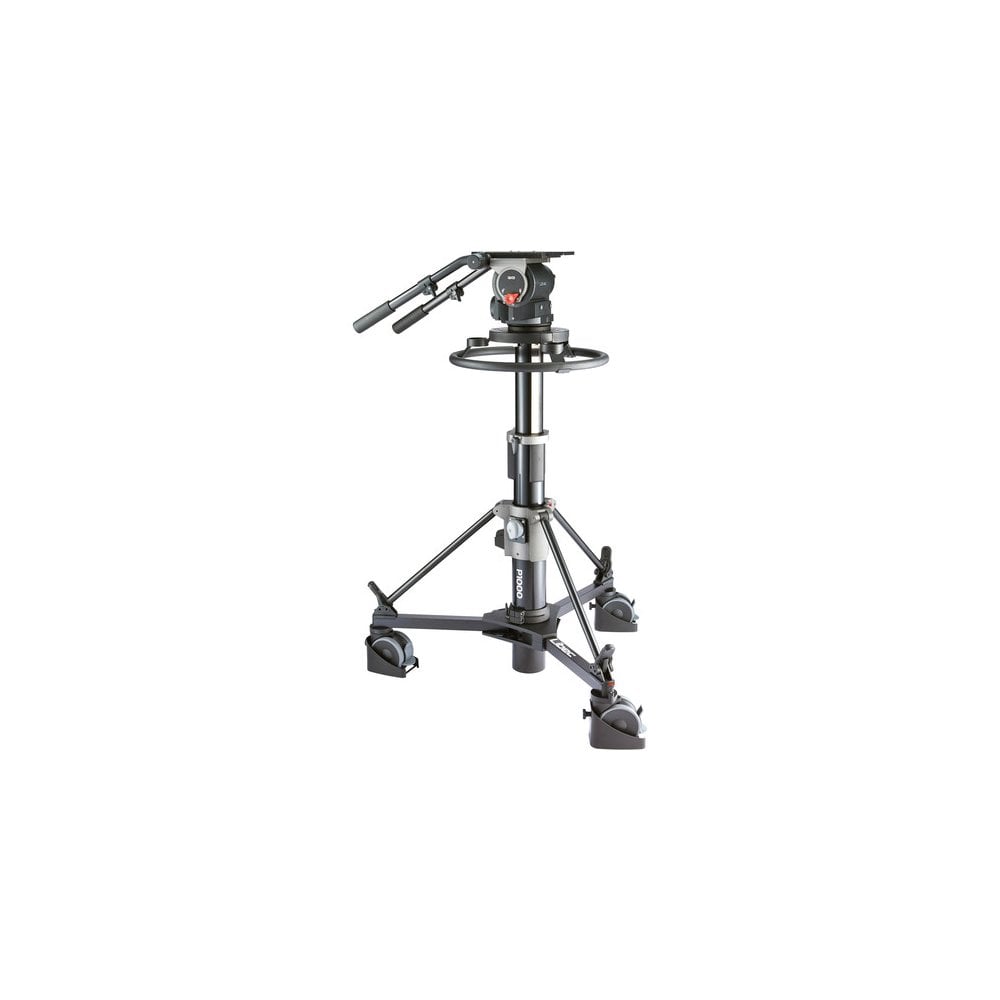

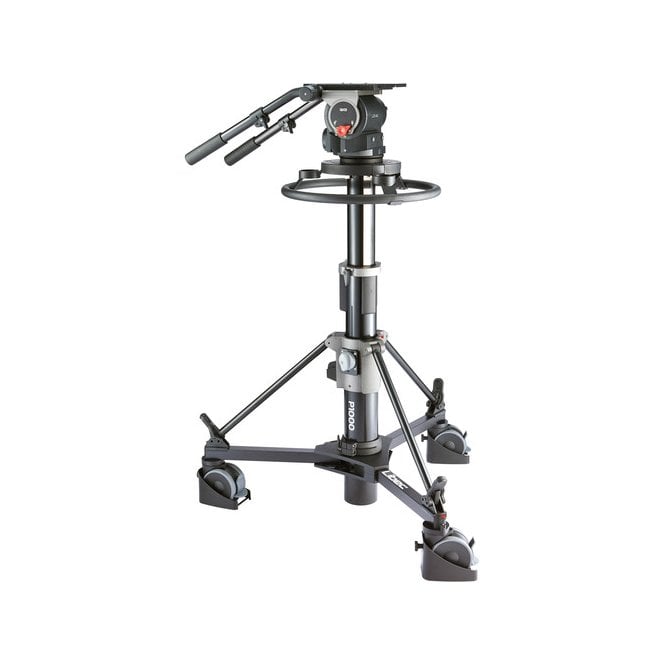

Libec QD-30PD Pedestal System with QH3 Head and P1000 Pedestal

Libec QD-30PD (QD_30PD, QD/30PD, QD 30PD) Pedestal System with QH3 Head and P1000 Pedestal

P1000 Pedestal

The P1000 is equipped with the tracking locking mechanism and cable guards which come standard with the large-sized double-wheel 125mm casters. The tracking locking mechanism ensures straight-line movement by locking the caster direction, while the cable guards prevent the wheels from running over the cable during studio production.

Flat Base with High Compatibility

Not only compatible with Libec heads but other brand heads as well. With optional accessories, ball based heads can also be attached on this pedestal.

Easy-read Air Pressure Gauge

Air pressure can be easily checked with the air pressure meter.

Drag Knob for Upper Column Adjustment

Upper column friction can be adjusted to preferred settings with the drag knob.

Mid Column with Gas Spring Assist

The gas spring inside the P1000 pedestal supports the mid column's elevation, allowing safe and easy height adjustments and setups with heavy equipment.

High Performance Casters with Track Lock Mechanism

Large High performance 125mm casters are equipped along with removable cable guards. The casters has a track lock mechanism which allows users to set and move the dolly in three different modes: Free Mode, Tracking Mode and Steer Mode. The caster's locking sound is minimal.

Easy to Transport Design

The P1000 can be easily disassembled into the P1000 Column, the steering handle and the dolly. This makes the P1000 easy to transport within studios and outside broadcast sites.

QH-1 Head

Smooth Counterbalance System

The Smooth Counterbalance System is a unique Libec technology that allows the counterbalance knob to be adjusted with constant motion to smoothly reach the minimum and maximum power range. The foldaway knob is designed for easy speedy adjustments.

Counterbalance Meter

The counterbalance power level can be easily viewed by looking at the Counterbalance Meter, allowing users to keep an eye on their preferred counterbalance settings.

Center Tilt Lock with High Safety

For the camera system's safety, the head can be physically locked into a center tilt position. Even at a distance, the arrow shaped knob and Lock / Unlock symbols are visible.

Flat Base and 150mm Ball Base Adapter

The BL-150 ball base adapter, which converts the flat base head into a 150mm ball head, is included with the kit.

1/4" and 3/8" Screw Holes for Accessory Attachments

Each side of the tripod has three screw holes for accessory attachments.

New Leg Lock Knob

Design The newly designed leg lock knob are easy to turn, allowing users to adjust tripod legs quickly and firmly.

• Payload: 47kg / 103.4lb
• Weight: 39.0kg / 85.8lb
• Height: 91.5 to 173cm / 36 to 68.0"
• Head Attachment: Flat Base with 4 bolts
• Column: 2STAGE

In the Box

• Libec P1000 Pedestal
• QH3 Head
