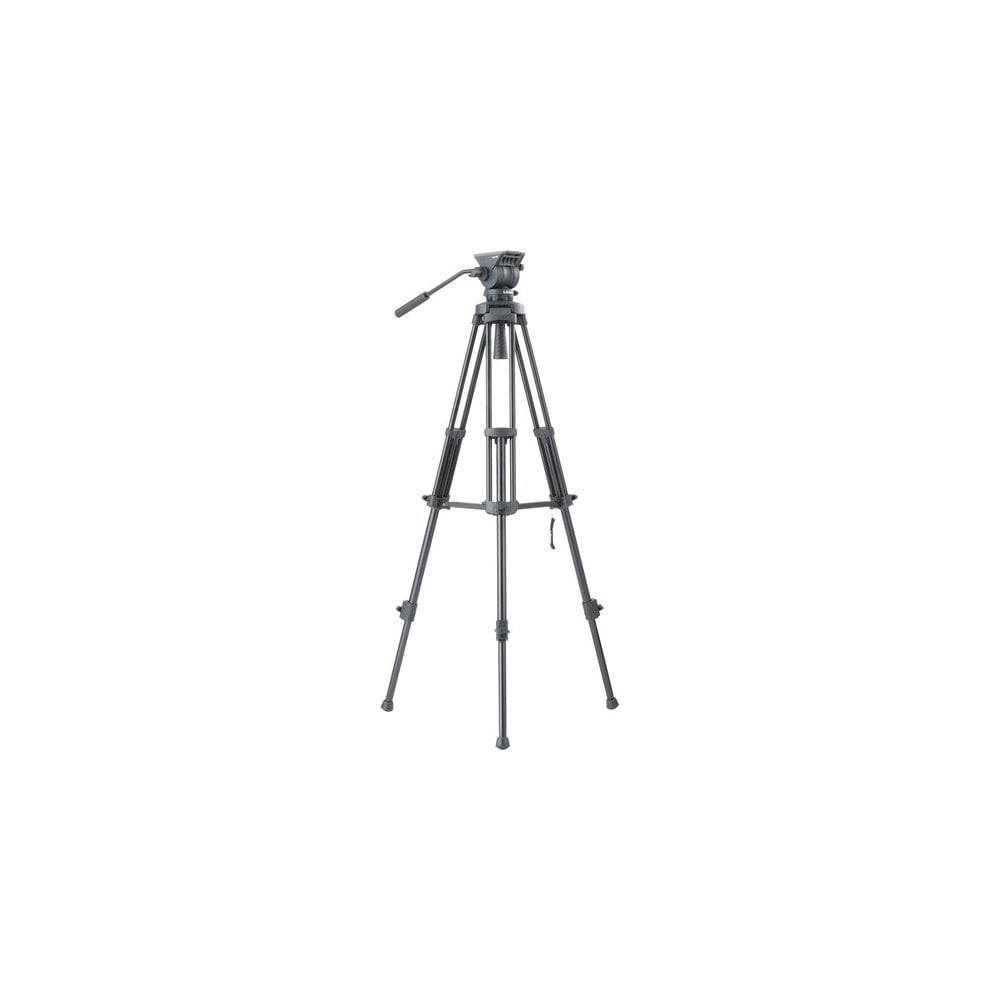

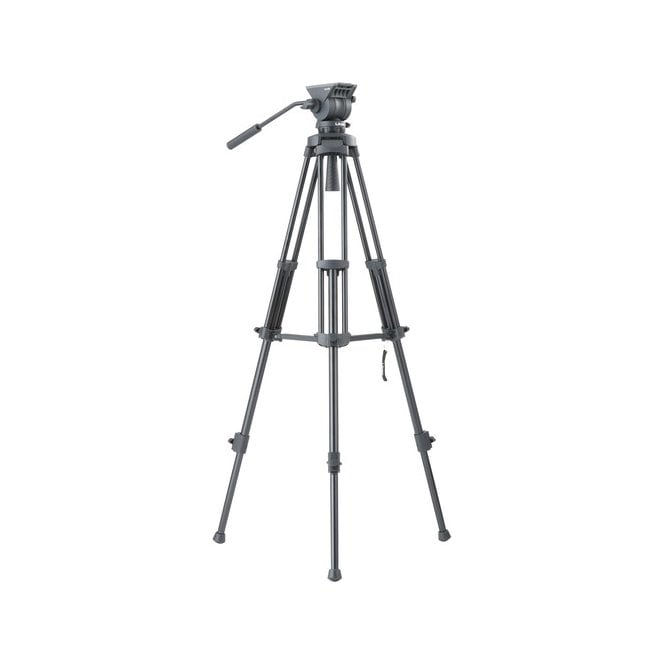

Libec TH-Z Tripod System with Mid-Level Spreader (75 mm)

Libec TH-Z (TH_Z, TH/Z, THZ, th-z) Tripod System with Mid-Level Spreader (75 mm)

The Libec TH-Z Tripod System features a 75mm half ball/flat base fluid head and aluminum 2-stage tripod with a built-in spreader. It also includes a zippered soft carrying case. The head supports up to 11 lb and features fixed counterbalance and drag. It can be attached directly to the tripod or mounted directly on sliders and other support gear via the flat base, which has a 3/8"-16 mounting thread on the bottom. The head also has a snap-in camera plate system that allows for easier attachment of your camera. A pan bar is included and an optional second one is supported. The height range for the head and tripod combined is 28 to 63.5".

Libec TH-Z H Fluid Head

The Libec TH-Z H Fluid Head is a compact dual-function tripod head with an 11 lb payload and fixed counterbalance and drag. It features a native 75mm half ball and has a flat base with a 3/8"-16 mounting thread on the bottom of the half ball. It's directly compatible with 75mm bowl tripods but can also be mounted directly on sliders and other supports via the flat base. A tie-down is included for securing it to tripods.

The head has a snap-in camera plate system that lets you attach the included camera plate from above rather than slide it in from the rear. The plate has a sliding range of 1.2" once secured. It comes with a 1/4"-20 mounting screw and an anti-twist video pin beside it. A long rosette-mount pan bar is included and an optional second one is also supported.

Libec TH-Z H Fluid Head

Camera Plate

• Camera Plate Features: Sliding Balance Plate
• Camera Mounting Screw: 1 x 1/4"-20 Male with Locating Pin
• Balance Plate Sliding Range: 1.2" / 3.05 cm

Tripod Platform

• Base Mount: 75 mm Half Ball, 3/8"-16 Female

Pan & Tilt

• Drag Control: Fixed
• Vertical Tilt: +90° to -80°
• Panning Range: 360°

Physical

• Load Capacity: 11 lb / 4.99 kg
• Counter Balance: Fixed
• Pan Handle Fittings: 2 x Rosette
• Bubble Level: 1 x Illuminated
• Weight: 2.4 lb / 1.09 kg

Libec TH-Z T Aluminum Tripod With Mid-Level Spreader (75mm Bowl)
General

• Head Mount Type: 75 mm Bowl
• Load Capacity: 55 lb / 24.95 kg
• Maximum Working Height: 58.5" / 148.59 cm (with Spreader)
• Minimum Working Height: 23" / 58.42 cm (with Spreader)
• Materials: Aluminum
• Weight: 5.3 lb / 2.40 kg

Legs

• Leg Lock Type: Twist Lock
• Leg Sections: 3
• Spreader: Mid-Level (Attached)

Libec RC-10 Tripod Carrying Case (Black)

• Carrying/Transport Options: Top Handle
• Type of Closure: Zipper
• Interior Dimensions: L: 36.6" / L: 93.0 cm

In the Box

• 1x Libec TH-Z H Fluid Head
• 1x TH-Z T Tripod
• 1x RC-10 Case
