Libec TH-Z-S8-KIT Fluid Head, Tripod, 33 inch Slider & Carry Case Kit

Libec TH-Z-S8-KIT (TH_Z_S8_KIT, TH/Z/S8/KIT, th-z-s8-kit) Fluid Head, Tripod, 33 inch Slider & Carry Case Kit

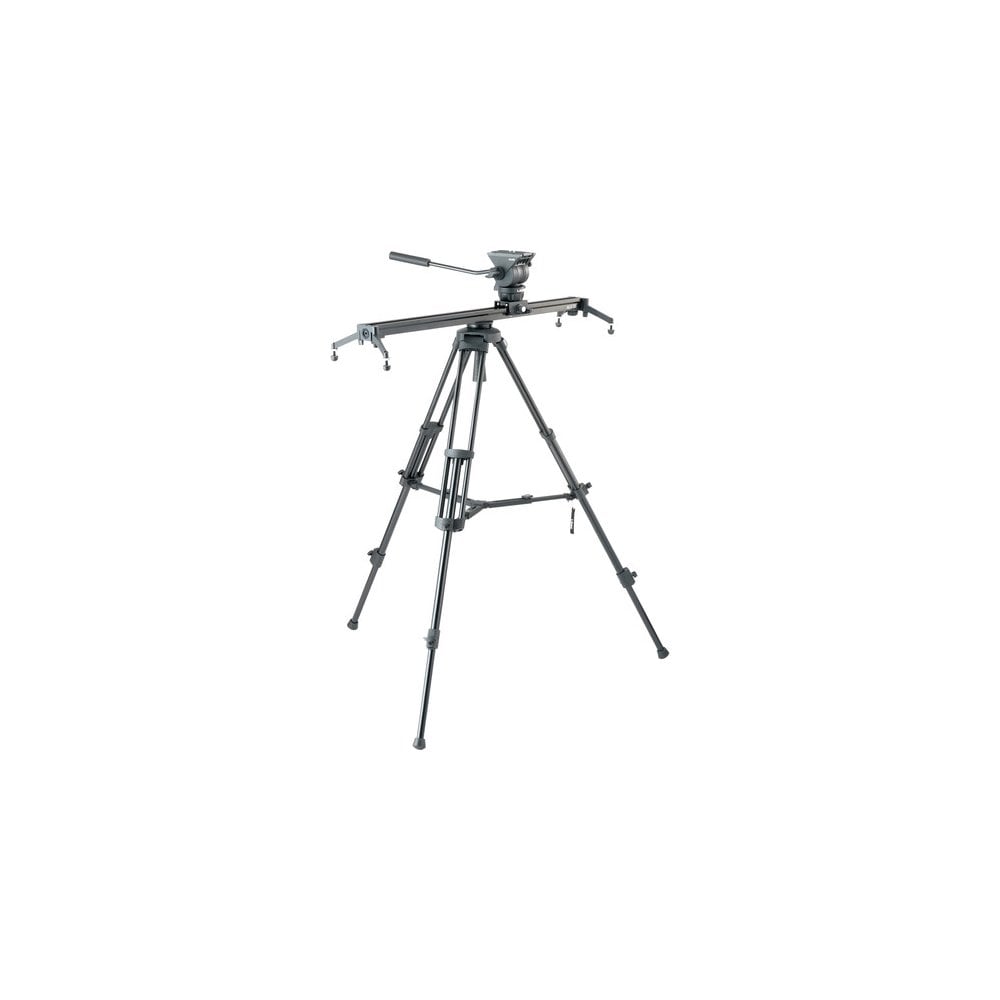

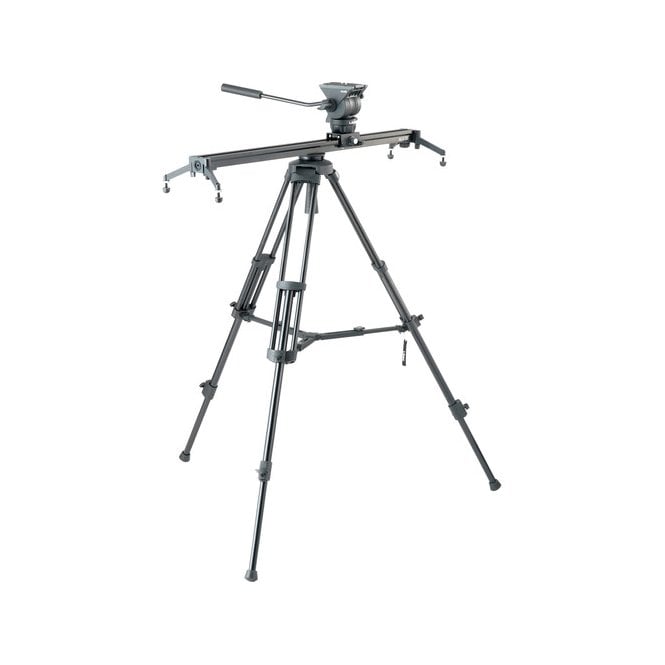

The Libec TH-Z S8 Kit is a highly flexible system featuring a fluid head that can be mounted directly on the 75mm tripod bowl or attached directly to the slider. This is thanks to the head's dual-function design consisting of a half ball with a flat base. The slider also has a 75mm half ball and can be mounted directly on the tripod as well. The fluid head supports up to 11 lb and features fixed counterbalance and drag and a convenient snap-in camera plate system. The slider provides a 28" travel distance, and the tripod offers a height range of 23 to 58.5".

Libec TH-Z H Fluid Head

The Libec TH-Z H Fluid Head is a compact dual-function tripod head with an 11 lb payload and fixed counterbalance and drag. It features a native 75mm half ball and has a flat base with a 3/8"-16 mounting thread on the bottom of the half ball. It's directly compatible with 75mm bowl tripods but can also be mounted directly on sliders and other supports via the flat base. A tie-down is included for securing it to tripods.

The head has a snap-in camera plate system that lets you attach the included camera plate from above rather than slide it in from the rear. The plate has a sliding range of 1.2" once secured. It comes with a 1/4"-20 mounting screw and an anti-twist video pin beside it. A long rosette-mount pan bar is included and an optional second one is also supported.

Libec TH-Z T Aluminum Tripod with Mid-Level Spreader (75mm Bowl)

The Libec TH-Z T is a 2-stage aluminum tripod with a 75mm bowl base and built-in mid-level spreader. It supports up to 55 lb and is adjustable from a minimum height of 23" to a maximum height of 58.5". The integrated mid-level spreader is adjustable telescopically.

Libec ALX S8 Slider (32.6")

The Libec ALX S8 is a 32.6" long camera slider that features an integrated 75mm ball base with a flat bottom, allowing it to be mounted directly to 75mm bowl fluid heads as well as flat-base heads. When used on tabletop or flat surface using, the slider has a maximum load capacity of 33 lb. For smooth and wobble-free operation, the carriage features eight roller bearings positioned on the rail top and along the sides at angles. A spring-loaded friction knob allows you to adjust slide tension, while a brake knob will lock the carriage in place at any point on the rails. Using a supplied hexagon wrench, you can adjust the pushing force that the ball bearing exerts on the rail.

At each end of the slider, there are 1/4"-20 and 3/8"-16 threads and a rosette for attaching various accessories. If you will be using the slider on the ground or tabletop, the slider features built-in legs with height-adjustable feet to accommodate non-level terrain. For compact storage, the legs fold up against the side of the slider, securing in place using thumb knobs. Unscrewing the knobs completely allows you to detach the legs completely and swap out the 32.6" rail for separately available 15.5" or 47" rail lengths.

Libec RC-10 Tripod Carrying Case (Black)

Store, transport, and protect your TH-Z or TH-X tripod with this black RC-10 Carrying Case from Libec. The case features dual carry straps and an exterior zip pocket for accessories.

Camera Plate

Camera Plate Features Sliding Balance Plate

Camera Mounting Screw 1 x 1/4"-20 Male with Locating Pin

Balance Plate Sliding Range 1.2" / 3.05 cm

Head

Base Mount 75 mm Half Ball

3/8"-16 Female

Counter Balance Fixed

Pan Handle Fittings 2 x Rosette

Bubble Level 1 x Illuminated

Pan & Tilt

Drag Control Fixed

Vertical Tilt +90° to -80°

Panning Range 360°

General

Load Capacity 11 lb / 4.99 kg

Weight 2.4 lb / 1.09 kg

Packaging Info

Package Weight 3.715 lb

Box Dimensions (LxWxH) 15.6 x 8.5 x 6.1"

Libec TH-Z T Aluminum Tripod With Mid-Level Spreader (75mm Bowl) Specs

General

Head Mount Type 75 mm Bowl

Maximum Working Height 58.5" / 148.59 cm (with Spreader)

Minimum Working Height 23" / 58.42 cm (with Spreader)

Closed Length Not Specified by Manufacturer

Materials Aluminum

Weight 5.3 lb / 2.4 kg

Legs

Leg Lock Type Twist Lock

Leg Sections 3

Spreader Mid-Level (Integrated)

Packaging Info

Package Weight 7.7 lb

Box Dimensions (LxWxH) 31.75 x 8 x 7.5"

Libec ALX S8 Slider (32.6") Specs

Load Capacity 33 lb / 15 kg

Travel Distance 28" / 71.1 cm

Mounting

Camera Mounting Screw 3/8"-16 Male

Tripod Mounting 75 mm Ball Base

3 x 1/4"-20 Female Thread

3 x 3/8"-16 Female Thread

Accessory Mounting 2 x 1/4"-20 Female

2 x 3/8"-16 Female

2 x Rosette

Physical

Track Dimensions L: 31.5" / L: 80 cm

Body Material Aluminum, Plastic

Weight 4 lb / 1.8 kg

Packaging Info

Package Weight 8.1 lb

Box Dimensions (LxWxH) 34.5 x 6.5 x 6.5"

Libec RC-10 Tripod Carrying Case (Black) Specs

Physical

Carrying/Transport Options Top Handle

Type of Closure Zipper

Interior Dimensions L: 36.6" / L: 93.0 cm

Packaging Info

Package Weight 1.2 lb

Box Dimensions (LxWxH) 13.9 x 8.4 x 5.3"

In the Box

Libec TH-Z H Fluid Head

Tie-Down

Pan Bar

Camera Plate with 1/4"-20 Screw

Libec TH-Z T Aluminum Tripod with Mid-Level Spreader (75mm Bowl)

Libec ALX S8 Slider (32.6")

Libec ALX SP Slider Platform

Dual-Base Tripod Mount Adapter

Tripod Mount Fixing Handle

Collapsible / Removable Tabletop Legs

Padded Nylon Carrying Case

Maintenance Kit

Libec RC-10 Tripod Carrying Case (Black)
