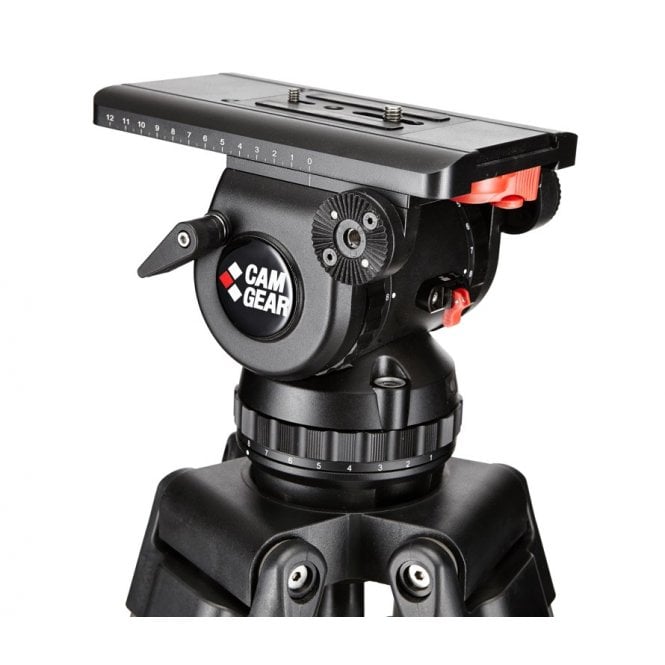

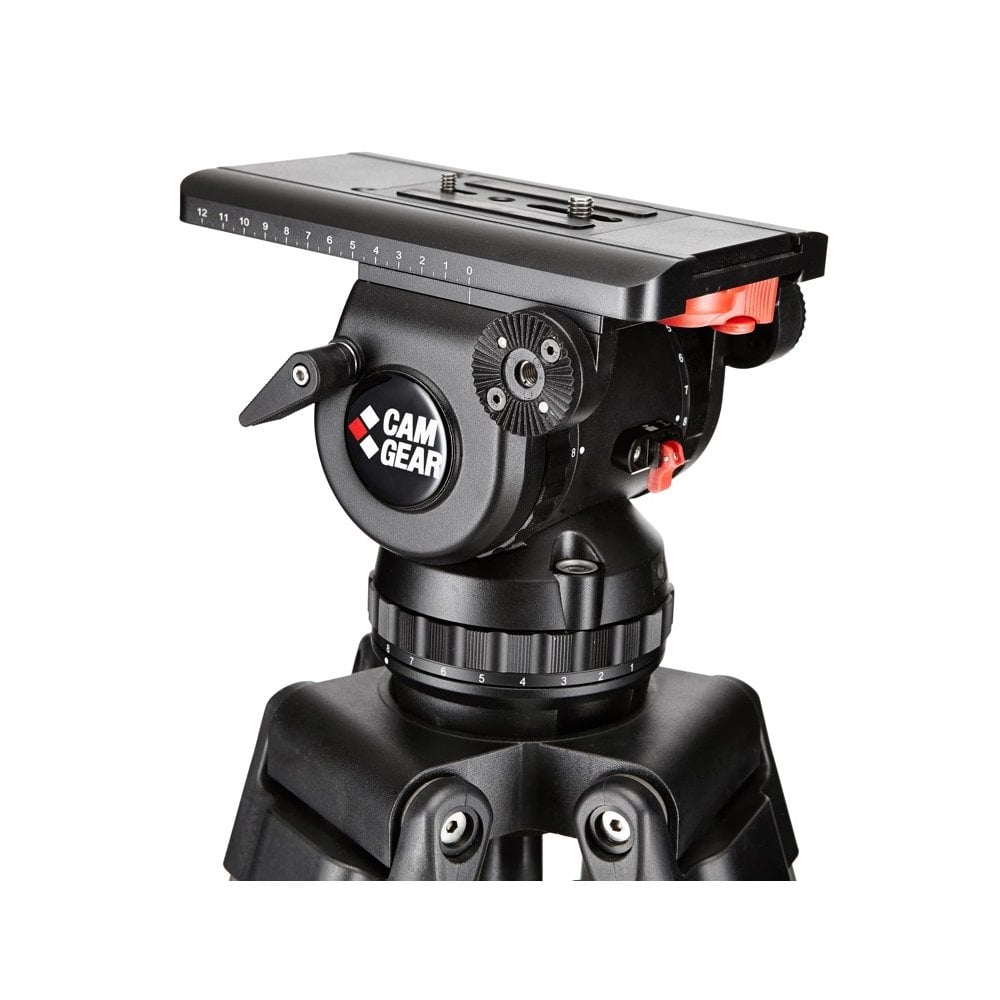

Camgear V20P EFP Fluid Head (100mm Bowl)

2760.0046 27600046 2760 0046 2760/0046

Real professional drag performance, selectable 8 positions pan & tilt drag including zero position, offer operators silky smooth movement and precise motion tracking.

Selectable 9 position counterbalance for ENG cameras. Thanks to zero position, it can support the lightweight ENG camera and offer fine adjustment to reach the perfect balance.

With self-illuminating levelling bubble.

Perfect solution for ENG/EFP and field-based HD production and small studio configuration and it supports most portable broadcast cameras and camcorders.

Equipped with mini Euro plate quick-release system, which enables faster set-up of camera.

Specifications

• Model Number: V20P
• Maximum Payload: 25 kg/55.1 lbs
• Counterbalance Range: 0-24 kg/0-52.9 lbs (at C.O.G 125 mm)
• Camera Platform Type: Mini Euro plate (Camgear WP-4)
• Sliding Range: 120 mm/4.72 in
• Camera Plate: 1/4”, 3/8” screw
• Counterbalance System: 9 steps (1-8 & 2 Adjusting levers)
• Pan & Tilt Drag: 8 steps (1-8)
• Pan & Tilt Range: Pan: 360° / Tilt: +90/-75°
• Temperature Range: -40°C to +60°C / -40 to +140°F
• Levelling Bubble: Illuminated Levelling Bubble
• Weight: 4.78 kg/10.5 lbs
• Bowl Diameter: 100 mm

In The Box

• 1x Camgear V20P EFP Fluid Head (100mm Bowl)
