Libec H15 75mm ball and flat base video head

Libec H15 75mm ball and flat base video head(H15)

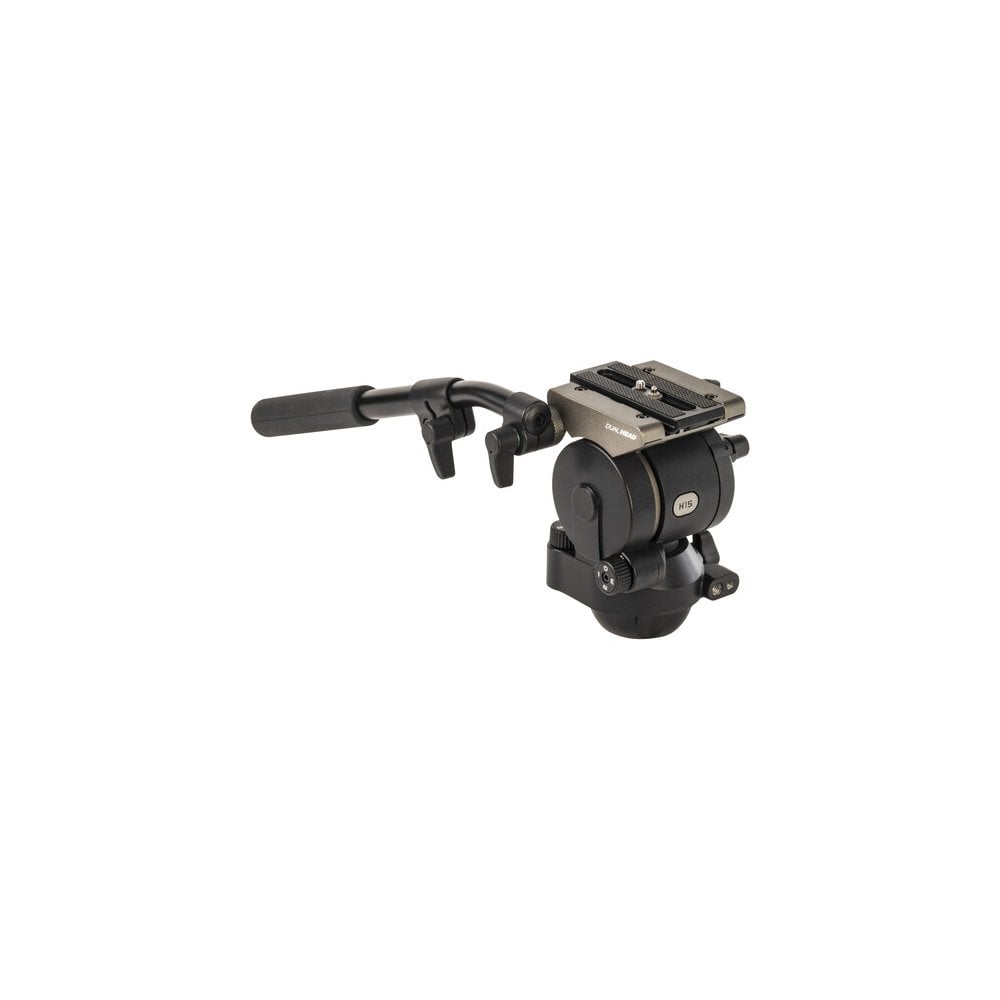

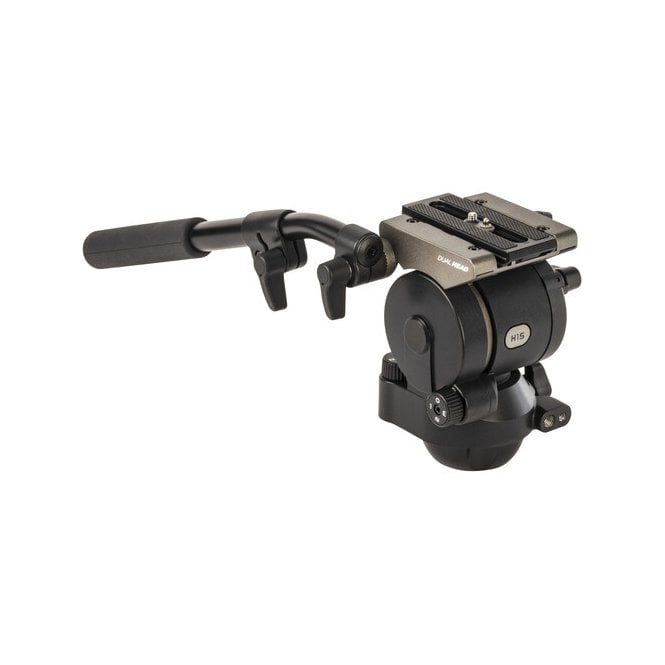

Integrate a fluid head into your tripod configuration with various adjustment features using this H15 75mm Ball and Flat Base Video Head with Pan Handle from Libec. An included pan handle makes for easy movement up and down or side to side. Independent pan and tilt adjustments make movements intuitive and smooth. The H15 head has a load capacity of 6.6 lb and an adjustable counterbalance range of 1.7 to 4.4 lb.

Your camera is secured via a 1/4"-20 screw and locating pin, and additional 3/8"-16 and 1/4"-20 screws are included for further attachments. An illuminated bubble level ensures your configuration is level when mounted onto tripod legs. The H15 is compatible with Manfrotto or Sachtler heads.

Camera Plate

Camera Plate Features Sliding Balance Plate

Camera Mounting Screw 1 x 1/4"-20 Male with Locating Pin

Balance Plate Sliding Range 1.2" / 30 mm

Head

Base Mount 75 mm Half Ball

Flat Base

Counter Balance Continuous (1.8 to 4.4 lb / 0.8 to 2 kg)

Center of Gravity 2.2" / 55 mm

Included Pan Handle Length 10.8" / 275 mm

Bubble Level 1 x Illuminated

Accessory Mounting 1/4"-20 Female Thread

3/8"-16 Female Thread

Pan & Tilt

Drag Control Tilt: Stepped 3-Step

Pan: Stepped 3-Step

Drag Type Fluid

Vertical Tilt +90° to -70°

Independent Pan Lock Yes

Independent Tilt Lock Yes

General

Load Capacity 6.6 lb / 3 kg

Operating Temperature -8 to 92°F / -40 to 60°C

Weight 6 lb / 2.7 kg

Packaging Info

Package Weight 8.585 lb

Box Dimensions (LxWxH) 19.8 x 11 x 8.6"

In the Box

Libec H15 75mm Ball and Flat Base Video Head with Pan Handle (6.6 lb Payload)

Spare 1/4"-20 and 3/8"-16 Screws
