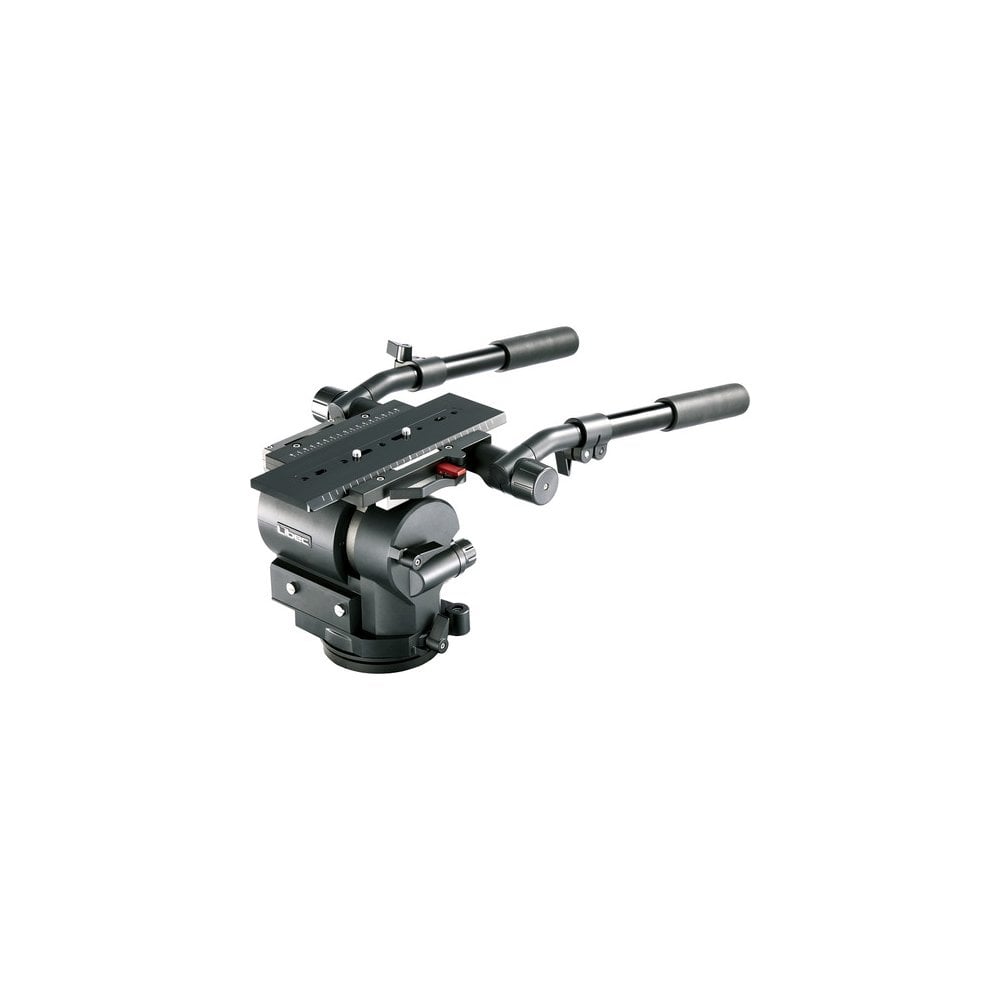

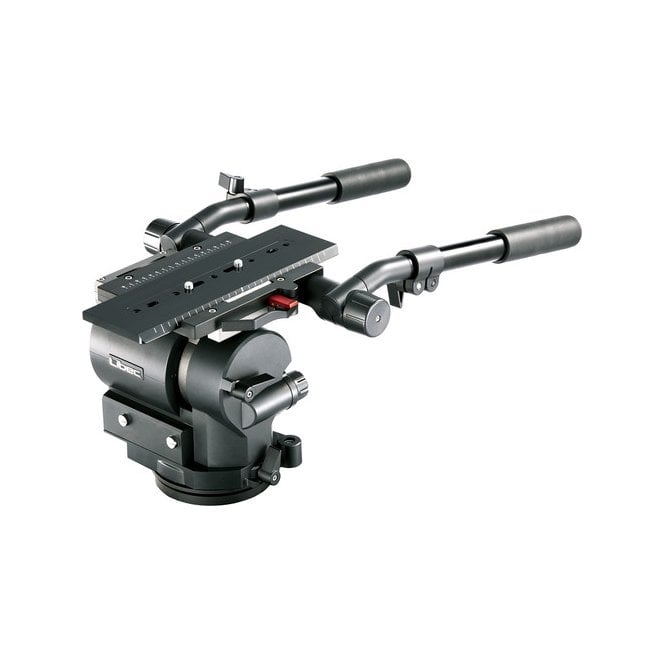

Libec QH1 Fluid Head

code: QH1
  • £4,872.40
  • RRP: £5,900.00
Item Available | Usually dispatched within 24 hours
Loading...

Features

  • Pedestal-capable heavy-duty fluid head with 88 lb payload
  • Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
  • Side-mount camera plate system
  • 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
  • Two 2-piece telescoping pan bars
  • Continuous counterbalance
  • 7-step drag
  • Independent pan and tilt locks
  • 90 to -70° tilt
  • Illuminated bubble level
  • Aluminum construction

Libec QH1 (QH-1, QH/1, QH_1, qh1) Fluid Head

The Libec QH1 Fluid Head is a pedestal-capable heavy-duty head supporting up to 88 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH1 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws. The head also comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.

View More Details

Camera Plate

  • Camera Plate Features: Sliding Balance Plate
  • Camera Mounting Screw: 2 x 3/8"-16 Male
  • Balance Plate Sliding Range: 2.95" / 75 mm

Tripod Platform

  • Base Mount: 4-Bolt Flat Base

Pan & Tilt

  • Drag Control: 7-Step
  • Vertical Tilt: +90° to -70°
  • Independent Pan Lock: Yes
  • Independent Tilt Lock: Yes

Physical

  • Material: Aluminum
  • Load Capacity: 88 lb / 39.92 kg
  • Counter Balance: Continuous (33 to 77 lb / 14.97 to 34.93 kg)
  • Center of Gravity: 4.92" / 125 mm
  • Bubble Level: 1 x Illuminated
  • Operating Temperature: -4 to 140°F / -20 to 60°C
  • Weight: 27.9 lb / 12.66 kg
View More Details

In the Box

  • Libec QH1 Fluid Head
  • 150mm Half Ball Adapter
  • 4 x Mounting Screw for Half Ball Adapter
  • 2 x Telescoping Pan Bar
  • Camera Plate with Two 3/8"-16 Screws
  • 2 x Spare 3/8"-16 Camera Plate Screw
View More Details
Be the first to review Libec QH1 Fluid Head. Write a review ›
