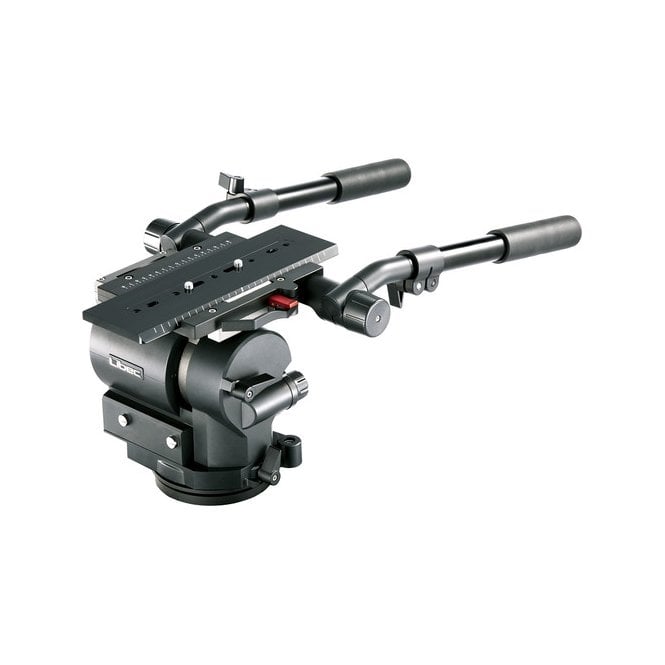

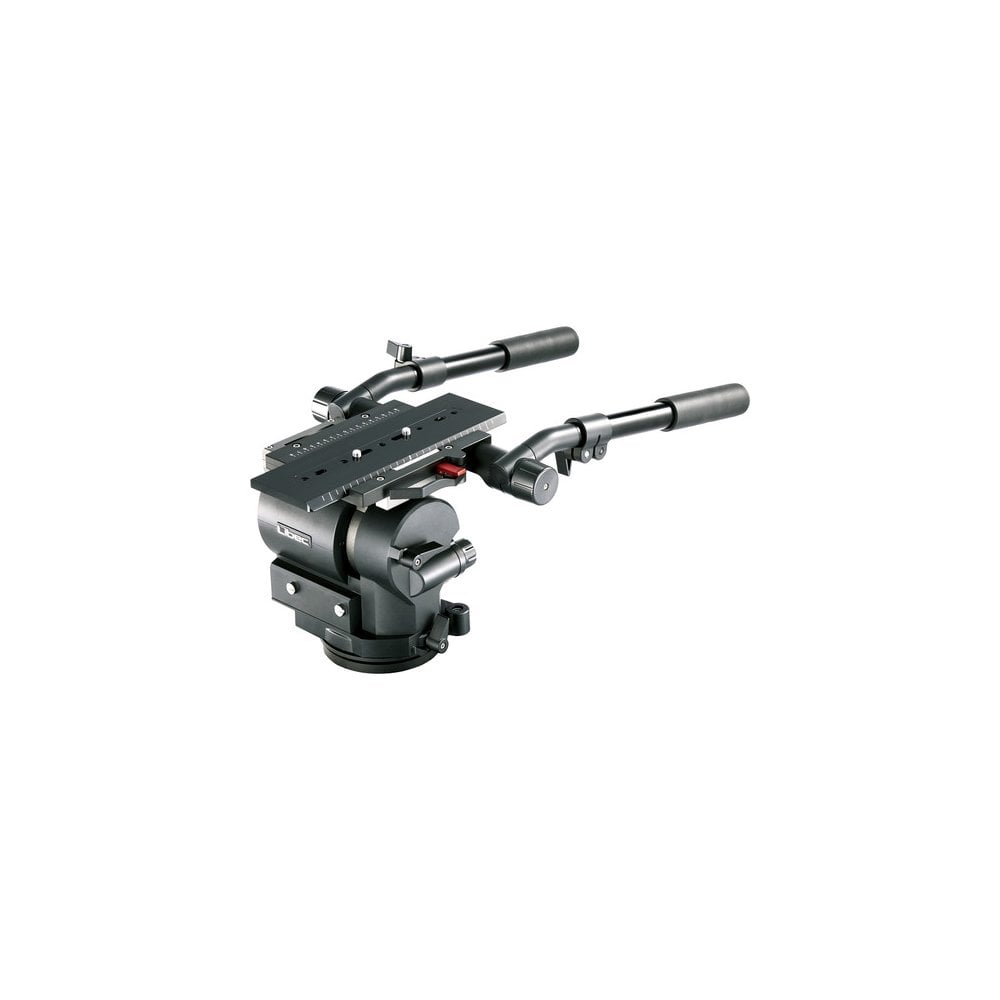

Libec QH3 Fluid Head

Libec QH3 (QH-3, QH/3, QH 3, qh3) Fluid Head

The Libec QH3 Fluid Head is a pedestal-capable heavy-duty head supporting up to 152 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH3 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws. The head also comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.

Camera Plate

• Camera Plate Features: Sliding Balance Plate
• Camera Mounting Screw: 2 x 3/8"-16 Male
• Balance Plate Sliding Range: 2.95" / 75 mm

Tripod Platform

• Base Mount: 4-Bolt Flat Base

Pan & Tilt

• Drag Control: 7-Step
• Vertical Tilt: +90° to -70°
• Independent Pan Lock: Yes
• Independent Tilt Lock: Yes

Physical

• Material: Aluminum
• Load Capacity: 152 lb / 68.95 kg
• Counter Balance: Continuous (62 to 143 lb / 28.12 to 64.86 kg)
• Center of Gravity: 4.92" / 125 mm
• Bubble Level: 1 x Illuminated
• Operating Temperature: -4 to 140°F / -20 to 60°C
• Weight: 27.9 lb / 12.66 kg

In the Box

• Libec QH3 Fluid Head
• 150mm Half Ball Adapter
• 4 x Mounting Screw for Half Ball Adapter
• 2 x Telescoping Pan Bar
• Camera Plate with Two 3/8"-16 Screws
• 2 x Spare 3/8"-16 Camera Plate Screw
