Libec TH-Z-H Fluid Head

Libec TH-Z-H (TH/Z/H, TH_Z_H, th-z-h) Fluid Head

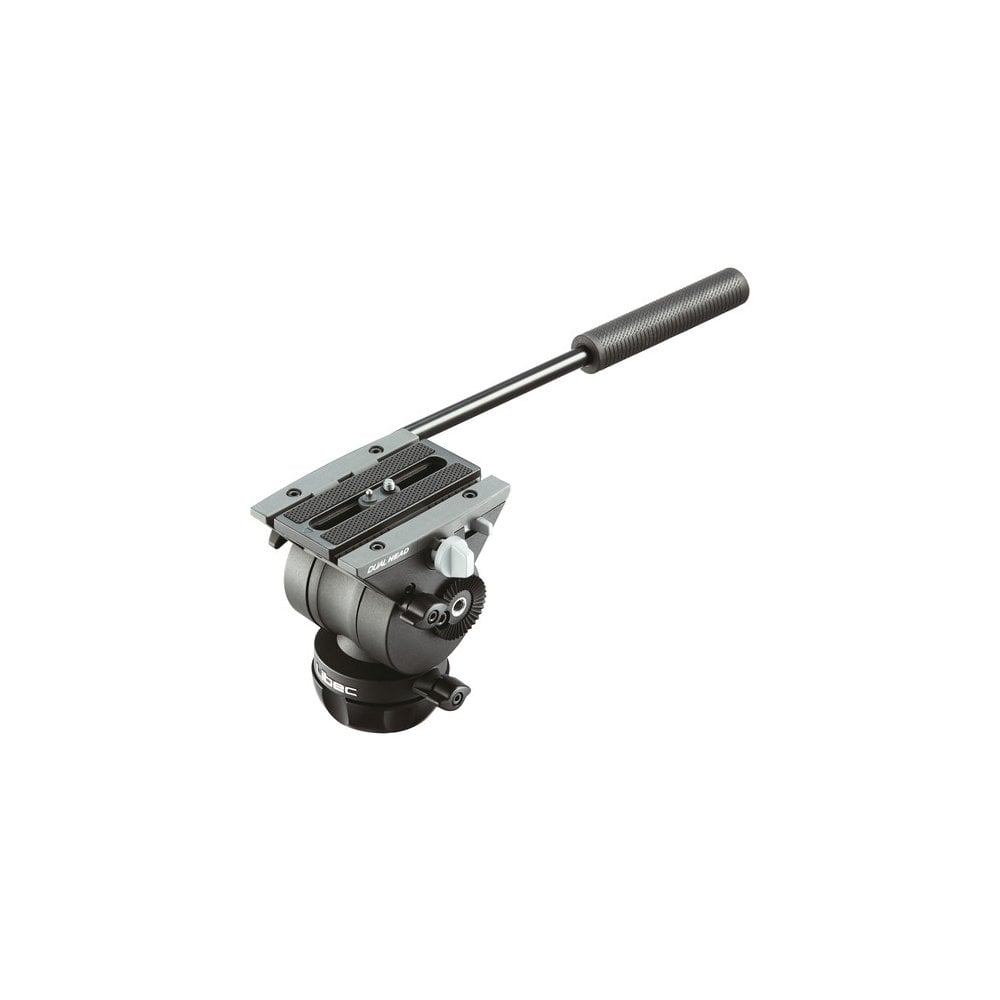

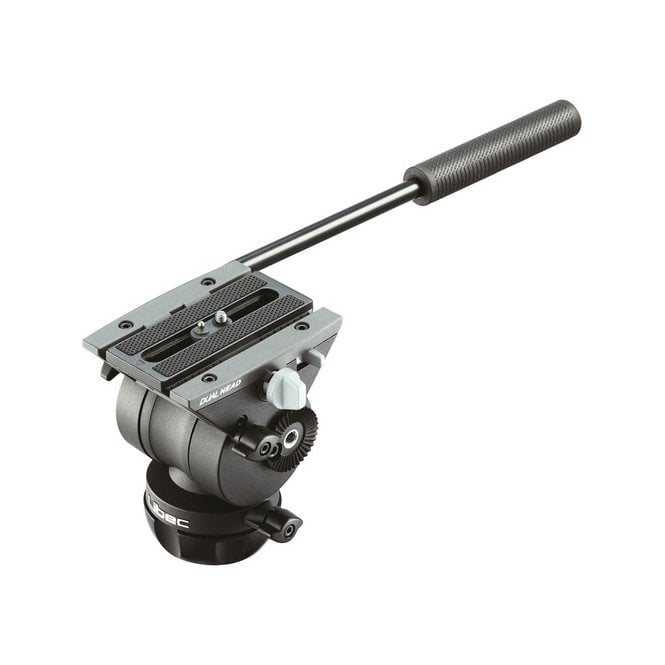

The Libec TH-Z H Fluid Head is a compact dual-function tripod head with an 11 lb payload and fixed counterbalance and drag. It features a native 75mm half ball and has a flat base with a 3/8"-16 mounting thread on the bottom of the half ball. It's directly compatible with 75mm bowl tripods but can also be mounted directly on sliders and other supports via the flat base. A tie-down is included for securing it to tripods.

The head has a snap-in camera plate system that lets you attach the included camera plate from above rather than slide it in from the rear. The plate has a sliding range of 1.2" once secured. It comes with a 1/4"-20 mounting screw and an anti-twist video pin beside it. A long rosette-mount pan bar is included and an optional second one is also supported.

Camera Plate

Camera Plate Features Sliding Balance Plate

Camera Mounting Screw 1 x 1/4"-20 Male with Locating Pin

Balance Plate Sliding Range 1.2" / 3.05 cm

Head

Base Mount 75 mm Half Ball

3/8"-16 Female

Counter Balance Fixed

Pan Handle Fittings 2 x Rosette

Bubble Level 1 x Illuminated

Pan & Tilt

Drag Control Fixed

Vertical Tilt +90° to -80°

Panning Range 360°

General

Load Capacity 11 lb / 4.99 kg

Weight 2.4 lb / 1.09 kg

Packaging Info

Package Weight 3.715 lb

Box Dimensions (LxWxH) 15.6 x 8.5 x 6.1"

In the Box

• Libec TH-Z H Fluid Head
• Tie-Down
• Pan Bar
• Camera Plate with 1/4"-20 Screw
