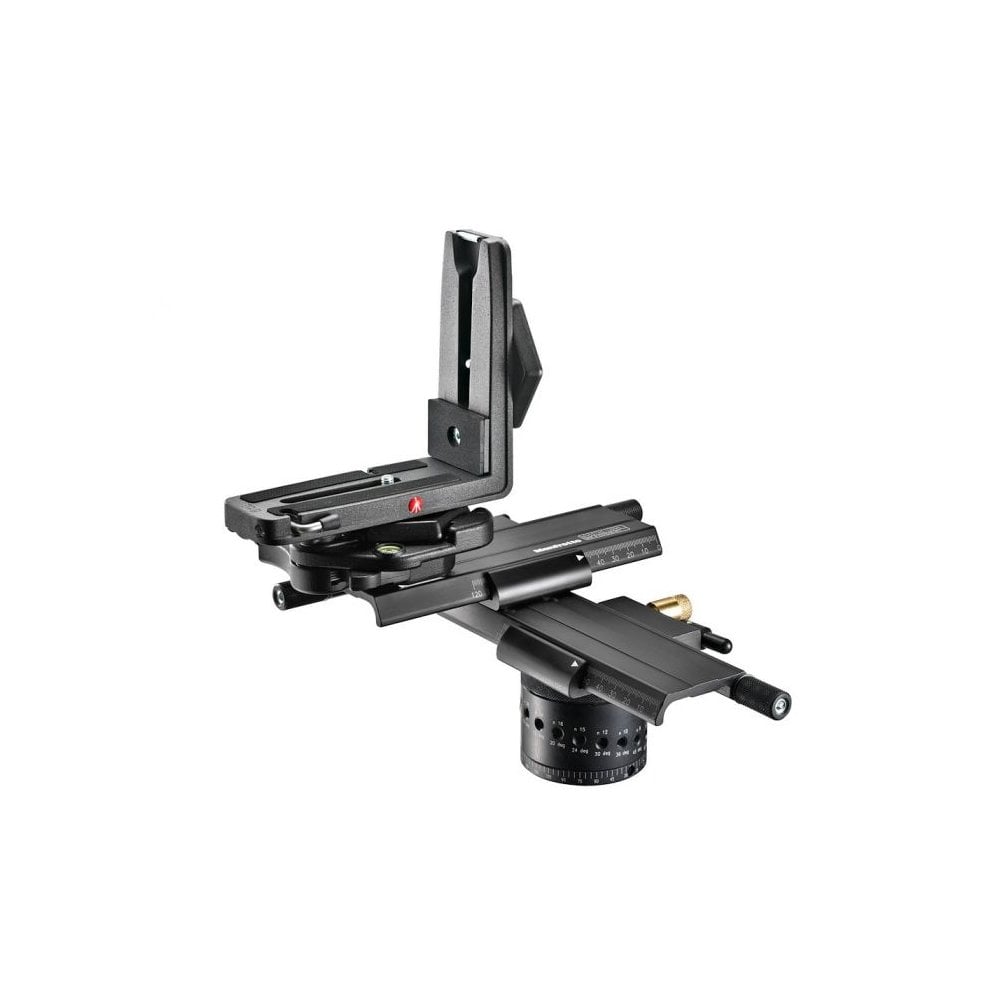

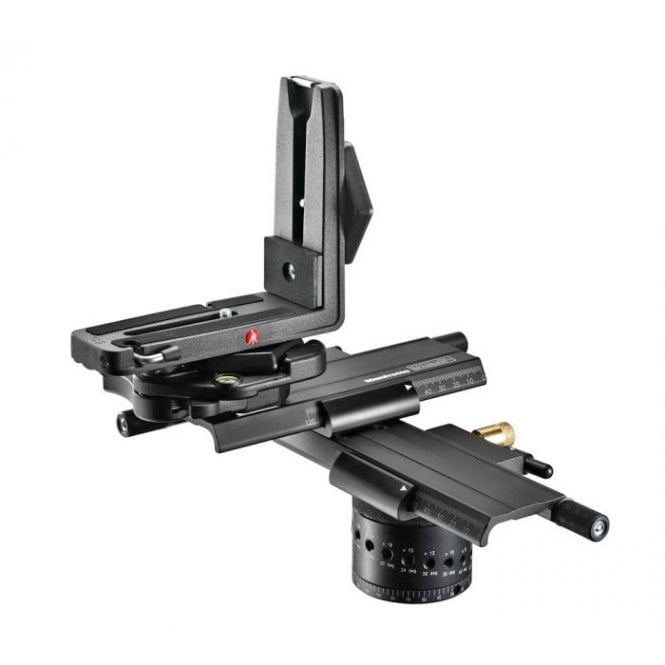

Manfrotto MAN-MH057A5-LONG Virtual Reality and Pan Pro Head

Manfrotto MAN-MH057A5-LONG (MAN-MH057A5LONG, MAN MH057A5-LONG, MH057A5-LONG, MAN/MH057A5-LONG) Virtual Reality and Pan Pro Head.

The MH057A5-LONG advanced panoramic photography head is built around the 300N pan rotation unit, with sliding plates for nodal point positioning and an elbow bracket to allow the camera to be mounted in either portrait or landscape orientation. It incorporates precise geared movements of the two sliding plates used to locate the camera over the panoramic axis of rotation, adding greater accuracy to nodal point positioning. The micro-positioning plates provide extremely precise fingertip adjustment via a gear drive system; a release button disengages the gear drive to facilitate rapid movement of the plates when required. The plates are also longer than those of the 303 head, which helps to make this head suitable for use with larger traditional or digital SLR cameras equipped with standard or wide angle lenses, or for medium format cameras.

• Weight: 1.988 kg
• Top Attachment: 1/4″ screw
• Safety Payload Weight: 5 kg
• Base Diameter: 64 mm
• Front Tilt: -90° / 0°
• Material: Aluminium
• Plate Type: quick release - with 1/4-20″ and 3/8″ screws
• Colour: Black
• Easy Link: No
• Head Type: Other
• Independent Pan Lock: yes
• Lateral Tilt: -90° / 0°
• Maximum Working Temperature: 70 °C
• Minimum Working Temperature: -30 °C
• Pan Drag: NONE
• Panoramic Rotation: 360 °
• Quick Release: Yes
• Tilt Drag: NONE
• Working Height: 28 cm

In The Box

• MAN-MH057A5-LONG Virtual Reality and Pan Pro Head.
