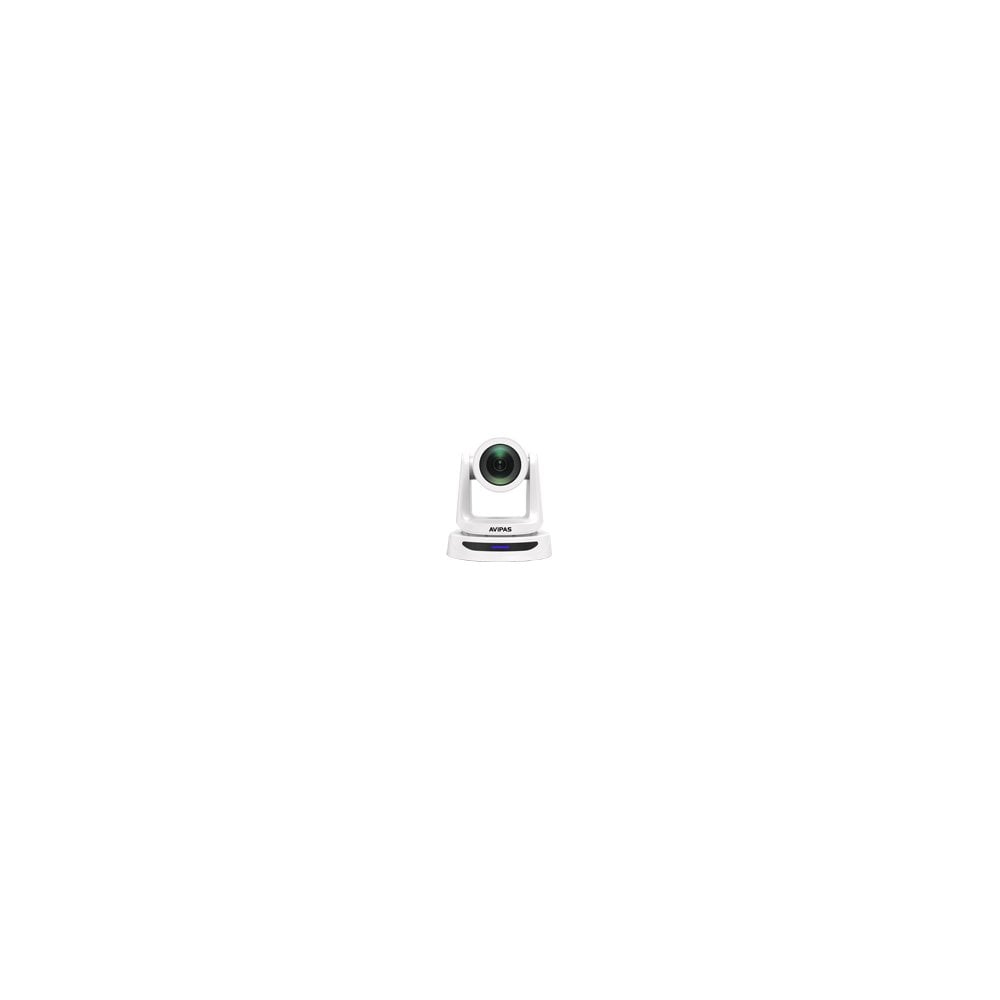

Swit Avipas AV-2000W | 20x NDI/HDMI PTZ Camera with PoE+&Audio, white

Avipas AV-2000W | 20x NDI/HDMI PTZ Camera with PoE+&Audio, white

AV 2000W AV2000W AV-2000W AV/2000W

The AviPas AV-2000G is a 20X NDI|Hx & HDMI PTZ camera with PoE supported. It features a 1/2.8" 2.4MP high quality CMOS sensor to capture video images in 1080p up to 60fps. The camera has simultaneous HDMI and NDI|Hx /IP (shared same RJ45 port) outputs, and with NDI|Hx that allows you streaming video and audio with low -latency on your network. The camera is suitable for various A/V applications such as video conferencing, Esports, medical training, educational fields and houses of worship.

The 20x optical zoom, F1.5~F3.0 lens with advanced 2D/3D noise reduction & a minimum illumination of 0.1 Lux, AV-2000G can provide more clarity and vivid image even in low-light conditions. The camera supports PoE (Power over Ethernet) which delivers power to camera , control signal and video out over a single Cat5/6 cable, this makes simplified the installation and cost effective. The camera also supports H.264/H.265 compression and IP streaming in multiple protocols: such as RTSP, RTMP/RTMPS, SRT & HTTP. The camera also has a 3.5mm audio Line -in with AAC audio encoding for NDI|Hx/IP streaming out. AV-2020G can be controlled by included IR remote control, LAN over RJ45 port (IP control/config) or RS232 via serial commands (RS232 compatible with RS485/shared with RS485).

Specifications

Camera Specifications:

• Image Sensor: 1/2.8" CMOS sensor, effective pixel: 2.4MP
• Shutter Speed: 1/30s ~ 1/10000s (auto /manual)
• Minimum Illumination: 0.1Lux @ (F1.5, AGC on)
• Gain: 0db-30db
• White Balance: Manual, Auto, ATW (auto tracking white balance) Indoor, Outdoor, One Push mode
• Image Flip: Horizontal /Vertical image flip
• Image freeze supported

Video Format:

• HDMI: 1920x1080P 60/59.94/50/30/29.97/25/24/23.98, 1920x1080I 60/59.94/50, 1280x720P 60/59.94/50/30/29.97/25

RJ45:

• 1920x1080@3~30 / 1280x720@3~30 / 1024x576 @3~30 (Main stream), 1280x720@3~30 / 1024x576@3~30 / 640x360 @3~30 (Sub stream)

Video Outputs:

• 1x HDMI
• 1x LAN (RJ45)

Audio Inout/Output:

• 1x 3.5mm Line-in audio jack female
• Embedded audio for IP/NDI|Hx streaming only

Control interface:

• 1x RS232 input (8pin Mini DIN female, compatible and shared with RS485)
• 1x RS232 loop output (8pin Mini DIN female)
• 1x LAN (RJ45)

IP Specifications:

• Network speed: 1000M
• Video encode: H.264 (default)/H.265
• Video bit rate: 1024Kbps~16384Kbps

Lens Specifications:

• Zoom Ratio: 20x (Optical), 2x (Digital)
• Focal Length 4.9 ~ 98mm; Apeture: F1.5~ F3.0
• Horizontal Angle of View: 60° ~ 3.23°
• Focus: Auto /Manual
• Preset positions: 128 via RS232(RS485) serial or IP; 10 via IR remote control
• Rotation angle: Pan: ±170°; Tilt Rotation: -90°~+90°
• Rotation Speed: Pan: 0°~120°/s; Tilt: 0°~80°/s

General Specifications:

• Power Requirements: DC 12V/ PoE (IEEE 802.3af)
• Power Consumption: 10W
• Operating Temperature: 20°F~80°F
• Storage Temperature: 20°F~95°F
• Dimensions: 6.6" x 6.6" x 7.1"
• Net Weight: 3.1 LB

What's in the box

• 1x AV-2000G
• 1x AC power adapter
• 1x Power cord
• 1x RS232 cable(8-pin Mini DIN Male to DB-9 Female)
• 1x IR Remote control
• 1x User manual
