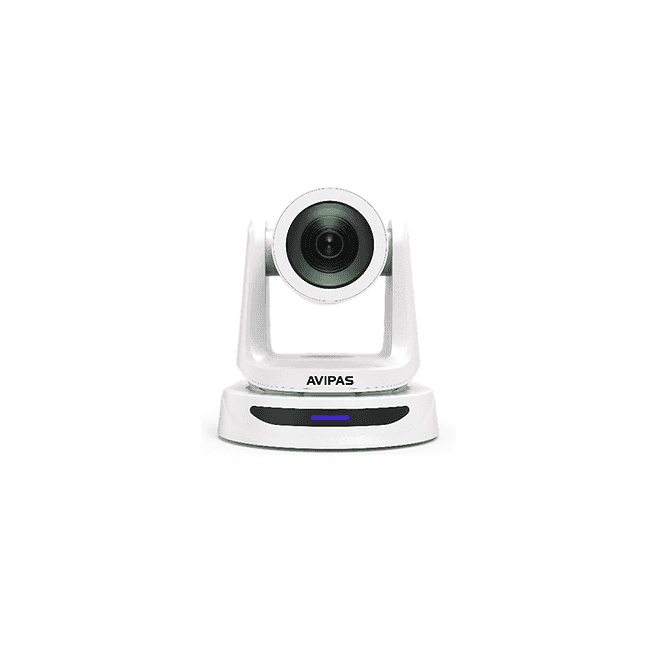

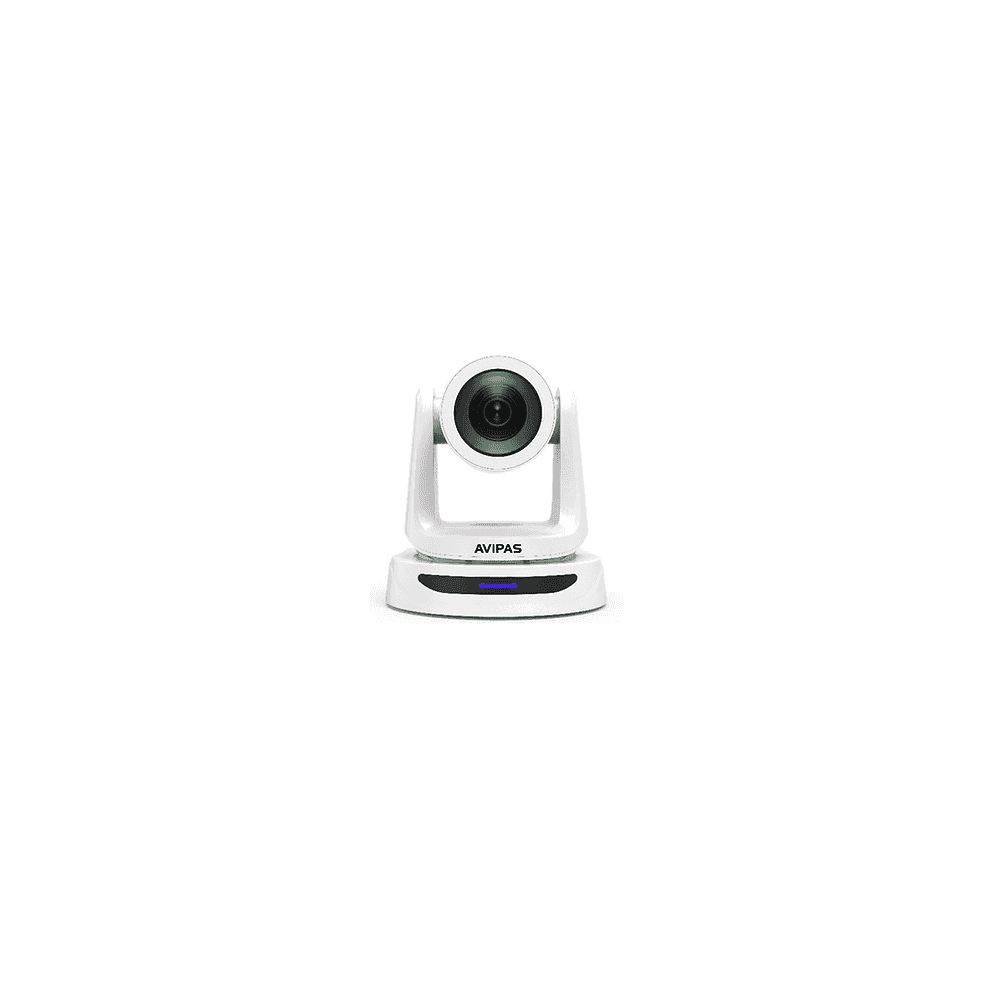

Swit Avipas AV-2010W | 20x USB2.0 PTZ Camera with PoE+&Audio, white

code: AV-2010W

967,41 €
Secure yours with a deposit of
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Features

Adopts advanced ISP, 1/2.8-inch 2.1MP sensor, providing full HD video resolution.
High-quality 20x optical zoom, 2x digital zoom lens with 60-degree field of view.
IP, USB video output interface, compatible with different applications.
Advanced focusing algorithm: fast and precise focusing performance during movement.
Smooth PTZ mechanism, accurate pan tilt motor control.
Up to 128 presets available.
White balance/ Exposure/ Focus/ Iris can be adjusted automatically or manually.
Support PoE+: one single CAT5/6 for video, control and power, highly efficient video encoding.
Support line-in function, AAC and LPCM audio encoding.
Support VISCA, PELCO-P, PELCO-D, ONVIF and VISCA over IP control protocol; IP VISCA over both TCP and UDP.
Support RS232 daisy chain, up to 7 cameras under VISCA protocol.
Support RS232/UVC control.
Standard UVC1.1 protocol, seamlessly compatible with all major video conferencing software and platforms.
Support upside-down/ceiling installation (1/4" -20 universal attachment needed), H/V flip.

Description
Specification
Included In Box
Reviews
(0)

Avipas AV-2010W | 20x USB2.0 PTZ Camera with PoE+&Audio, white

AV 2010W AV2010W AV-2010W AV/2010W

AV-2010 20x USB PTZ camera features a 1/2.8-inch 2.1MP sensor, with advanced ISP, providing full HD video. 20x optical zoom, 2x digital zoom lens with 60-degree field of view. Resolution is up to 1920×1080 with a frame rate up to 30fps. It supports H.264 and H.265 video compression with low network delay. AV-2010 has IP and USB 2.0 video output interface, compatible with any video conferencing/streaming software. It also supports line in function, AAC and LPCM audio encoding (embedded audio though IP stream only). Control protocol options include VISCA, PELCO-P, PELCO-D, ONVIF, and VISCA over IP (over both TCP and UDP).

Specifications

Video Format

USB: 1920*1080P30; 1280*720P30; 1024*576P30; 960*540P30; 720*576P30; 640*480P30; 640*360P30; 352*288P30; 320*240P30
RJ45: 1920*1080@3~30 / 1280*720@3~30 / 1024*576 @3~30 (Main stream); 1280*720@3~30 / 1024*576@3~30 / 640*360 @3~30 (Sub stream)
Video Interface: RJ45, USB2.0
Sensor: 1/2.8” 2.1MP CMOS sensor
Zoom: f4.9~98mm, F1.5~3.0 View angle: 60°(Far)~3.23°(Near)
Rotation Angle; Pan: -170° ~ +170° Tilt: -90° ~ +90°
Rotation Speed; Pan: 0°~120°/s Tilt: 0°~80°/s
Preset remote controller: 10; RS232: 128;
Accuracy: 0.1°
Control Port: RS232, RJ45 (VISCA over IP), USB2.0(UVC1.1)
Network Speed: 1000M
Video encode: H.264/H.265 (default: H.264)
Bit Rate Control: Variable Bit Rate, Constant Bit Rate
Video Bit Rate: 1024Kbps~16384Kbps
IP Protocol: TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif, VISCA over IP, NTP
POE+: Support
Daisy Chain: RS232 serial daisy chain (up to 7 units under VISCA protocol)
Minimum Lux: 0.1 Lux (F1.5)
White Balance: Auto/Indoor/Outdoor/Manual/AWT/PUSH
Exposure: Auto/Manual/Bright/Shutter/Iris
Focus: Auto/Manual
Iris: Auto/Manual
Electric Shutter: Auto/Manual
Gamma: Support
WDR: Support
BLC: Support
2D/3D Noise Reduction: Support
Anti-Flicker: OFF/50Hz/60Hz
H/V Flip: Support
Input Voltage: DC12V/ POE+
Dimension: 6.6*6.6*7.1inch (167.5*168*180.5mm)
Net Weight: 3.1lb (1.4kg)

What's in the box

1x Camera
1x Power Adapter
1x Power Cable
1x RS232 Control Cable
1x USB2.0 Cable
1x Remote Controller
1x User Manual

Be the first to review Avipas AV-2010W | 20x USB2.0 PTZ Camera with PoE+&Audio, white. Write a review ›
