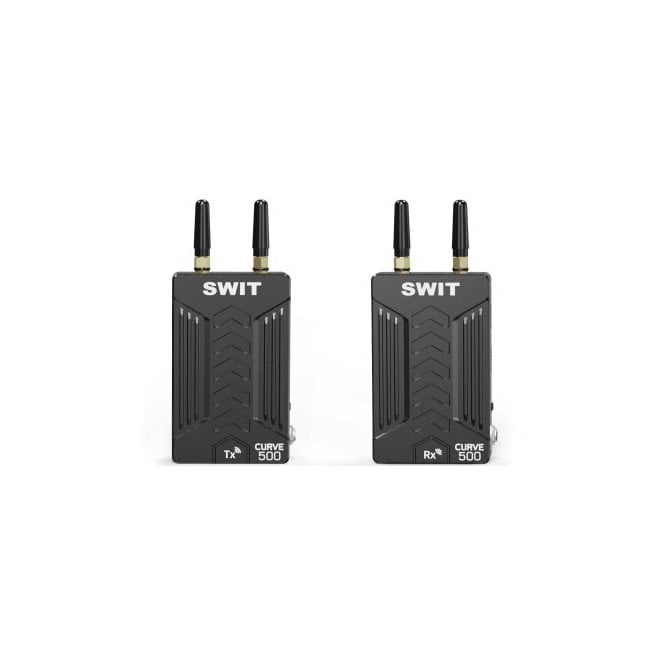

Swit CURVE500 500feet(150m) new generation professional HDMI Wireless FHD Video Transmission.

SWIT CURVE500 500feet(150m) new generation professional HDMI Wireless FHD Video Transmission.

CURVE 500 CURVE500 CURVE-500 CURVE/500

Swit's CURVE 500 uses professional KUWI wireless video technology - the same technology as the flagship SWIT FLOW series.

KUWI Wireless Technology - HDMI 500ft / 150m, CURVE 500 wireless system is based on SWIT's latest KUWI wireless technology, (This does not use WIFI, for a stronger and more professional connection than other affordable wireless products), 5.1-5.9GHz license free bands, DFS compliant, supporting HDMI 1080p60 transmission at up to 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play.

Input & Output -

• The Transmitter (Tx) has 2 omni antennas supporting
• 1x HDMI input
• 1x HDMI loop output
• The Receiver (Rx) has 2 omni antennas supporting
• 2x HDMI output

HDMI formats:

• 1080p60, 1080p59.94, 1080p50
• 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
• 1080psf23.98, 1080psf24
• 1080i60, 1080i59.94, 1080i50;
• 720p60, 720p59.94, 720p50

500ft/150m Transmission - Strong Wall-cross Performance - CURVE500 wireless supports 500ft/150m (Line-of-sight) reliable wireless transmission, and features strong wall-cross performance due to both RF optimisation and image quality optimisation, keeping video transmission without data loss or crash compared to regular 5GHz wireless transmitters.

* Supports HDMI embedded audio (CH1&2) transmission.

Auto Frequency Channel Switching - DFS Compliant - CURVE 500 works between 5.1-5.9GHz, with built-in wireless scanner which detects the wireless condition of all frequencies, automatically jumping to the best wireless channel to keep you a reliable connection while meeting Ofcom's DFS requirements for use in the UK.

Built-in NP-F battery plate - Both Transmitter and Receiver have a built-in NP-F battery plate and support DC 7-17V pole-tap input. The power consumption is: Transmitter 7.5W, Receiver: 7W.

USB Firmware Update - CURVE 500 wireless provides a Micro USB port, supporting OTG USB Firmware update for future updates.

Stable Connection at Worst Wireless Environment - CURVE500 adopts professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.

Key Features -

• KUWI 5.1-5.9GHz Wireless Technology
• DFS Compliant
• HDMI input and loop output
• 500ft/150m (Line-of-Sight) distance
• Strong performance through walls
• 2-ch HDMI audio transmission
• Auto detects the best wireless channel and swaps between them seamlessly.
• Supports 3-4 pairs working in one location
• Strong double encryption for a secure connection

Specifications

Input / Output:

• Transmitter:
• HDMI 1.3 input ×1
• HDMI 1.3 loop output ×1
• Receiver: HDMI 1.3 output ×2

Video Formats:

• HDMI:
• 1080p60, 1080p59.94, 1080p50
• 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
• 1080psf23.98, 1080psf24
• 1080i60, 1080i59.94, 1080i50;
• 720p60, 720p59.94, 720p50
• Wireless Frequency: 5.17GHz-5.69GHz and 5.75GHz-5.83GHz
• RF Modules: OFDM 16QAM, 64QAM, QPSK, BPSK
• RF Power: 125mW
• Transmission Distance: 500 feet / 150 meters (Line of sight)

General

• Input voltage:
• Transmitter: DC 7-17V
• Receiver: DC 7-17V
• Power Consumption:
• Transmitter: 7.5W
• Receiver: 7W
• Dimension(w/o antenna)
• Transmitter: 114.18×69.55×28 (mm)
• Receiver: 114.18×69.55×28 (mm)
• Net weight:
• Transmitter 198.6g
• Receiver 201g
• Working Temperature: 0°C -+40°C

What's in the box

• 1x CURVE 500 Receiver
• 1x CURVE 500 Transmitter
• 1x D-tap to lockable pole-tap cable
• 1x AC-DC Adaptor
