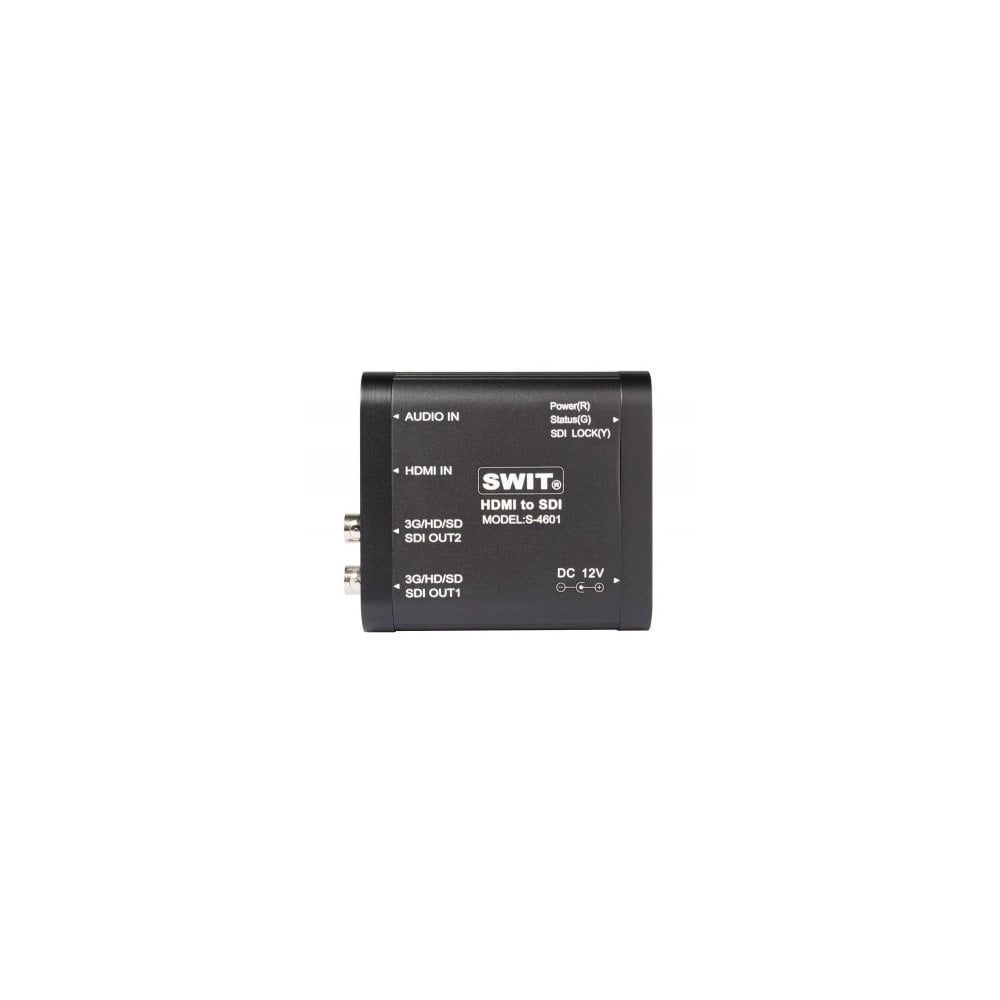

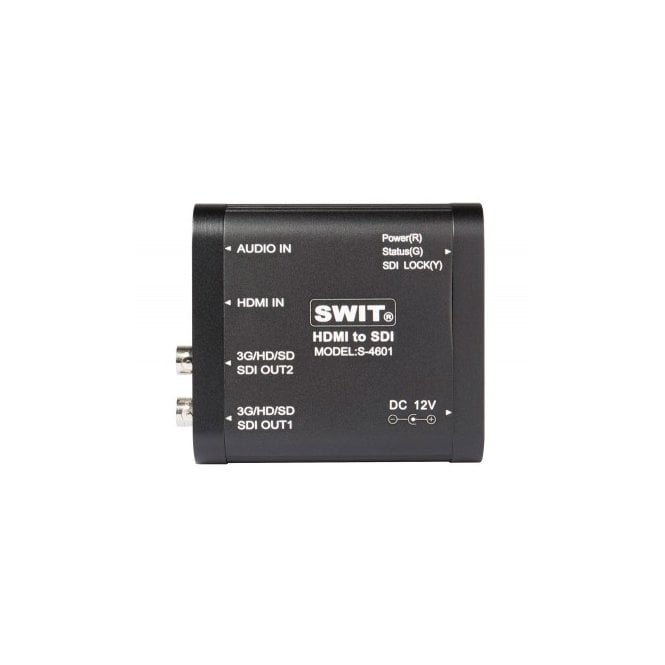

Swit S-4601 Heavy Duty HDMI to 3G-SDI converter

SWIT S-4601 Heavy Duty HDMI to 3G-SDI converter

S 4601 S4601 S-4601 S/4601

The Swit S-4601 is a portable HDMI to 3G/HD/SD-SDI converter. It supports HDMI audio embedded input and passes it through to the SDI output, The Converter also incorporates a 3.5mm socket input for Headphone monitoring.

S-4601 is a heavy-duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing, and for mounting future accessories (battery mount, etc).

S-4601 is a mini converter for HDMI to SDI conversion, widely used on broadcasting the HDMI video source, supports up to 1080p 50/60 HDMI converted to 3Gb/s SDI.

Input and Output:

• 1× HDMI Type-A input
• 2× 3G/HD/SD-SDI output (Re clocked)
• 1× 3.5mm audio input

Embed HDMI/Analog audio into SDI output

The HDMI audio ch-1 & ch-2 can be embedded into SDI to output. And when there’s analogue audio input via 3.5mm socket, the stereo analogue audio can be embedded into SDI to output. The audio supports a 48kHz sample rate.

Status Indicators

S-4601 provides 3 LED indicators, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

The mini converter is powered by a pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy-Duty Housing

The S-4601 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

S-4601 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on the wall and binding the BNC/HDMI cables.

Key Features:

• Portable HDMI to 3G/HD/SD-SDI
• 1 HDMI input, 2 SDI output
• 1 analogue audio (3.5mm) input
• Embed HDMI audio to SDI output
• Embed analogue audio (3.5mm) to SDI output
• Power/input/output status indicator
• Heavy-duty housing
• Bottom screw threads for installing
