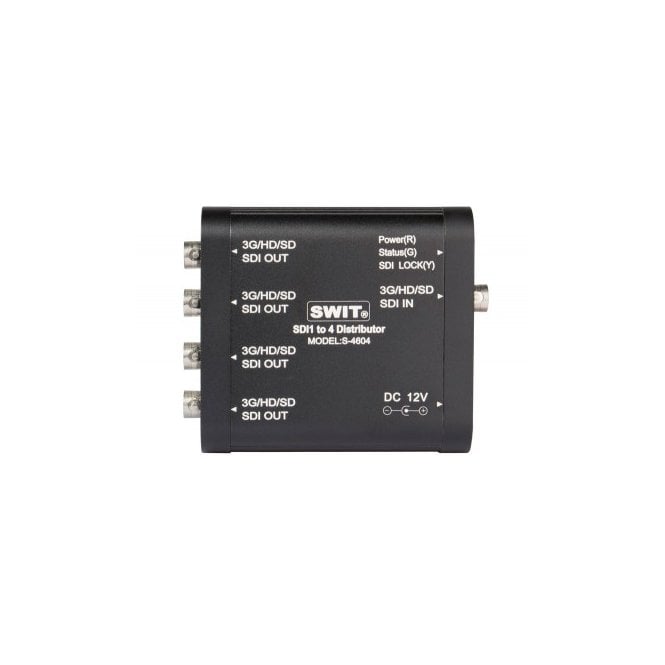

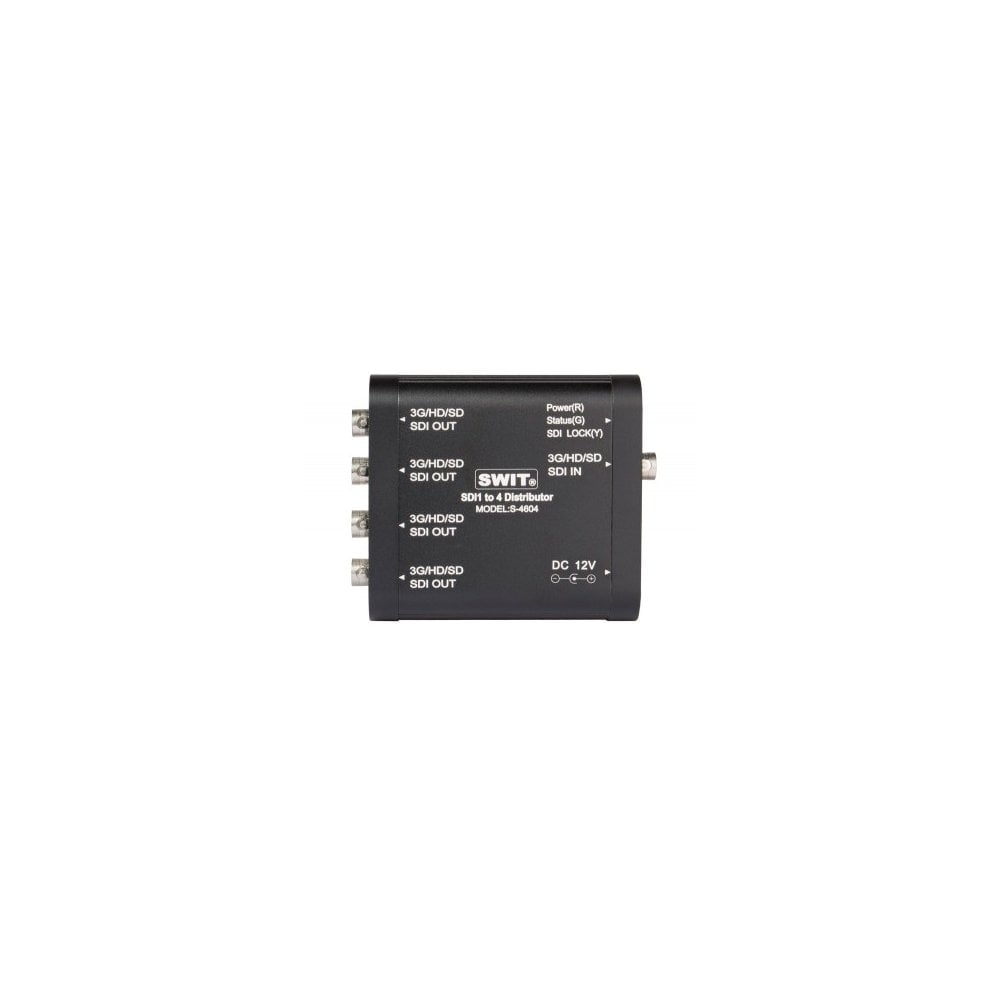

Swit's S-4604 is a portable 3G/HD/SD-SDI distributor. It supports 1 SDI input, and 4 SDI output, with embedded audio.

The S-4604 features Power/ Input/ Output status indicators and is housed in heavy-duty housing. Various screw threads offer convenient installation and versatility for other accessories.

S-4604 is a mini converter for distributing 1 SDI input to 4 SDI output, supports up to 3Gb/s SDI, with all embedded information, widely used on broadcast projects.

Input and Output

• 1× 3G/HD/SD-SDI input
• 4× 3G/HD/SD-SDI output (Re clocked)

SDI Amplifier

The S-4604 features low SDI jitter and SDI re-clocking so that you can use several S-4604 to prolong the SDI transmission distance.

Status Indicators

S-4604 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

The mini converter is powered by a pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy-Duty Housing

The S-4604 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

S-4604 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on the wall and binding the BNC cables.

Key Features:

• Portable 3G/HD/SD-SDI 1 to 4 distributor
• 1 SDI input, 4 SDI output
• SDI re-clocking and amplifier
• Power/input/output status indicator
• Pole-tap 6-18V DC power input
• Heavy-duty aluminium housing
• Bottom screw threads for installing

Specifications

S-4604

Input

• BNC×1
• 3G/HD/SD-SDI input

Output

• BNC ×4
• 3G/HD/SD-SDI loop output

Video Format

SDI

• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

HDMI

• 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 480i / 576i

• Audio: 48KHz Sync
• Power: ≤2W
• Working Voltage: DC 6-18V
• Working Environment: Temperature: 0°C-+70°C, Humidity:10%-90%
• Dimensions: 105×84×29 mm
• Net weight: 240g

What's in the box

• Installation plate
• AC-DC Adaptor
