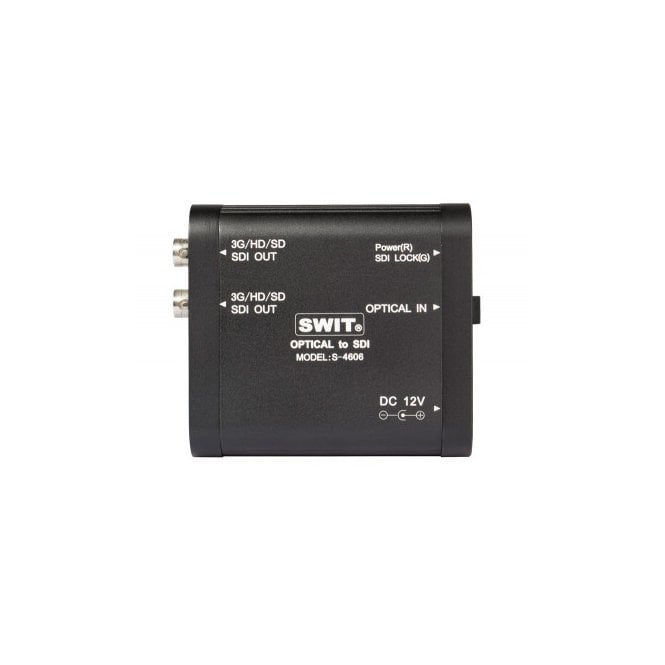

Swit S-4606 Heavy Duty Optical fibre to 3G-SDI converter

SWIT S-4606 Heavy Duty Optical fibre to 3G-SDI converter

 S 4606 S4606 S-4606 S/4606

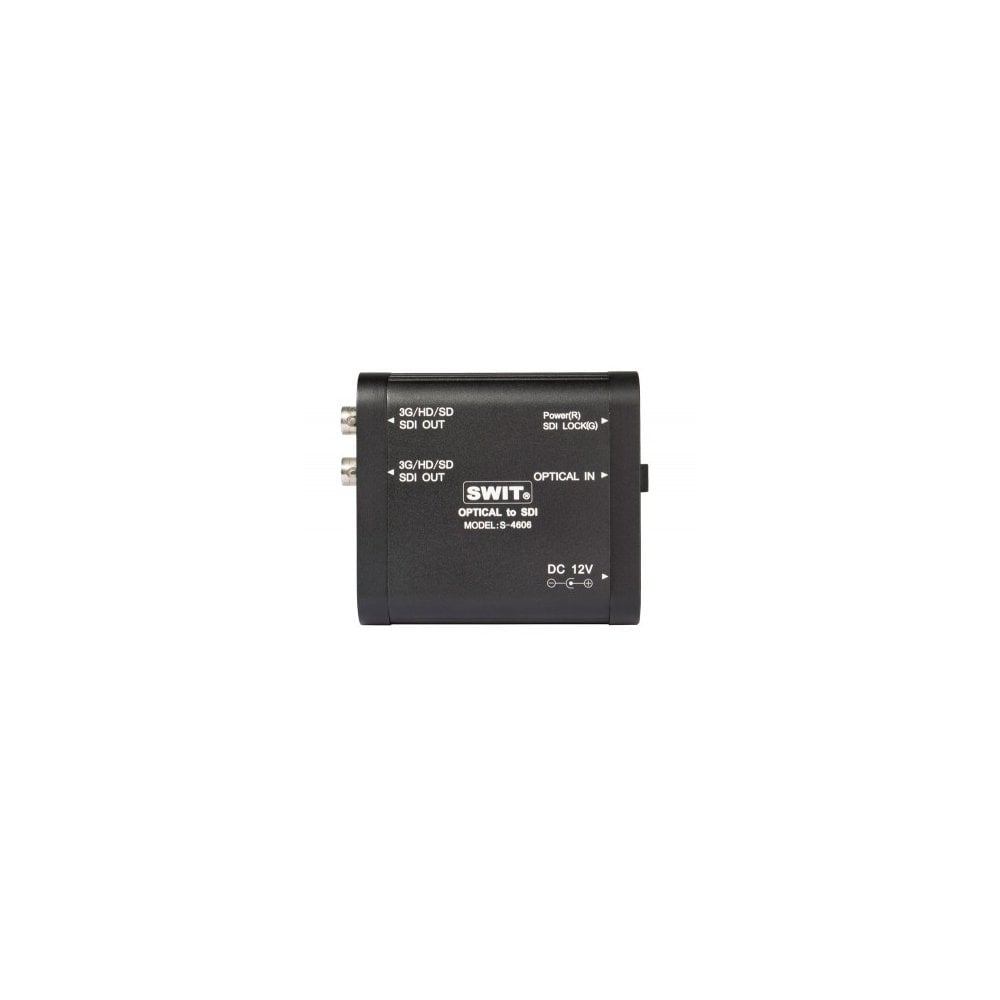

Swit's S-4606 is a portable optical fibre to 3G/HD/SD-SDI converter. The single-mode fibre ensures maximum 20km of reliable transmission and hot-swap of optical module. Screw threads in the bottom of the S-4606 allow for convenient installation whilst a heavy-duty housing design protects BNC connectors.

Portable Mini Converter

S-4606 is a mini converter for LC single-mode Optical Fibre to SDI conversion, widely used on transmitting SDI in a long distance.

Input and Output

S-4606 offers:

• 1×LC Optical Fibre input
• 2× 3G/HD/SD-SDI output

Encoder and Decoder

The S-4606 works as a decoder to convert Optical fibre back to SDI, and you can use SWIT S-4605 (SDI to Optical fibre encoder) together, to transmit SDI via fibre up to 20km reliable distance.

Status Indicators

S-4606 provides 2 LED indictors, to check if the power is connected, and if the output SDI is recognized.

Power Supply

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy-Duty Housing

The S-4606 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

S-4606 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC cables and optical fibres.

Key Features:

• Portable Optical Fibre to 3G/HD/SD-SDI Converter
• 1 Fibre input, 2 SDI outputs
• Single-mode Optical Fibre, LC connector
• Max 20km reliable transmission
• Support hot swap of the optical module
• Power / SDI input status indicator
• Pole-tap 6-18V DC power input
• Heavy-duty aluminium housing
• Bottom screw threads for installing

Specifications

S-4606

Input

• LC ×1 Optical fibre input

Output

• BNC ×1
• 3G/HD/SD-SDI loop output

Video Format

SDI

• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

• Power: ≤3W
• Working Voltage: DC 6-18V
• Working Environment: Temperature: 0°C-+70°C, Humidity:10%-90%
• Dimensions: 98×84×29 mm
• Net weight: 220g

What's in the box

• Installation plate
• AC-DC Adaptor
