Swit S-4609 SDI Audio De-Embedder

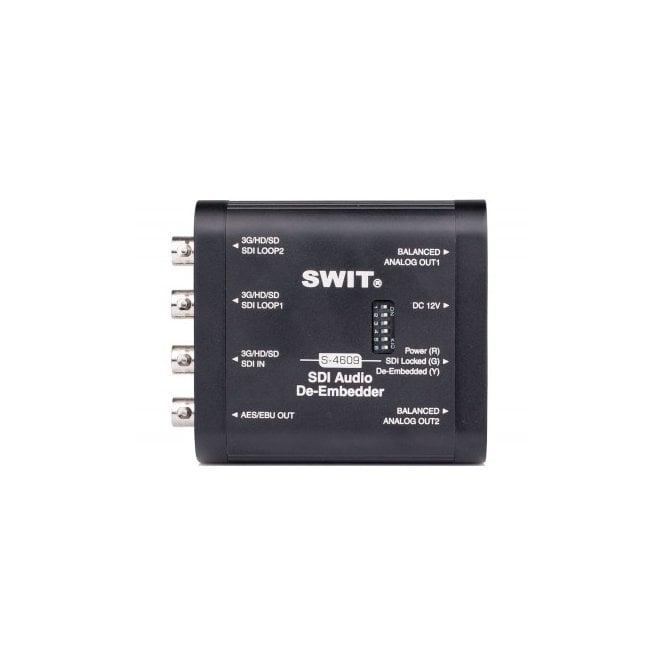

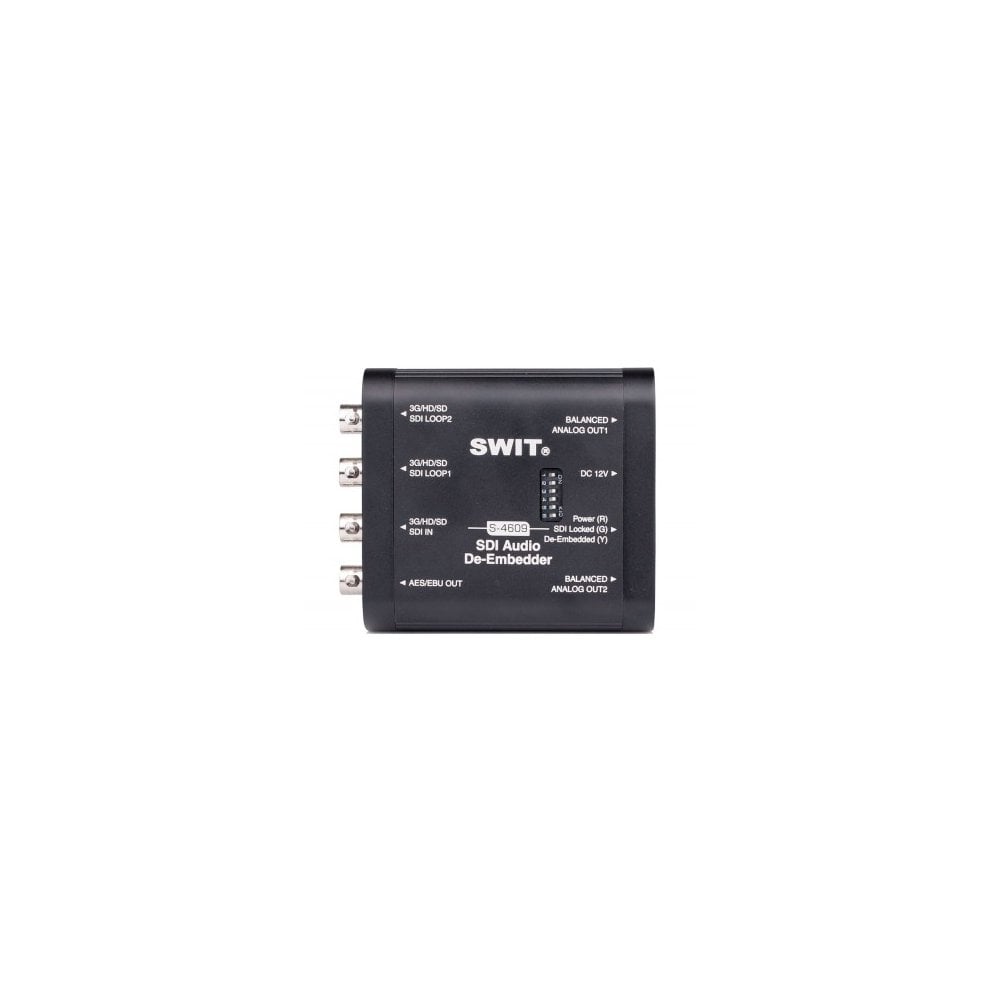

SWIT S-4609 SDI Audio De-Embedder

S-4609 S-4609 S-4609 S-4609

De-embed Channel Selection By 6 Switchers

S-4609 can de-embedded any 2-ch audio from SDI first 8-ch embedded audios. User can select the channel number to be de-embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4609 provides the description of the 6 switchers for reference.

Status Indicators : Power / Input / Output

S-4609 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if de-embedded audio is deliver

Power Supply

Pole-tap DC input

The mini converter is powered by pole-tap DC socket.

The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4609 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.

Installation

S-4609 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.

Standard Package

S-4609 standard package includes:

• 1x AC-DC power adaptor
• 1x Install plate

Key Features:

• Portable SDI to Audio De-embedder
• 3G/HD/SD-SDI supported
• De-embed any 2-ch from first 8-ch audio
• Output AES/EBU audio
• Output 6.35mm balanced audio
• Provide 2x SDI loop output
• Power/input/output status indicator
• Pole-tap 6-18V DC power input
• Heavy duty aluminium housing
• Bottom screw threads for installing

Specifications

3G/HD/SD-SDI loop output

Video Format

SDI

• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

 HDMI

• 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 480i / 576i

Audio: 48KHz Sync

Power: ≤2W

Working Voltage: DC 6-18V

Working Environment: Temperature: 0°C-+70°C, Humidity:10%-90%

Dimensions: 105×84×29 mm

Net weight: 240g

What's in the box

• SWIT S-4609 SDI Audio De-Embedder
• Installation plate
• AC-DC Adaptor
