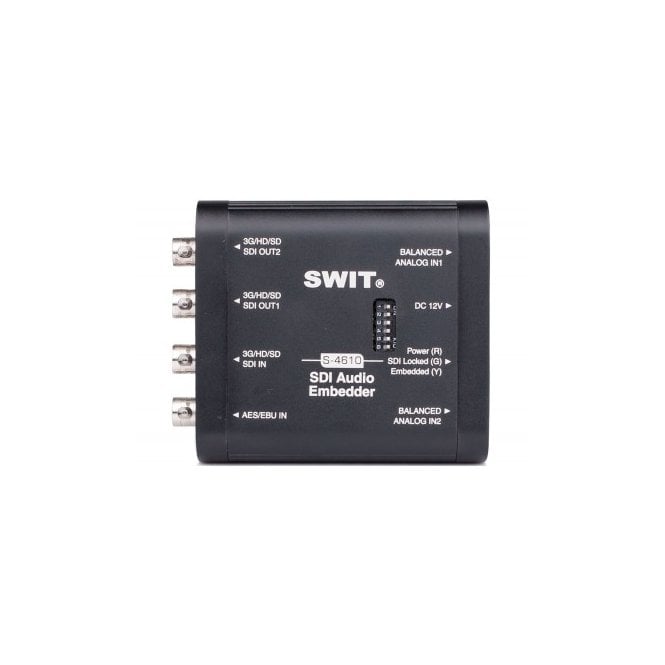

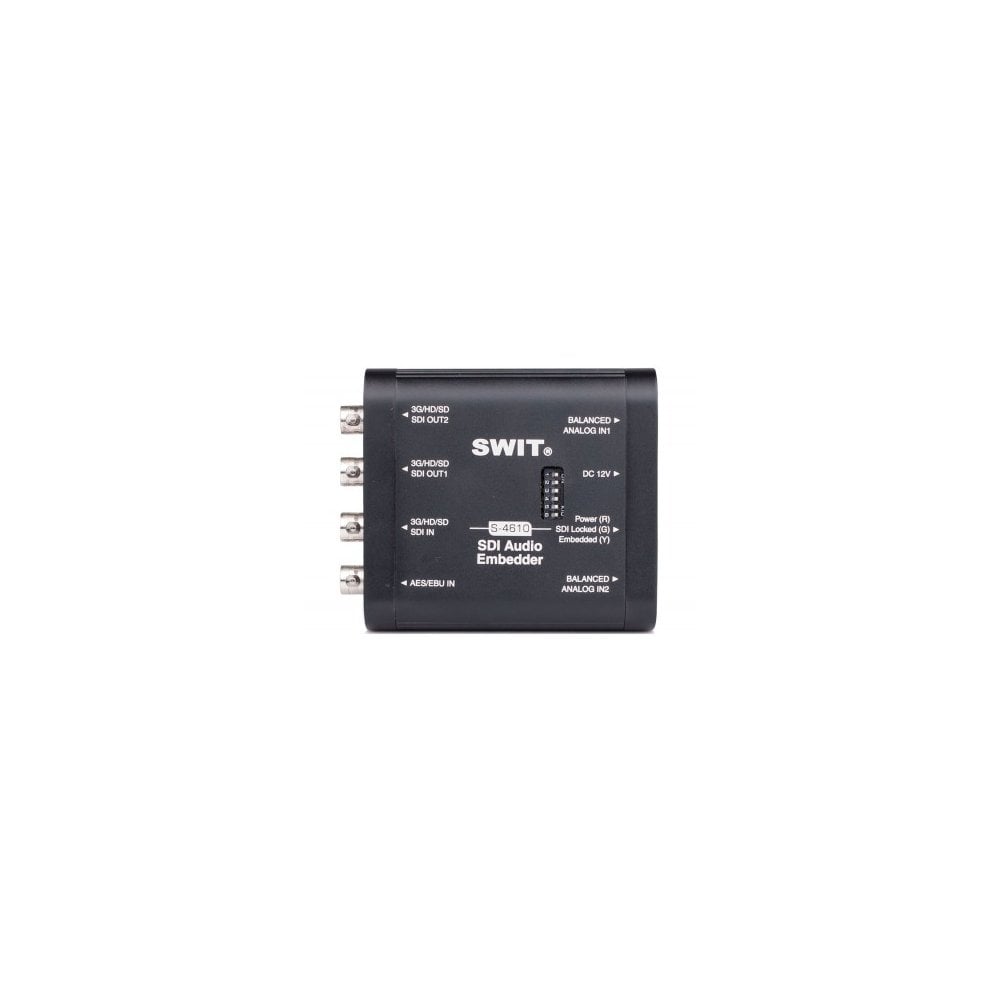

Swit S-4610 SDI Audio Embedder

SWIT S-4610 SDI Audio Embedder

S 4610 S4610 S-4610 S/4610

Portable Audio to SDI Embedder

S-4610 is a portable mini SDI audio embedder that supports digital audio or analog audio to embed, and SDI up to 3Gb/s. It’s widely used in broadcast field production and professional audio/video conversion and transmission.

Input and Output

S-4610 provides:

• 1x 3G/HD/SD-SDI input
• 1x AES/EBU digital audio input (2-ch)
• 2x 6.35mm analog audio input (balanced)
• 2x New embedded 3G/HD/SD-SDI output

(If both AES/EBU audio and analog audio is connected, only AES/EBU audio can be embedded)

Embed Channel Selection By 6 Switchers

The S-4610 can embed 2-ch audio to any 2 positions of SDI first 8 audio channels. User can select the channel number to be embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4610 provides the description of the 6 switchers for reference.

Status Indicators : Power / Input / Output

The S-4610 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if new embedded SDI outputs.

Power Supply

Pole-tap DC input

The mini converter is powered by pole-tap DC socket.

The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4610 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.

Installation

S-4610 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.

Standard Package

S-4610 standard package includes:

• 1x AC-DC power adaptor
• 1x Install plate

Key Features:

• 3G/HD/SD-SDI supported
• Embed audio to any 2 channels of SDI first 8-ch positions
• AES/EBU audio input and embed
• 6.35mm balanced audio input and embed
• 2x SDI output with new embedded audio
• Power/input/output status indicator
• Pole-tap 6-18V DC power input
• Heavy duty aluminium housing
• Bottom screw threads for installing

Specifications

S-4610
Input

• BNC×1
• BNC ×1
• 6.35mm ×2
• 3G/HD/SD-SDI input
• AES/EBU digital audio input ×1
• Analog audio (balanced) input ×2

Output

• BNC ×2 3G/HD/SD-SDI embedded output ×2

Video Format
SDI

• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

Audio Formats:

• Digital audio: Type: AES/EBU
• Output level: 5Vp-p
• Sample frequency: 48KHz
• Analog audio: Max output level: +24dbu
• Bandwidth: 20Hz-20KHz
• Power: ≤3W
• Working Voltage: DC 6-18V
• Working Environment: Temperature: 0°C-+70°C, Humidity:10%-90%
• Dimensions: 98×84×29 mm
• Net weight: 235g

What's in the box

• 1 x AC-DC power adaptor
• 1 x Install plate
