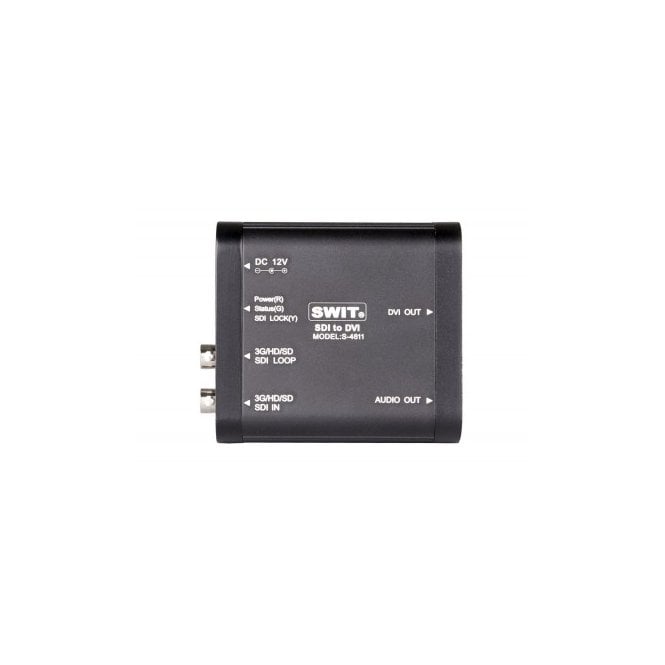

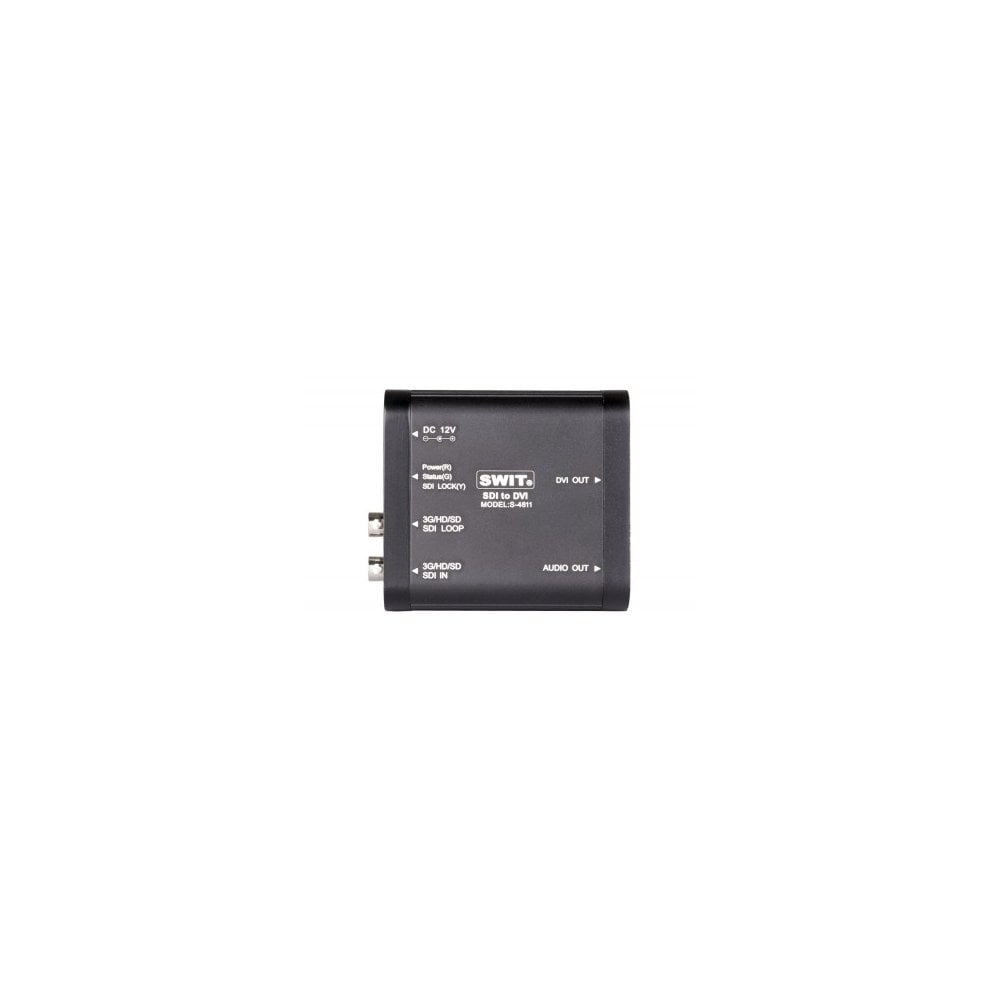

Swit S-4611 Heavy Duty SDI to DVI converter

SWIT S-4611 Heavy Duty SDI to DVI converter

S 4611 S4611 S-4611 S/4611

Portable 3G/HD/SD-SDI to DVI Converter

Portable Mini Converter

S-4611 is a mini converter for SDI to DVI conversion, (DVI-D, 18+1 connector), which can be widely used to display up to 3Gb/s broadcast SDI video on DVI monitor, televisions, LED board or projectors.

Input and Output

S-4611 offers:

• 1× 3G/HD/SD-SDI input
• 1× 3G/HD/SD-SDI loop output (Re clocked)
• 1× DVI-D output
• 1× 3.5mm audio output

(The SDI to DVI supports the same format conversion only.)

Embedded Audio output

The SDI embedded audio ch-1 & ch-2 can be converted to analog audio and output via 3.5mm headphone socket, supports 48kHz sample rate.

Status Indicators

Power / Input / Output

S-4611 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

Pole-tap DC input

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4611 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

S-4611 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/DVI cables.

Specifications

S-4611

Input

• BNC×1 3G/HD/SD-SDI input

Output

• BNC ×1
• DVI-D ×1
• 3.5mm ×1
• 3G/HD/SD-SDI loop output
• Converted Optical fibre output
• SDI audio output

Video Format

SDI

• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

DVI

• 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 480i / 576i

•  Audio: 48KHz Sync
• Power: ≤3W
• Working Voltage: DC 6-18V
• Working Environment: Temperature: 0°C-+70°C, Humidity:10%-90%
• Dimensions: 98×84×29 mm
• Net weight: 209g

What's in the box

• Installation plate
• AC-DC Adaptor
