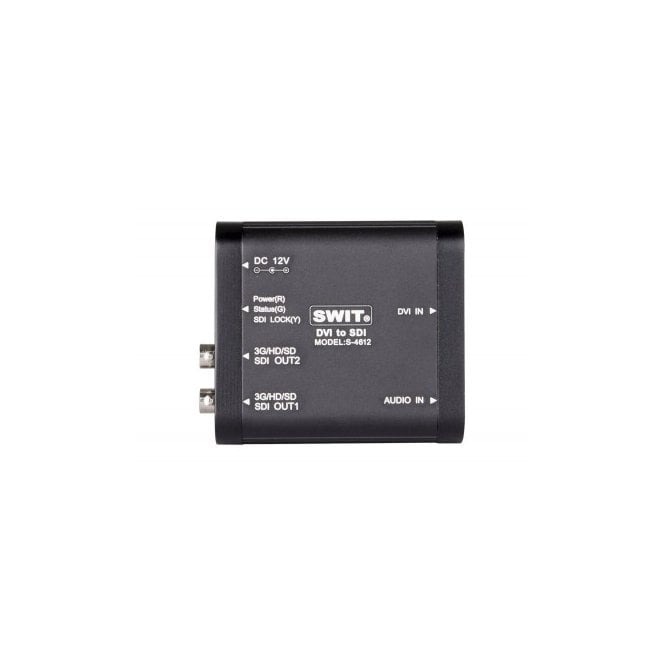

Swit S-4612 Heavy Duty DVI to SDI converter

SWIT S-4612 Heavy Duty DVI to SDI converter

S 4612 S4612 S-4612 S/4612

Portable DVI to 3G/HD/SD-SDI Converter

Portable Mini Converter

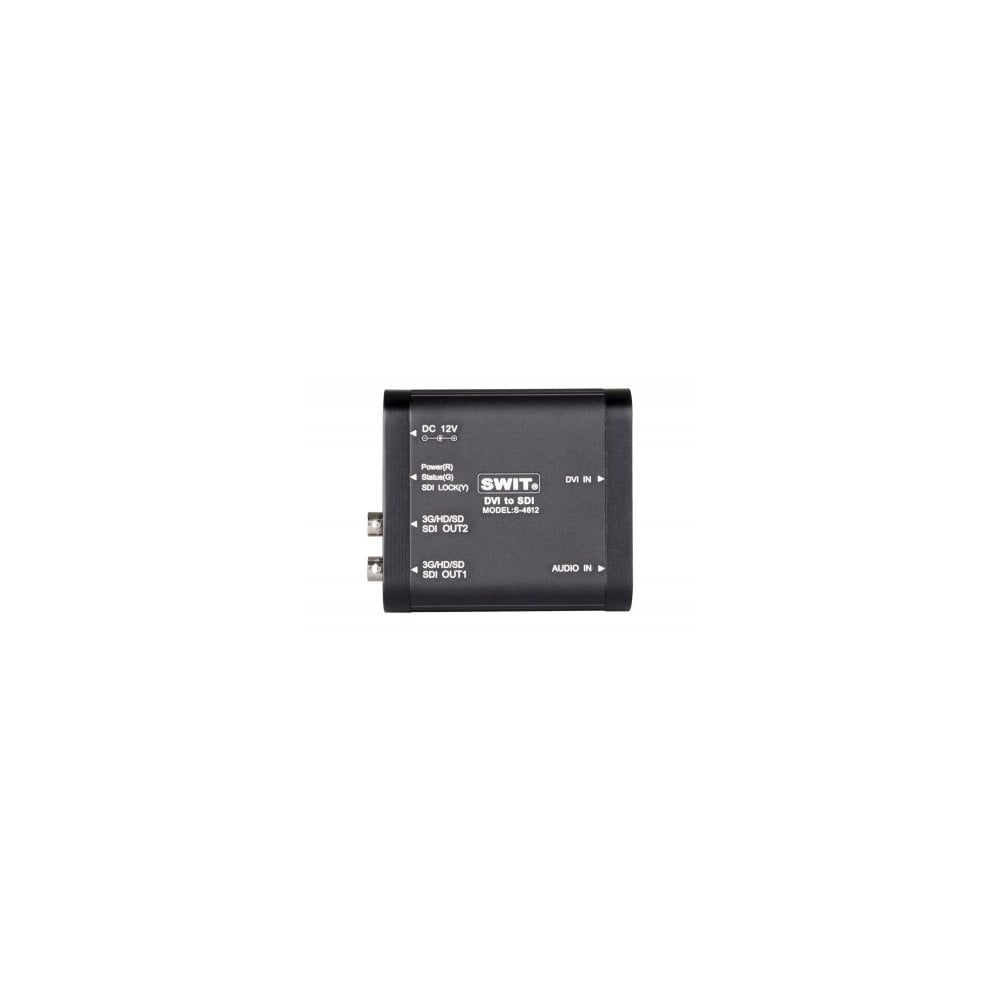

S-4612 is a mini converter for DVI to SDI conversion, (DVI-D, 18+1 connector), which can be widely used for DVI video source to deliver and broadcast, support up to 1080p 50/60 format DVI to convert to SDI.

Input and Output

S-4612 offers:

• 1× DVI-D (18+1) input
• 2× 3G/HD/SD-SDI output (Reclocked)
• 1× 3.5mm audio input

(The DVI to SDI supports the same format conversion only.)

S-4612 features low SDI jitter and SDI re-clocking so that you can use the longest SDI cable lengths and maintain pristine quality images.

Embed Analog audio into SDI output

S-4612 support 3.5mm analog audio input, and can be embedded into SDI to output. The audio supports 48kHz sample rate.

Status Indicators

Power / Input / Output

S-4612 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply

Pole-tap DC input

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4612 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation

S-4612 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/DVI cables.

Specifications

S-4612

Input

• DVI-D ×1
• 3.5mm×1
• DVI input
• Analog audio input

Output

• BNC ×1
• 3G/HD/SD-SDI loop output

Video Format

SDI

• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

DVI

• 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 480i / 576i

• Audio: 48KHz Sync
• Power: ≤3W
• Working Voltage: DC 6-18V
• Working Environment: Temperature: 0°C-+70°C, Humidity:10%-90%
• Dimensions: 98×84×29 mm
• Net weight: 207g

What's in the box

• Installation plate
• AC-DC Adaptor
