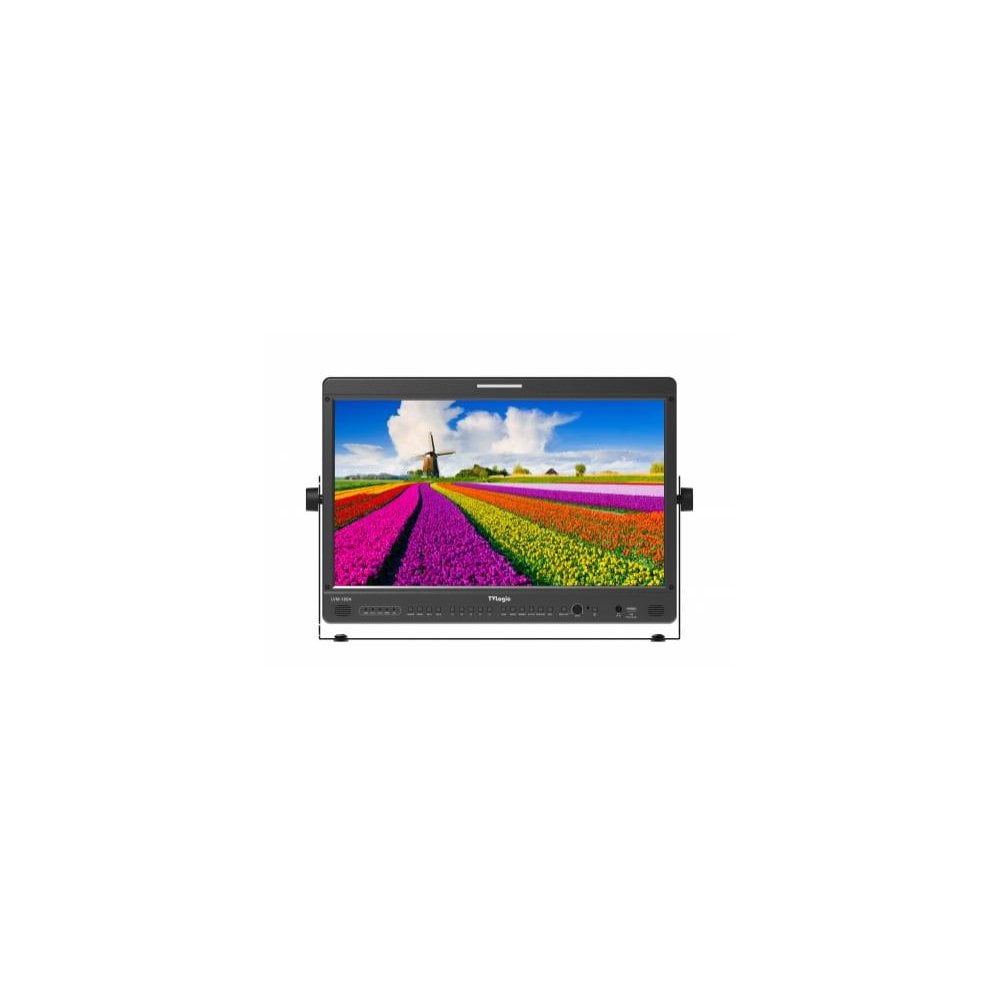

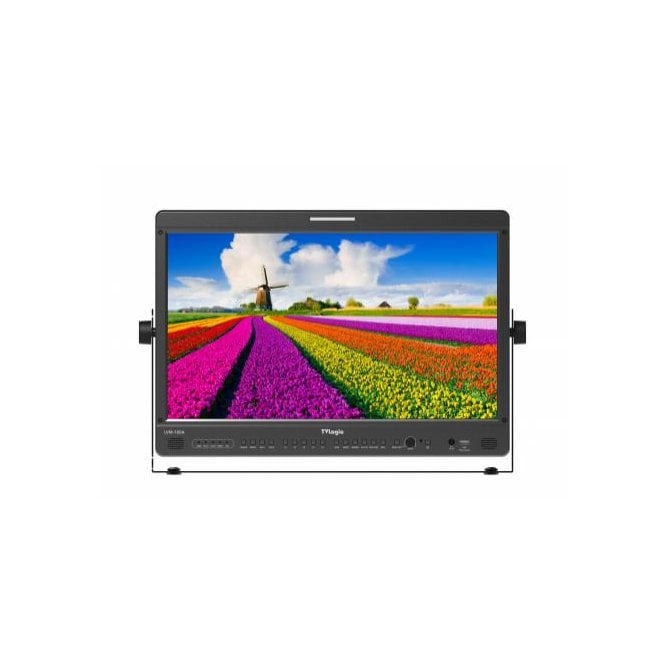

TV Logic LVM-180A 18.5 Inch Wide Viewing LCD Multi Format Monitor

TV Logic LVM-180A (LVM/180A, LVM_180A, LVM180A, LVM180A, lvm-180a) 18.5 Inch Wide Viewing LCD Multi Format Monitor

The LVM-180A is 18.5” model with a 18.5 inch IPS LCD panel with 1920×1080 native resolution, 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.

LCD

• Size: 18.5″
• Resolution: 1920 x 1080 (16 : 9)

Pixel Pitch

• Color Depth: 16.7M
• Viewing Angle: 178°(H) / 178°(V)
• Luminance: 500cd/m2
• Contrast Ratio: 1,000:1
• Display Area: 408(H) x 203(V) mm

Input

• CVBS Input: BNC (x1) / NTSC, PAL
• SDI Input: BNC (x2) (A,B channel)
• HDMI Input: HDMI (x1) / up to 1080p
• DVI Input: DVI (x1) / up to 1080p
• Audio Input: Embedded Audio / Analog Stereo (Phone Jack)
• RS-422 Input: RJ-45

Output

• CVBS Output: BNC (x1) (loop through out)
• SDI Output: BNC (x1) (SDI A/B channel selected output)
• Audio Output: Analog Stereo (Phone Jack) / Internal Speaker

(Mixed Mono)

• RS-422 Output: RJ-45

Analog Input Signal Formats

• CVBS (Composite): NTSC/ PAL , 1.0Vp-p (With Sync)

SDI Input Signal Formats

• SMPTE 424M (3G-SDI): 1080p (60/59.94/50)

SMPTE 292 (HD-SDI):

• 1080p (30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
• 720p (60/59.94/50) , 1080i
• (23.98/29.97/30/50/59.94/60)

• SMPTE 344M (SD-SDI): 480p, 576p
• SMPTE 259M (SD-SDI): 480i, 576i
• 2K Format: 2048 x 1080 (23.98p/23.98PsF/24/24PsF/)

HDMI/DVI Input Signal Formats

HDMI/DVI (CEA-861):

• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 720p (60/59.94/50)

• PC (VESA): 800x600, 1024x768, 1280x1024, 1920x1080

General

• Power: DC 12V / AC 100 ~240V (50~60Hz)
• Power Consumption (Approx.): 60Watts
• Operating: 0°C to 40°C (32°F to 104°F )
• Storage Temperature: -20°C to 60°C (-4°F to 140°F )

Main body Dimensions

• Main body: 442.5 x 309.2 x 65.4 (mm) / 17.42 x 12.17 x 2.57 (inch)
• With Stand: 483.5 x 332.9 x 137.5 (mm) / 19.03 x 13.10 x 5.41 (inch)
• Weight: 7Kg / 15.43 Ibs

In the Box

• TV Logic LVM-180A 18.5" Wide Viewing LCD Multi Format Monitor
• AC Power Cable (1)
• Stand (1)
