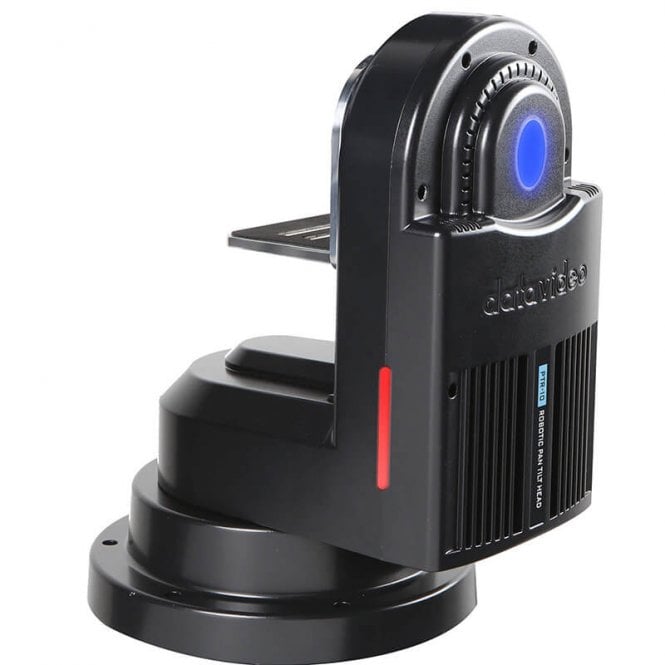

Datavideo Ptr10 Pan Tilt Head

Datavideo Ptr10 Pan Tilt Head(DATA-PTR-10MKII)

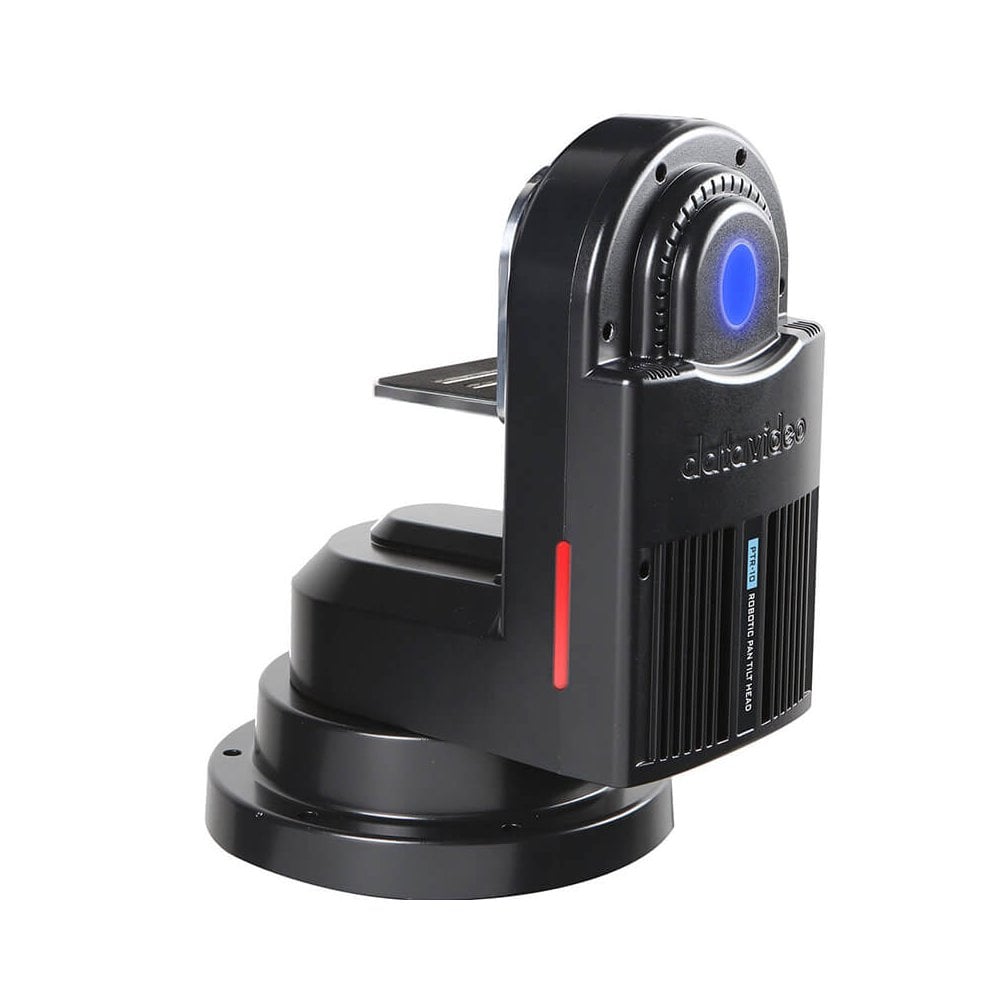

Datavideo’s brand-new PTR-10 MARK II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a robotic camera

A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.

The PTR-10 MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, and compatible with DVIP over Ethernet and other integration solutions such as Crestron.

Multiple Signal Interface

PTR-10 MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, DVIP, Tally, and LANC.

Cost-Effective

PTR-10 MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.

Wide Range of Compatible Cameras Supported

The PTR-10 MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

Light Weight, Strong, and Sturdy design

With a weight of 3.4 kg, PTR-10 MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

Diversified Controller Options

Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, and RMC-300A will fit your need.

Support your cameras up to 4 Kg weight on PTR-10 MARK II

Super strong design. PTR-10 MARK II is built from aluminum alloy, making it a very sturdy base for your camera.

Support 50 preset camera shooting positions

When your video production requires many different angles and positions, 50 preset camera positions will meet your needs.

Using the IR remote allows you to call up to 50 presets at any time.

When combined with the RMC-300A universal remote controller, the 14 physical buttons can be called at any time.

When using the RMC-180 MARK II remote control, there are 4 physical buttons to call.

PoE++ Supported

You do not need any battery mount on your camera when using PTR-10 MARK II. The PoE++ is building in the PTR-10 MARK II; No extra battery or power needed when operating

Built-in Tally light

With the big tally light in the front to show the status of your camera.

D-tap connector for DC output

The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power.

This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.

Selectable DC voltage output for different cameras (7.4 / 8.4 / 10 / 12V )

Multiple Signal Interface

PTR-10 MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, DVIP, Tally, and LANC.

Video Interface HDMI x1

SDI x1

Video Output 2160p 29.97/25

1080p 59.94/50

1080i 59.94/50

720p 59.94/50

Control Unit RMC-180

RMC-300A

VISCA Protocol Controller

IP Control

IR remote

Panning / Tilting Range Pan: 340°

Tilt: ±45°

Panning / Tilting Speed Pan: 0.2~15° /Sec

Tilt: 0.1~10° /Sec

Preset Pan/Tilt position 50

Control Distance Sony VISCA

DVIP

Control Protocal Sony VISCA

DVIP

Control Input RS-422

DVIP

Maximum Load 4 KG Max

Control Output RS-232

RS-422

BX-Lens

LanC

Power Requirement DC 12V~ 18V, 3A (Without Camera)

DC 12V~ 18V, 5A (With Camera)

Power Supply DC 12/10/8.4/7.4V, 24W Max

Operating Temp. Range 0~40 C°

Operating Humidity Range 10~80%

Storage Temp. Range -10~60C°

Storage Humidity Range 5~80%

Weight 3.4 kg

Dimension (LxWxH) 230 x 190 x 300 mm

In the Box

1 x PTR-10
