Libec SVF-7Pro Full HD 7in Viewfinder

Libec SVF-7Pro Full HD 7in Viewfinder(SVF-7Pro, SVF7Pro, SVF 7Pro)

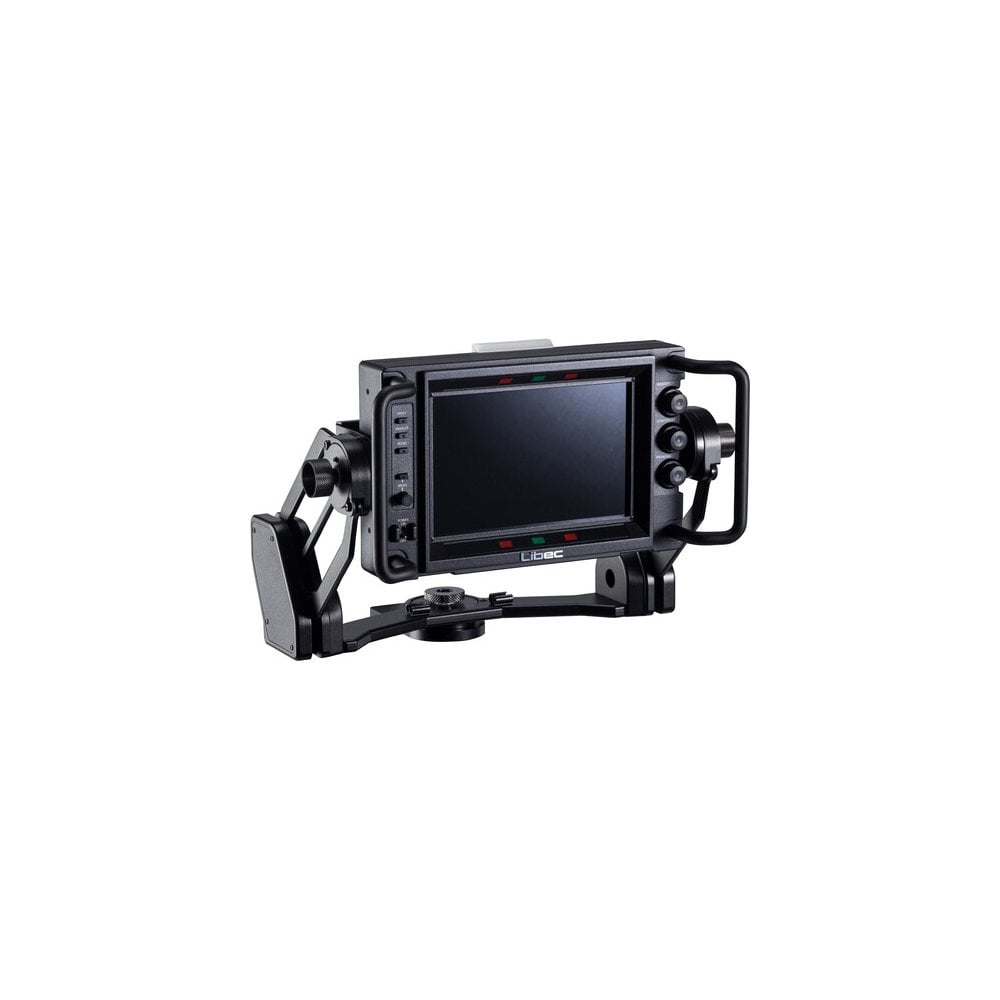

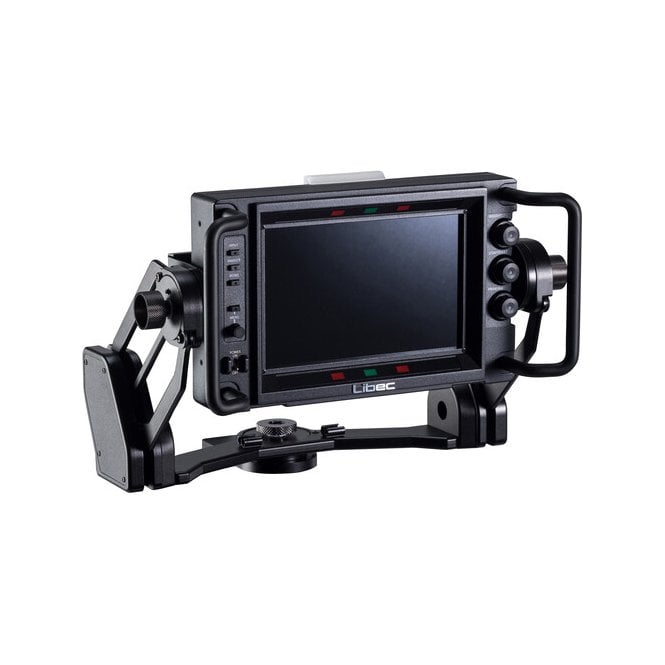

The SVF-7Pro 7" HD Viewfinder from Libec is a professional color display designed for use with studio-style video cameras. This 7" viewfinder features a 1920 x 1080 panel, both BNC and HDMI video inputs and outputs, a BNC return port, red and green tally inputs with adjustable brightness, and a 20-pin camera input port.

Display

Color/Monochrome Color

Display Size 7.0" / 17.8 cm

Active Area 5.9 x 3.3" / 151 x 85 mm

Screen Resolution 1920 x 1080

Viewing Angle Horizontal: 170°

Vertical: 170°

Touchscreen No

Maximum Brightness 350 nits / cd/m2

Bit Depth / Color Support 6-Bit+FRC (16.7 Million Colors)

Pixels Per Inch (ppi) 315 ppi

I/O

Video I/O 1 x BNC Input

1 x BNC Output

1 x BNC Monitor Output

1 x HDMI Input

1 x HDMI Output

Video Format SDI (10-Bit 4:2:2 YUV)

1080p: 59.94/50/29.97/25/24/23.98

1080i: 59.94/50

1080PsF: 29.97/25/24/23.98

720p: 59.94/50

System Connection HR12 20-Pin

Power I/O 1 x XLR 4-Pin (12 VDC) Input

Other I/O 2 x BNC (Tally) Input

Power

Power Consumption 12 W

Environmental

Operating Humidity 0 to 90% (Non-Condensing)

Operating Temperature 32 to 72°F / 0 to 40°C

Storage Temperature 50 to 113°F / 10 to 45°C

General

Dimensions 9.1 x 5.7 x 1.9" / 232 x 146 x 47 mm

Weight 2.6 lb / 1.2 kg

In the Box

Libec SVF-7Pro 7" HD Viewfinder for Studio Cameras
