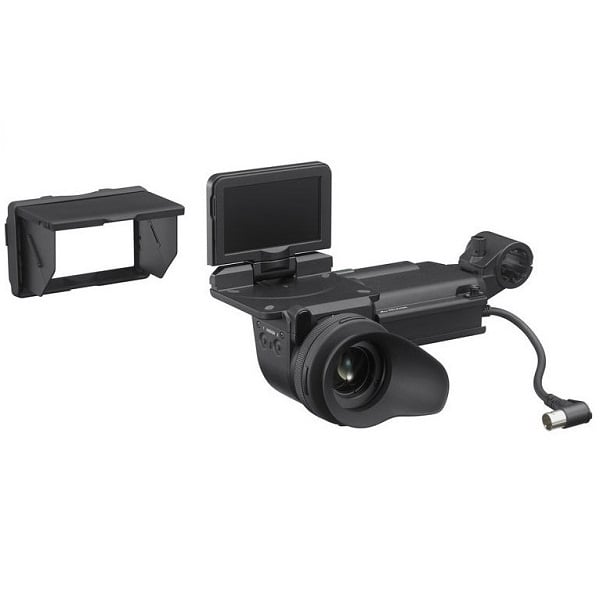

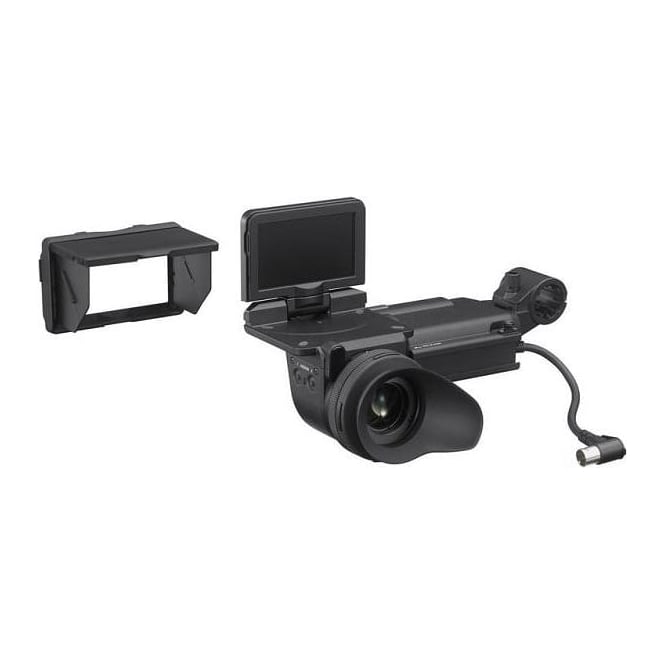

Sony 0.7" FHD OLED Viewfinder with 3.5" Display

Sony HDVF-EL30//U (HDVF/EL30//U, HDVF_EL30//U, HDVF EL30//U) 0.7" FHD OLED Viewfinder with 3.5" Display

The Sony HDVF-EL30 0.7" Full HD Color OLED Viewfinder with 3.5" Display is used with a wide range of Sony cameras that feature the 20-pin round HDVF viewfinder interface. It features quick pixel response for tracking and focusing on moving objects. The use of OLED (Organic Light Emitting Diode) display technology helps deliver excellent contrast and a wide dynamic range.

The viewfinder's specially developed optical loupe provides a high eye-point, which allows operators to see a wider area of the picture if they stand back from the eyepiece. The image displayed on the viewfinder can be downscaled via the menu or assignable button to avoid vignetting.

The HDVF-EL30 is equipped with an additional 3.5" qHD (960 x 540) sub-LCD display for direct monitoring over a longer distance. Using both sub-LCD panel and OLED display offers full operational flexibility, enabling a camera assistant to monitor the sub-LCD display while the camera operator uses the OLED display. A tally indicator and the camera number can be displayed on the sub-LCD panel. The included flexible foldable hood for the sub-LCD reduces reflections caused by bright sunlight.

Compatibility

• HD Color Camera: HDC-4300, HDC-2500 series, HSC-300R/100R series
• Disc Camcorder: PDW-680/700/750/850/F800
• Solid State Memory Camcorder: PMW-500, PXW-X400/X500
• Digital Motion Picture Camera: F65

OLED Display Technology

• Quick motion picture response and production of images with minimal blurring and ghosting
• Performance for shooting on location is not influenced by changes in environmental temperature
• OLED panel allows a pure black screen to be displayed
• Thanks to high-peak brightness, the panel is capable of displaying brilliance of sparkling objects such as twinkling of stars or glittering glass
• Self-luminescent OLED panel allows for excellent color reproduction across the entire spectrum in virtually any shade or brightness

3.5" qHD (960 x 540) Sub-LCD Panel

• Helpful for direct monitoring over a longer distance
• Using both sub-LCD panel and OLED display offers full operational flexibility, enabling a camera assistant to monitor the sub-LCD
• display while the camera operator uses the OLED display
• The included flexible foldable hood for the sub-LCD facilitates outside shooting in direct sunlight and reduces reflections

Focus Assist Function

• Peaking Function: Edge enhancement can be performed in the horizontal/vertical direction on the entire screen; coloring the edge enhancement part can improve visibility
• Peaking Plus Function: Edge enhancement can be performed on the object that is specified using a color, an area selected, or both
• Image Magnification (Focus Mag) Function: Displays a part of the image expanded to twice the size, allowing you to focus with ease

Assignable Switch and Presets

• Brightness and contrast can be pre-set for selection through an assignable switch or a menu operation
• Two assignable switches are provided for the storage of frequently used functions

Tally Lamps

• The viewfinder has three tally lamps (red, green, and yellow), which light up in response to tally signals

High-Performance Loupe

• The four-group seven-element lens (including aspheric lens) delivers pictures with low distortion and allows adjustment over a wide range of visibility
• The separately available close-up lens (Ø37) enables shifting the visibility ratio to the far-sighted side

OLED Display

• Display Size: 0.7" (1.8 cm)
• Display Area (HxV): 0.6 x 0.4" (1.5 x 1.0 cm), 16:9 Aspect ratio
• Diopter Range: For Loupe: -4.0 to +2.0 m-1
• Brightness: 200 cd/m2 (Typical)
• Effective Pixels: 1920 (H) x 1080 (V) x 3 (RGB)
• Colour Temperature: D65

Sub-LCD Display

• Display Size & Type: 3.5" (8.9 cm) TFT transmissive LCD panel
• Display Area (H × V):  3.1 x 1.5" (7.7 x 4.3 cm), 16:9 Aspect ratio
• Brightness: 300 cd/m2 (Typical)
• Effective Pixels: 960 (H) × 540 (V) x 3 (RGB)
• Colour Temperature: D65

Video

• Digital Scanning Frequency (H / V):
• 1080 Scanning Lines:
• 23.98PsF: 26.97 kHz / 47.95 Hz
• 24PsF: 27.00 kHz / 48 Hz
• 25PsF: 28.13 kHz / 50 Hz
• 29.97PsF: 33.72 kHz / 59.94 Hz
• 50i: 28.13 kHz / 50 Hz
• 59.94i: 33.72 kHz / 59.94 Hz

720 Scanning Lines:

• 50P: 36.00 kHz / 50 Hz
• 59.94P: 44.96 kHz / 59.94 Hz

Input Signals:

• Y: 1.0 Vpp, Synchronous, 75 Ohm terminated
• Pb, Pr: 0.7 Vpp, Asynchronous, 75 Ohm terminated

General

• Camera Connector: Round type 20-pin
• Power Supply: 10.5 to 17.0 VDC (Supplied by the camera)
• Power Consumption: 7.3 W
• Temperature: Storage: -4 to 140°F (-20 to 60°C), Operating: -4 to 113°F (-20 to 45°C)
• Folded Dimensions: 8.8 x 8.4 x 6.3" (22.1 x 21.2 x 15.8 cm)
• Weight: 2 lb (0.9 kg)

In the box

• Sony HDVF-EL30 0.7" FHD OLED Viewfinder with 3.5" Display
• Sun Hood
