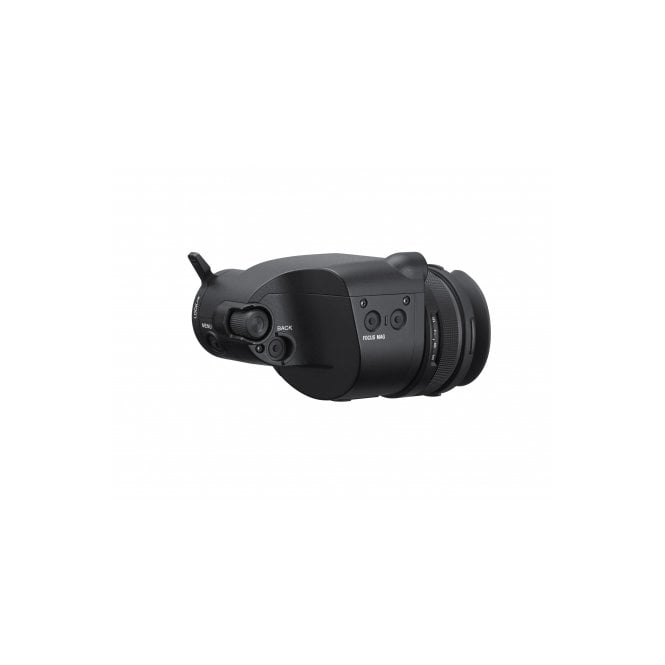

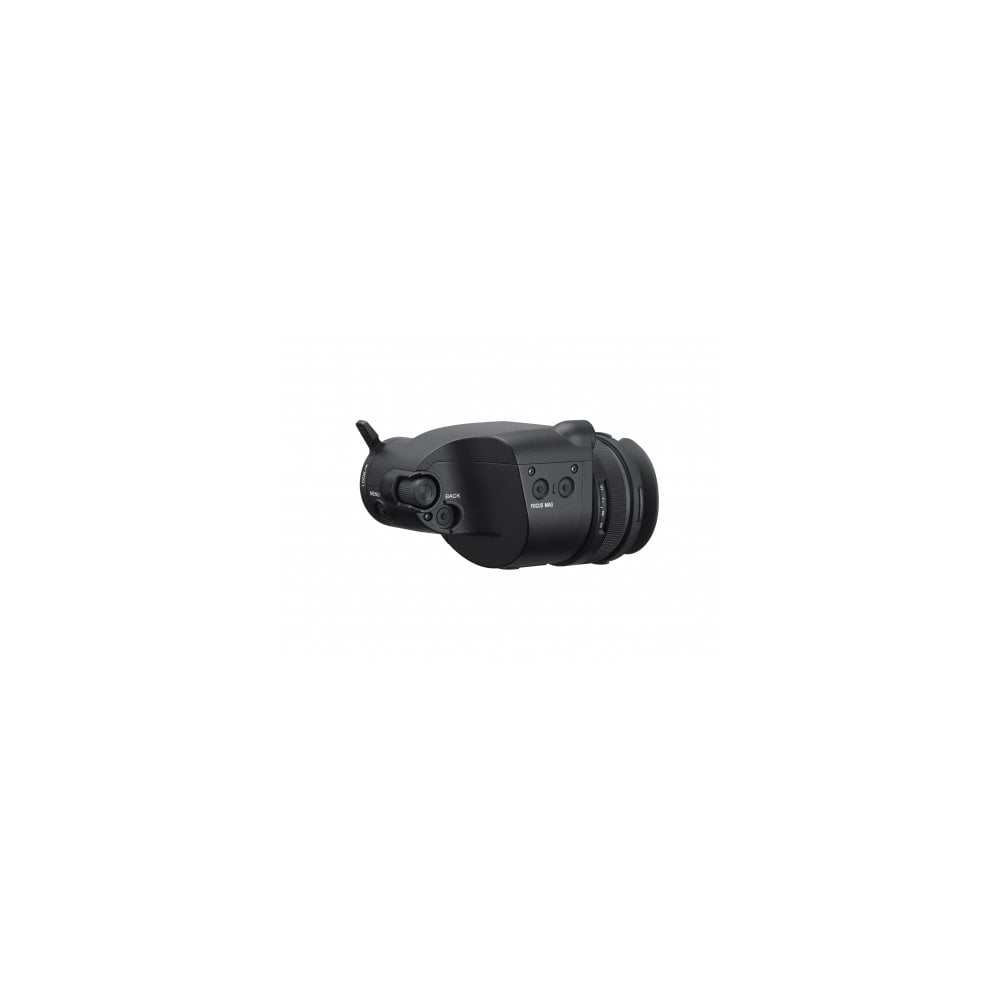

Sony 0.7inch Full HD OLED Viewfinder and Attachment Kit with Cable for FS5 and F5

Sony DVF-EL200/AT (DVF-EL200-AT, DVF/EL200/AT, DVF-EL200/AT) 0.7inch Full HD OLED Viewfinder and Attachment Kit with Cable for FS5 and F5

he DVF-EL200 is a high quality full HD (1920x1080) OLED viewfinder for the F55 and F5 that offers easy focusing and framing. With nearly twice the brightness of Sony’s DVF-EL100 and enhanced usability, the viewfinder is durable and resistant and can be quickly and easily attached to the CBK-55AT viewfinder stay for use with the F5 and F55 cameras. It features an improved eye sensor for increased sensitivity and better positioning, along with enhanced brightness, contrast and peaking level settings.

The DVF-EL200 Full HD viewfinder offers brighter OLED quality for CineAlta cameras PMW-F55 and PMW-F5. The compact 0.7-inch (viewable area, measured diagonally) viewfinder has the incredible clarity of 1920 x 1080 Full HD. And resolution is just the beginning. Thanks to the latest OLED technology, you get superb brightness of approximately 200 cd/m2, making it about twice as bright as the DVF-EL100, the previous PMW-F55/F5 viewfinder.

The latest high quality OLED panel aids the camera operator’s ease and comfort while focusing and framing. In addition to the improved OLED panel, The DVF-EL200 features more durability and usability with an improved eye distance measure sensor, rotary encoders for controlling brightness, contrast and peaking, a heavier and more comfortable dioptre ring, rigid LEMO connector and a quick-release system to detach the viewfinder from the camera.

The CBK-55AT viewfinder cable and attachment provides a strong and flexible mount for the DVF-EL200 viewfinder to the PMW-F55 and PMW-F5 cameras. The attachment allows the Full HD viewfinder to be attached securely, quickly and easily to the camera for the optimal positioning. The unit also supports the viewfinder’s durable Lemo connector.

DVF-EL200 Viewfinder

• Power Supply: 10.5V to 17.0 V DC (supplied from the camera)
• Power consumption: 3.0w
• Operating temperature: 0℃ to 40℃ (32℉ to 104℉)
• Storage temperature: -20℃ to 60℃ (-4℉ to +140℉)
• Mass: Approx. 660 g
• Dimensions: 190(L) x 98(W) x 91 (H)
• Brightness: 200cd/m2 (peak brightness, typical)
• Resolution: 1920 x 1080
• VF connector: 26-pin LEMO

CBK-55AT Kit

• Mass: Approx. 220g
• Dimensions: 97 x 119 x 44mm

In the box

• 1x Sony DVF-EL200 Viewfinder
• 1x Operating Instructions
• 1x Viewfinder Cable
• 1x Attachment for FS5 and F5
