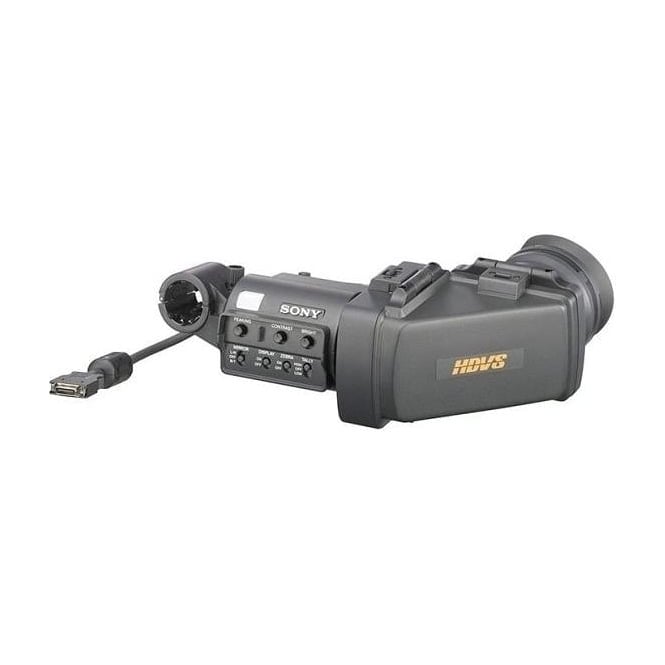

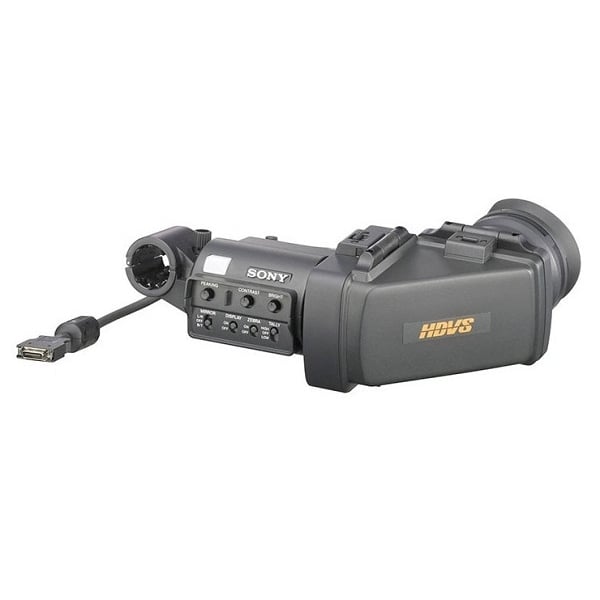

Sony 3.5 inch Colour LCD HD Viewfinder for PXW-X500

Sony CBK-VF02 (CBKVF02, CBK/VF02, cbk-vf02)(PXW_X500,PXW/X500) 3.5 inch Colour LCD HD Viewfinder for PXW-X500

3.5" Color LCD HD Viewfinder for the PXW-X500's 26-pin viewfinder interface. This viewfinder outputs the higher resolution QHD signal to the PXW-X500 and PMW-400 camcorders. Older cameras using the CBK-VF01 viewfinder are compatible with this viewfinder, but cannot take advantage of its higher resolution. The CBK-VF02 must be used with the PXW-X500. The CBK-VF01 is not compatible with the PXW-X500.

General

• Power Consumption: 2.0W
• Operating temperature: 0C to 40C (32F to 104F)
• Storage temperature: –20C to +60C (–4 F to +140 F)
• Mass: Approx. 680 g (1 lb 8.0 oz)
• External dimensions: 201mm (8 in) x 255mm (10 1/8 in) x 60mm (2 3/8 in) 89mm (3 5/8 in)
• 3.5-inch colour TFT transflective LCD Image display area dimensions: 76.8 × 43.2 mm (31/8 × 13/4 inches) (H/V, 16:9 aspect ratio)

Performance

• Brightness: 200 cd/m2 (typical) (when eyepiece is attached)
• Resolution: 500 lines or more
• Colour temperature: 6500 K (typical)
• Connector: Rectangular 26-pin connector

In the box

• 1 x 3.5 inch Colour LCD HD Viewfinder
• 1 x Operation Manual
