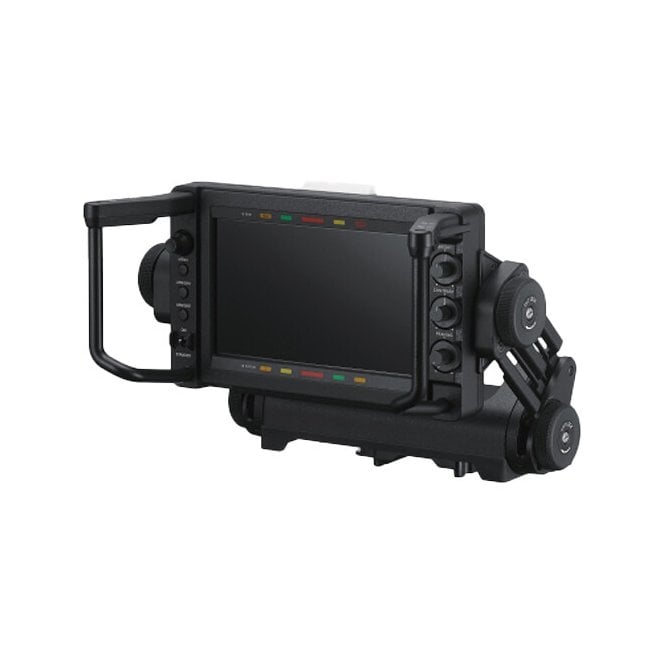

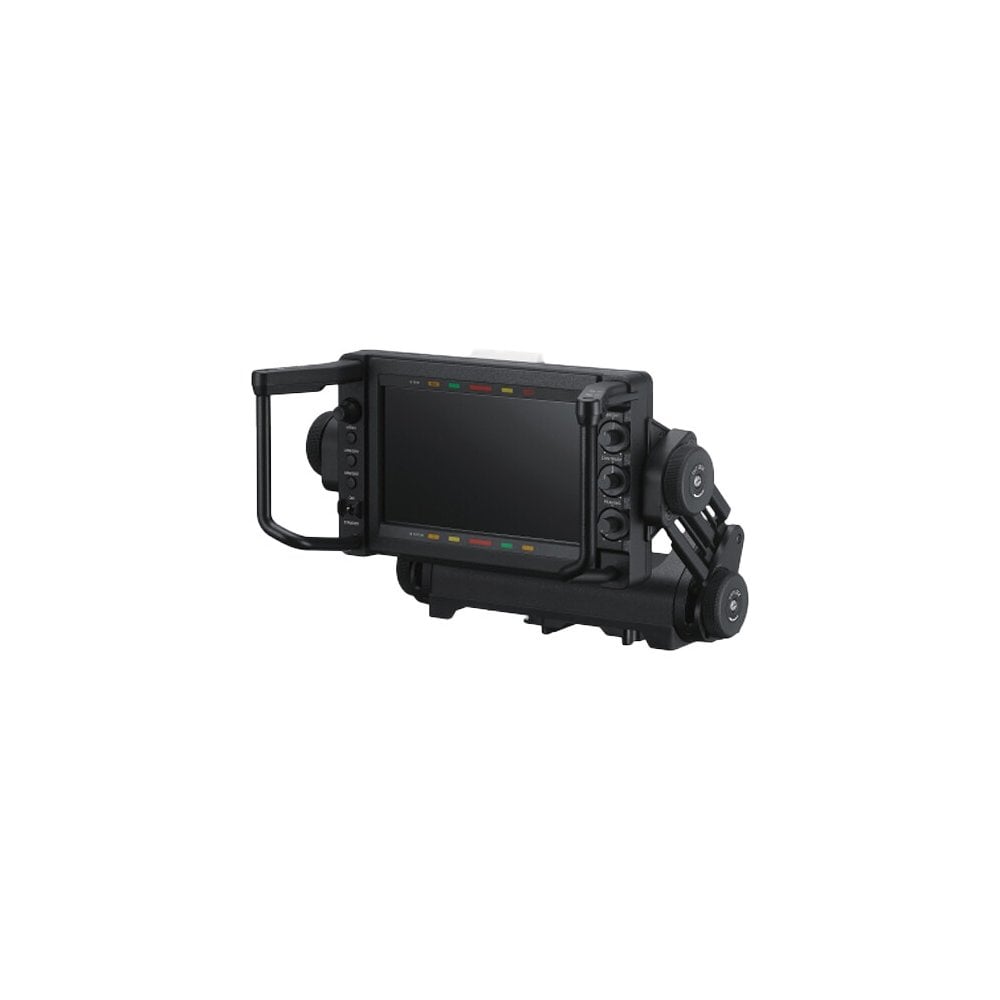

Sony HDVF-EL760 7.4" HD Color OLED Viewfinder with Advanced Mount
Sony HDVF-EL760 Overview
The HDVF-EL760 7.4" HD Color OLED Viewfinder with Advanced Mount provides bright viewing with accurate focusing for the HDC, XDCAM, and additional Sony camera series. Its highly adjustable mount offers tilting, panning, and a wider vertical range using a counterbalanced mechanism. The video interface provides a 20-pin digital input, offering compatibility with multiple Sony cameras. HDVF-EL760 features include a BBM (Boosted Brightness Mode) for exterior use, a 3200-9500K color temperature range adjustable in 100K steps, access to camera head menus, and both tally and DC power inputs.
1920 x 1080 OLED Panel
The HDVF-EL760 viewfinder features a 7.4" 1920 x 1080 OLED panel that enables accurate focusing for Sony 4K or HD camcorders and XDCAM cameras.
Digital Video Input
The 20-pin Sony connector transmits 1080p signals from Sony HDC and additional series cameras.
Counterbalanced Pan and Tilt Mount
The included tilting mount features both front-to-back sliding and a wider range of vertical movement for optimal viewing.
The counterbalanced lifting mechanism provides exact vertical positioning using a clicking, four-step system.
A brake sets the pan rotation at any position within 270°, and the tilt can be clicked into place at -90, 0, or +90°.
Flexible Menu Options
The HDVF-EL760 enables you to access both the Sony HDC camera and viewfinder menus.
Most functions can be assigned to dedicated switches on the viewfinder panel, enabling the operator to concentrate on a single interface.
Image Functions
A waveform display, assignable buttons, and an adjustable 3200-9500K color temperature enable users to quickly adjust the image for each setup.
The flicker suppression mode reduces flicker when shooting at 59.94p, 50p, 48p, 47.94p, 29.97p, 25p, or 23.97p.
Boosted Brightness Mode
The BBM (boosted brightness mode) function increases the display level from 315 to 700 cd/m² for easier viewing in exterior or brightly lit settings.
Panel Type
OLED
Display Size
7.4" / 18.8 cm
Screen Resolution
1920 x 1080
Image Controls
Color Temperature Selection, Waveform
Video Format
20-Pin
1080p: 60/59.94/50
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 59.94/50
Show More
Power Consumption
13.5 W
Mounting
1/4"-20 Female
Display
Color/Monochrome
Color
Panel Type
OLED
Display Size
7.4" / 18.8 cm
Active Area
6.5 x 3.6" / 164 x 92 mm
Screen Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
No
Maximum Brightness
700 nits / cd/m2
Refresh Rate
60 Hz
Pixels Per Inch (ppi)
297 ppi
Image Controls
Color Temperature Selection, Waveform
Inputs / Outputs
System Connection
Round Sony 20-Pin
Video Format
20-Pin
1080p: 60/59.94/50
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 59.94/50
Power
DC Input Power
10.5 to 17 VDC
Power Consumption
13.5 W
Environmental
Operating Temperature
-4 to 113°F / -20 to 45°C
Storage Temperature
-4 to 140°F / -20 to 60°C
General
Mounting
1/4"-20 Female
Dimensions
12.2 x 11.6 x 8.4" / 310.5 x 295.3 x 214.4 mm, Excluding Sun Hood
Weight
7.3 lb / 3.3 kg, Excluding Sun Hood
code:
In the box;
1 x Sony HDVF-EL760 7.4" HD Color OLED Viewfinder with Advanced Mount
