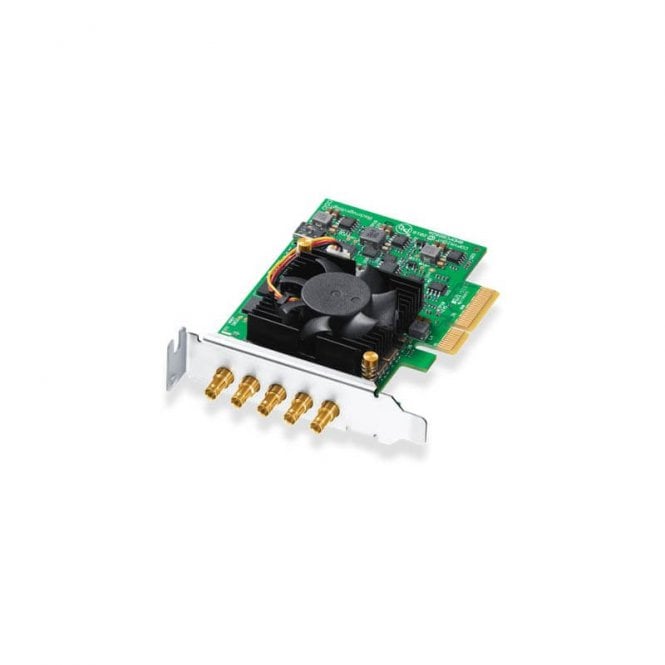

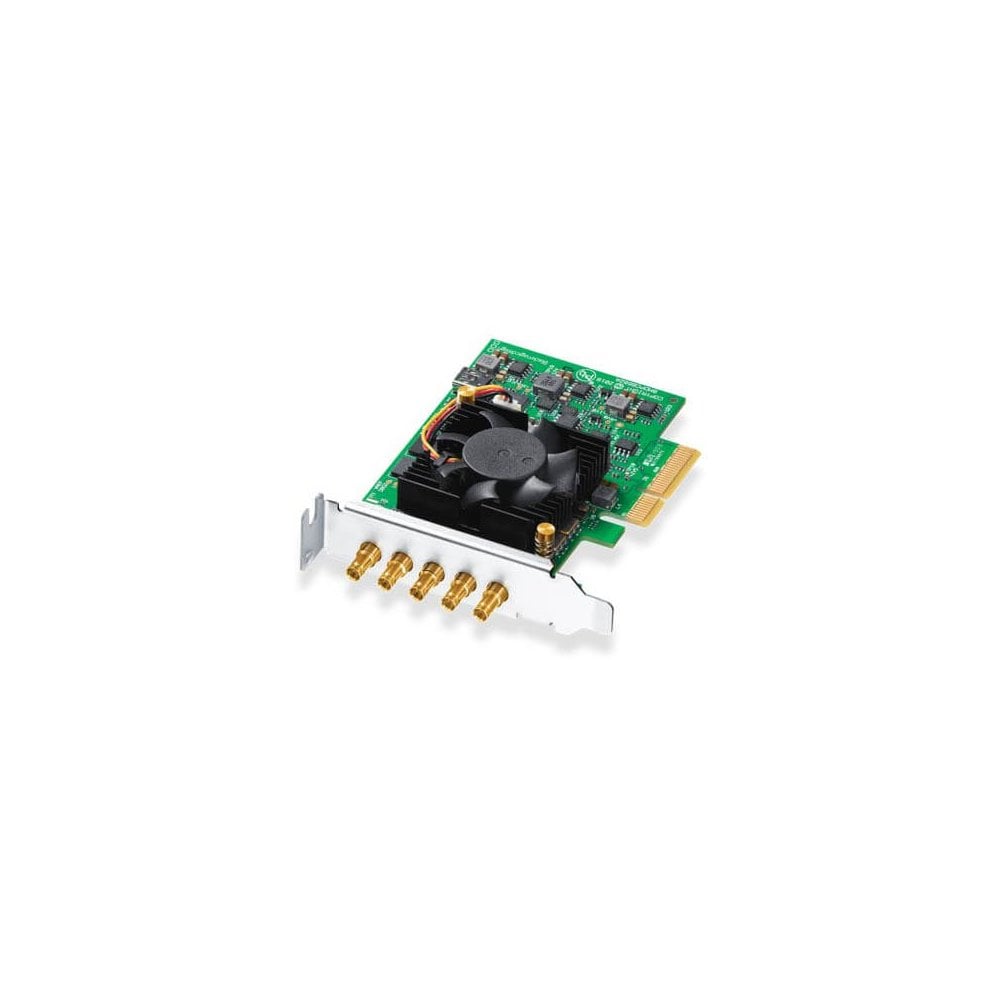

Blackmagic Decklink Duo 2 Mini

code: BMD-BDLKDUO2LP

Availability | Usually dispatched within 24 hours

Features

Compact, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60
Features 4 independent mini 3G-SDI connections
You get the flexibility of 4 separate capture or playback cards in one
Completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more

Blackmagic BMD-BDLKDUO2LP (BMD_BDLKDUO2LP, BMD/BDLKDUO2LP, BMD BDLKDUO2LP) Decklink Duo 2 Mini

Compact PCIe capture and playback card with 4 independent channels for SD and HD up to 1080p60.

Connections

SDI Video Inputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
SDI Video Outputs 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
SDI Audio Inputs 16 channels embedded in SD and HD.
SDI Audio Outputs 16 channels embedded in SD and HD.
Sync Input Tri-Sync or Black Burst.
Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:

In the box
