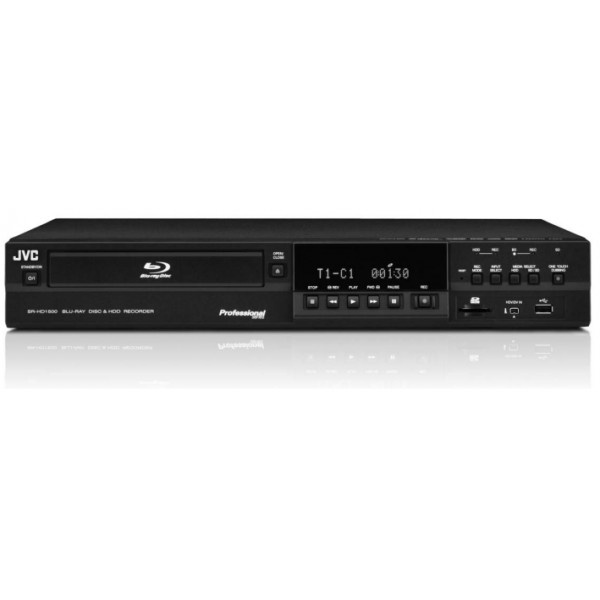

JVC SR-HD1500 Blu-ray Disc & HDD Recorder

JVC SR-HD1500 Blu-ray Disc & HDD Recorder

Standalone Blu-ray / HDD Recorder

Supports Blu-ray (HD) & DVD (SD) discs

HDV/DV camcorders via iLINK

Simplified duplication function

JVC's SR-HD1500 is a professional blu-ray disc recorder allowing you to copy videos to blu-ray  disc from a high-definition camcorder from the HDD, or down convert the videos and record them onto DVD. An internal HDD also enables easy editing and dubbing of multiple discs.

The SR-HD1500 supports recordings of MOV files in SP (19/25Mbps) mode made using the GY-HM100/700 ProHD camcorders, allowing them to be transferred to the HDD and dubbed discs.

The HD1500 also supports multiple file formats such as AVCHD, HDV, DV and those of JVC’s Everio camcorders; digital dubbing can be performed. A digital interface enhances camcorder compatibility with USB, SDHC slots and i.LINK input terminals for convenient connection to camcorders.



Compatible with dual-layer 50GB blu-ray discs which can store up to 24-hours of full high definition images on a single disc as well as inexpensive LTH discs the SR-HD1500 also supports BDMV format, allowing you to create blu-ray discs with menus. The HD1500 also enables you to use original images to create unique backgrounds.



Authoring menu enables discs to be created and used for professional applications. This includes discs that repeat playback automatically or demonstration discs. An RS-232C terminal also enables external control.

SR-HD1500 Key Features:

New tapeless HD combo deck: HDD and Blu-ray recorder with SD card slot

Supports Blu-ray (HD) & DVD (SD) discs

Equipped with various interfaces: SDHC, i.LINK (HDV/DV In), USB2.0, HDMI, RS-232C, and infrared remote.

Edit camcorder content and author professional style Blu-ray/DVD discs

Supports footage recorders on*1: JVC's GY-HM100/700 camcorder (MOV, SP/19/25Mbps mode only)

HDV/DV camcorders via iLINK

Camcorders compatible with AVCHD or MPEG-2

Simplified duplication function

Authors discs with auto-start or repeat playback

Generic Spec: SR-HD1500

Specs:GeneralPower requirement - AC 120 V, 60 Hz

Power consumption on/off - 34 W/3.0 W

Operating temperature - 41ºF to 95ºF (5ºC to 35ºC)

Storage temperature - -4ºF to 140ºF (-20ºC to 60ºC)

Operating position - Horizontal only

Dimensions (W x H x D) - 17-1/10" x 2-6/8" x 13-13/16" (435 mm x 70 mm x 351 mm)

Weight - 11.2 lbs (5.1 kg)

Input and OutputVideo input/output - 1 Vp-p, 75Ω (BNC)

Audio input/output - 2Vrms (pin jack)

S-video input/output - Y: 1.0 Vp-p, 75Ω, C: 0.286 Vp-p, 75 Ω

DV input - 4-pin for DV, HDV IN

Remote input - 3.5 mm diameter jack


Serial command - D-sub 9-pin

Component video output - Y:1.0 Vp-o, 75     CB/CR, PB/PR: 0.7 Vp-p, 75 Ω

HDMI output - 19-pin type A (Deep Colour, x.v.Colour, Ver,1.3a)

USB terminal -  USB2.0

SD Memory CardCompatible SD memory card - SD, SDHC

HDD DeckStorage capacity -  500GB

Video recording compression system -  MPEG-2 (VBR), H.264/AVC

Audio recording system -  Dolby Digital (2ch), Linear PCM (2ch, XP mode only)

BD/DVD DeckVideo recording compression system -  MPEG-2 (CBR/VBR), H.264/AVC

Audio recording system -  Dolby Digital (2ch), Linear PCM (2ch, XP mode only)

Region code - BD: Region A DVD: #1

AccessoriesSupplied accessories - AC power cord, audio/video cable, BNC male to RCA female adapter, infrared remote control unit, "AA" battery x 2
