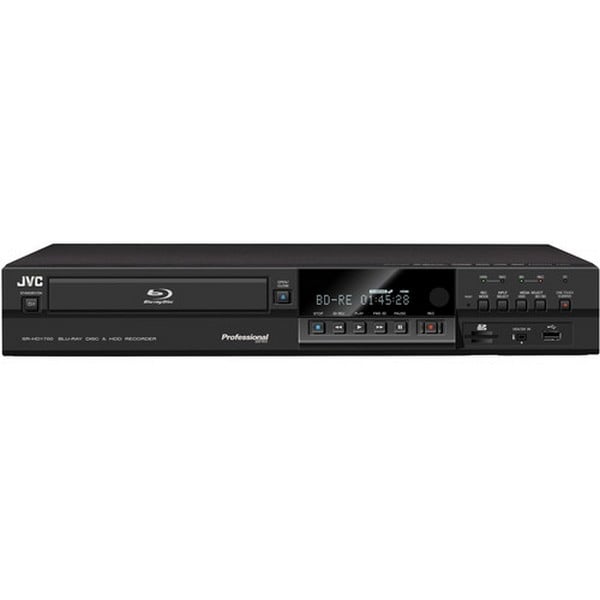

JVC SR-HD1700 Blu-ray and DVD Combo Deck

JVC SR-HD1700 (SRHD1700, SR HD1700, SR/HD1700, sr-hd1700) Blu-ray and DVD Combo Deck

Creating Blu-ray or DVD discs from high definition footage recorded with our ProHD cameras has just become easier and more efficient. Our new combo decks – SR-HD1350 and SR-HD1700 – allow the user to create standard Blu-Ray high-definition discs or standard DVDs from a large variety of high definition content sources without the need to utilise complex software or IT hardware.

Through the support of industry standards, our new combo decks are also compatible with all other HDV or AVCHD cameras in the market, thus offering the benefit of easy content distribution to any user who shoots on an HDV or AVCHD camcorder. The SR-HD1350/1700 added many additional features that will make your job easier!

All-in-one professional Blu-ray recorder

Direct-to-disc recording from live signal with new record pause mode

Direct recording to DVD possible in DVD-Video format

Internal 500GB hard disk for editing, duplicating

Dubbing speed up to 6x with BD-R discs

Create professional BDMV or BDAV format discs-even from live sources

Stores up to 24 hours of HD (AE mode using dual-layer 50GB disc)

Supports BD-R or BD-RE Blu-ray discs

Authors discs with auto-start or repeat playback

Supported Video Formats: MPEG2TS / MPEG2PS / H.264 AVC

Dolby Digital (2ch)/LPCM audio

Digital and analog inputs for wide compatibility

USB - (connect to camcorder)

SD/SDHC or SDXC (via USB card reader only) card - (AVCHD, ProHD camcorder)

i.LINK - (HDV, DV camcorder)

Composite/S-Video A/V input - (Analog SD device, camcorder, etc.)

Flexible monitoring via HDMI. Now outputs with or without HDCP encryption

Please note: To output without HDCP, source material must not be encrypted

Component output (SD only)

Disc duplication function

Serial control & LAN

Recording

HDD Storage Capacity 500 GB

Video Recording Format MPEG4 AVC/H.264, MPEG2 TS, MPEG2 PS

Audio Recording Format Dolby Digital, LPCM

Recording To Blu-ray/DVD:

Composite Video/S-Video(L-1)

Format: BDMV, DVD-Video, DVD-VR

To HDD:

HDV/DV (i-LINK)

Composite Video/S-Video(L-1)

Importable Data Format MXF, AVCHD, HDV, DV, BDMV, BDMV, DVD-Video, DVD-VR

MOV (from GY-HM850/890, GY-HM600/650, and GY-HM150 series camcorder using HQ mode (35 Mbps) and SP (25 Mbps and 19 Mbps) Everio backup disc

Continuous Recording Time BDMV and BDAV: 24 hours

HDD, DVD-video, and DVD-VR: 8 hours

Extended period of recording time over 24 hours, up to full disc

Note: There may be cases where the recording will stop less than 24 hours due to the limitation of Blu-ray Disc rules

Recording Media Support Blu-ray Disc

BD-R (SL/DL)

BD-RE (SL/DL)

DVD DVD-R (SL/DL)

DVD-RW

SD card (still)

SDXC (USB card reader only)

SDHC

SD

Playable Media Blu-ray Disc

BD-video

BD-R (SL/DL)

BD-RE (SL/DL)

DVD DVD-video DVD-R (SL/DL)

DVD-RW

DVD-RAM

DVD+R (SL/DL)

DVD+RW

CD

CD

CD-R

CD-RW

SD card (AVCHD/still)

SDXC (USB card reader only)

SDHC

SD

Inputs/Outputs

Video In/Out Composite video (VBS), 1.0 V p-p, 75 Ω, BNC

Audio In/Out 2 Vrms, 10 kΩ (pin jack)

S-Video In/Out Y: 1.0 V p-p, 75 Ω; C: 0.286 V p-p, 75 Ω

Component Video Output Y: 1.0 V p-p, 75 Ω; CB/CR, CB/PR: Vp-p, 75 Ω, BNC

HDMI Output 19-pin type A, (Deep Color, x.v.Color, Version 1.3a)

IEEE1394 Input 4-pin for DV/HDV in

USB Terminal USB 2.0

SD Card Slot SD/SDHC

Remote Input 3.5mm jack

Serial Connector RS232C (D-sub 9pin)

LAN 10Base-T/100Base-TX, RJ-45 for remote & file transfer

General

Power Requirement 120 VAC, 60 Hz

Power Consumption 36 W (powered on)

0.5 W (stand-by and no FL display)

Operating Temperature 41 to 95°F (5 to 35°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Operating Position Horizontal only

Dimensions (W x H x D) 17.1 x 2.8 x 13.8" (43.5 x 7.0 x 35.1 cm)

Weight 11 lb (5 kg)
