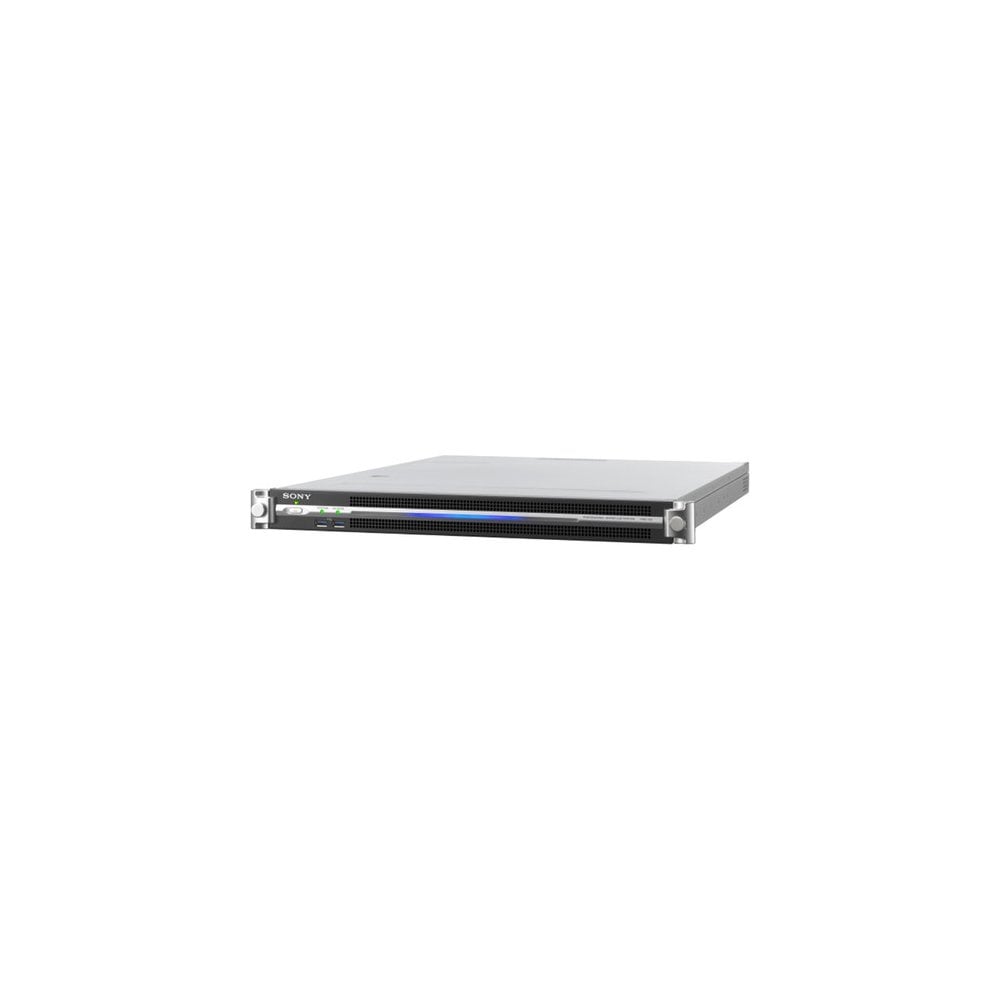

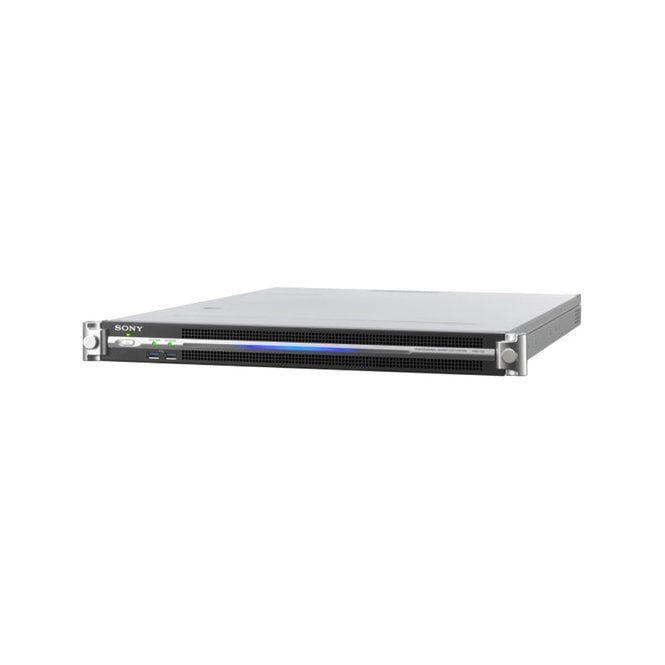

Sony Content Management Station 1U Rack Mount Server

Sony PWS-110CM1 (PWS/110CM1, PWS_110CM1, PWS 110CM1) Content Management Station 1U Rack Mount Server

The PWS-110CM1 Content Management Station is a 1U rack-mount server for use with the versatile PWS-4500 Live Production Server System. The new PWS-110CM1 provides a metadata-enabled workflow and improved content management capability, across multiple PWS-4500 servers, that lets users efficiently and easily search for content that can be seamlessly transferred for delivery.

Metadata-based workflows benefit large-scale live productions, especially for major sporting events that use numerous cameras and servers operated from OB trucks. The PWS-110CM1 and the updated PWS-4500 system (using software version 2.3) when used together, allow a server operator to enter metadata, indicate the server’s content on a network, categorize and indicate the metadata of the clips, search the clips by metadata, keywords or star ratings and transfer clips between servers, as well as external devices.

General

• Power requirement: 100V to 240V AC, 50/60 Hz
• Power consumption: Max 235W
• Power consumption: Standby 3W or lower
• Operating temperature: 5℃ to 35℃ (41°F to 95°F)
• Storage temperature: -20℃ to 55℃ (-4°F to 131°F)
• Operating humidity: 20% to 90% (relative humidity)
• Storage humidity: 75% or lower
• Mass / weight: 14 kg (30 lb 14 oz)
• Dimensions: 440 x 43.6 x 640 (17 3/8 x 1 3/4 x 25 1/4)

Inputs/Outputs

• LAN: RJ-45 x 2port (1000BASE-T,100BASE-TX), SFP+ (x1) 10GBASE-SR/LR (Add-in Card)*1 *2
• USB: Super Speed USB (USB 3.0) Type A, Total 6 ports (2 on front and 4 on rear),Front: Power delivery support (900 mA/port), Rear: Power delivery support on bottom right port (900 mA), not supported on other three ports
• HDMI: Type A, HDMI Version 1.4a, 1920x1200 maximum resolution, 60 Hz
• Display Port: Display Port Version 1.1a, 2560 x 1600 maximum resolution, 60 Hz

PC Spec

• Processor: Intel Core i7-3770 (3.4 GHz)
• Memory: 8 Giga Bytes
• OS drive: m-SATA 60GB x 1
• Data drive: 1.2 TB PCIe SSD
• Expansion bus: PCIe Gen2 8Lane (30 W) x 2

In the box

• 1x PWS-110CM1 Content Management Station
