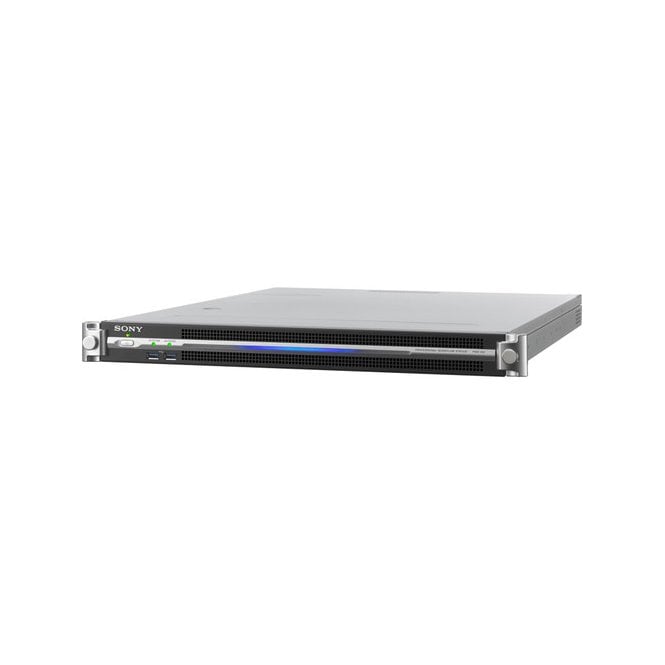

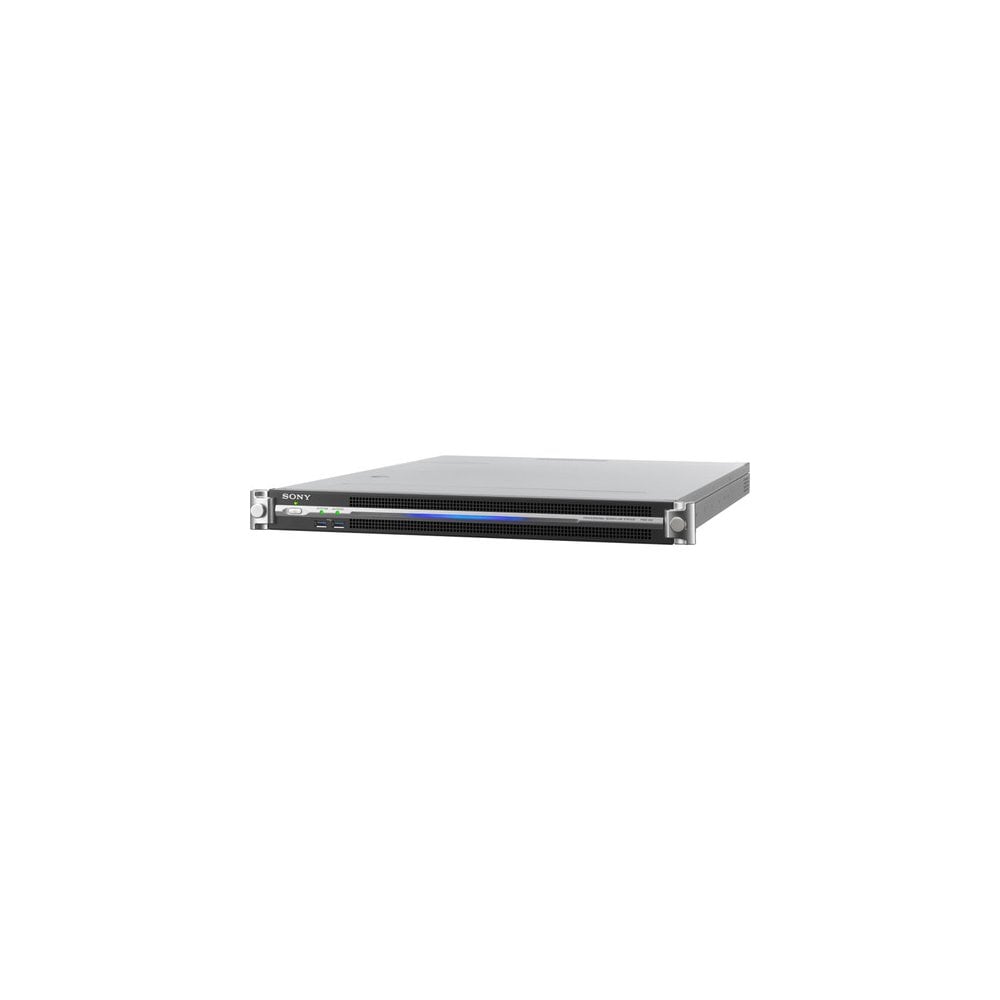

Sony Short-depth Media Gateway Workstation

Sony PWS-110MG1 (PWS_110MG1, PWS/110MG1, PWS 110MG1) Short-depth Media Gateway Workstation

The PWS-110MG1 is a short-depth 1U rack-mount server with pre-installed PWA-MGW1 Media Gateway Software. It allows you to archive recorded files from the PWS-4500 server to removable media such Professional HDD, Sony’s Optical Disc Archive or to NAS external media. Additionally, you can retrieve files from removable media to the PWS-4500 server. Other available features include chase transfer, check-in to Non-Linear Editing (NLE) and material previews.

Lighter, shorter version of PWS-100MG1

• The PWS-110MG1 is the short-depth version of the PWS-100MG1. The PWS-110MG1 chassis is 130mm / 5 1/4 inches shorter and 3.8 kg / 8lb lighter.

General

• Power requirement: 100V to 240V AC, 50/60 Hz
• Power consumption - Max: 235W
• Power consumption - Standby: 3W or lower
• Operating temperature: 5 ~ 35 C (41 ~ 95 F)
• Storage temperature: -20 ~ 55 C (-4 ~ 131 F)
• Operating humidity: 20% to 90% (relative humidity)
• Storage humidity: 75% or lower
• Mass / weight: 10.2 kg (22 lb. 7.8 oz.)
• Dimensions (width / height / depth): 440 x 43.6 x 507 mm, (17 3/8 x 1 3/4 x 20 inch)

Inputs/Outputs

• LAN1/2: RJ-45 x 2port (1000BASE-T,100BASE-TX)
• LAN: SFP+ slot, 10GBase-SR or 10GBase-LR (when an SFP+ module is installed), Intel Ethernet Converged Network Adapter X520- DA1, Use the following SFP+ module, Intel Ethernet SFP+ SR Optic (E10GSFPSR), Intel Ethernet SFP+ LR Optic (E10GSFPLR)
• USB: Super Speed USB (USB 3.0) Type A, Total 6 ports (2 on front and 4 on rear), Front: Power delivery support (900 mA/port),Rear: Power delivery support on bottom right port (900 mA), not supported on other three ports
• HDMI: Type A, HDMI Version 1.4a, 1920x1200 maximum resolution, 60 Hz
• Display Port: Display Port Version 1.1a, 2560 x 1600 maximum resolution, 60 Hz

PC Spec

• Processor: Intel Core i7-3770 (3.4 GHz)
• Memory: 8 Giga Bytes
• OS drive: m-SATA 60GB x 1
• Data drive: 1.2 TB PCIe SSD
• Expansion bus: PCIe Gen2 8Lane (30 W) x 2

In the box

• Short-depth Media Gateway Workstation
