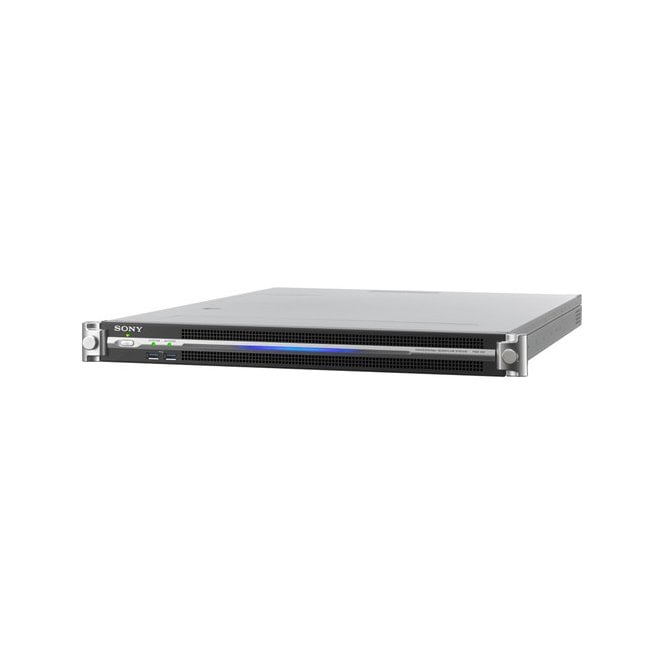

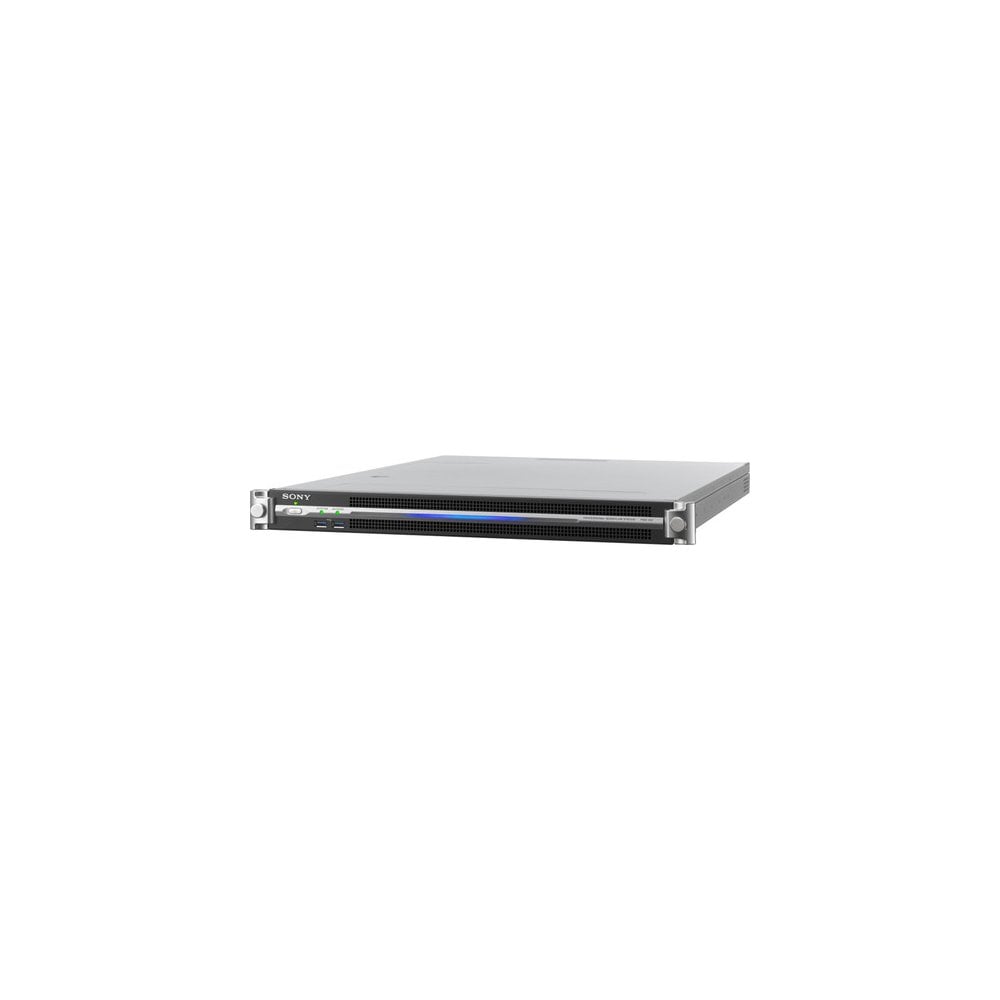

Sony Short-depth Production Control Workstation

Sony PWS-110PR1 (PWS_110PR1, PWS/110PR1, PWS 110PR1) Short-depth Production Control Workstation

The PWS-110PR1 is a 1RU short-depth production control workstation to control the PWS-4500 4K/HD multi-port AV storage unit for live operation. It includes pre-installed PWA-PRC1 production control software and video input card required to support this operation. An optional touch-screen monitor can be provided to enhance the operational experience even further. The system provides a variety of screen variations, including split-screen mode, playlist mode, clip management mode and cut-out mode. With the PWS-4500, the unit provides full control of ground-breaking 4K and HD workflows to help you produce amazing live action and highlights content.

Lighter, shorter chassis

• The PWS-110PR1 is a short-depth production control workstation, with a mass of only 10.2kg (22lb 7.8oz) and dimensions of 440 x 43.6 x 507mm (17 3/8 x 1 ¾ x 20 inches).

Control of PWS-4500 server

• The PWS-110PR1 provides live operational control of the PWS-4500. It allows connection to the PWSK-4403 USB control device for live slow-motion operation and optional touch-screen monitor.

Operation flexibility

• With the PWS-4500, the unit provides full control of ground-breaking 4K and HD workflows.

Multi-port inputs/outputs

• The PWS-100PR1 is equipped with two graphic cards to monitor up 6 inputs that are fed to the PWS-4500 (when using the PWS-4400 in HD operation) In addition, the PWS-110PR1 has six USB 3.0 ports allowing you to connect USB HDDs (Hard Disk Drives), as well as two RJ-45 (1000BASE-T,100BASE-TX), one HDMI port and one DisplayPort connector V1.1a for display support.

General

• Power requirement: 100V to 240V AC, 50/60 Hz
• Power consumption - Max : 235W
• Power consumption - Standby: 3W or lower
• Operating temperature: 5 ~ 35 C (41 ~ 95 F)
• Storage temperature: -20 ~ 55 C (-4 ~ 131 F)
• Operating humidity: 20% to 90% (relative humidity)
• Storage humidity: 75% or lower
• Mass / weight: 10.2 kg (22 lb. 7.8 oz.)
• Dimensions (width / height / depth): 440 x 43.6 x 507 mm, (17 3/8 x 1 3/4 x 20 inch)

Inputs/Outputs

• LAN: RJ-45 x 2port (1000BASE-T,100BASE-TX)
• USB: Super Speed USB (USB 3.0) Type A,Total 6 ports (2 on front and 4 on rear),Front: Power delivery support (900 mA/port), Rear: Power delivery support on bottom right port (900 mA), not supported on other three ports
• HDMI: Type A, HDMI Version 1.4a, 1920x1200 maximum resolution, 60 Hz
• Display Port: Display Port Version 1.1a, 2560 x 1600 maximum resolution, 60 Hz
• REF IN: BNC x 2port, SMPTE-318M compliant, HD tri-level sync (0.6 Vp-p/75 Ω/sync load) or SD black burst/composite sync (0.286 Vp-p/75 Ω/sync load)
• SDI: 8 BNC ports
• HD: SMPTE-292M compliant SD: SMPTE-259M compliant

PC Spec

• Processor: Intel Core i7-3770 (3.4 GHz)
• Memory: 8 Giga Bytes
• OS drive: m-SATA 60GB x 1
• Expansion bus: PCIe Gen2 8Lane (30 W) x 2

In the box

• Short-depth Production Control Workstation
