Sony XDCAM HD422 Professional Disc Recorder

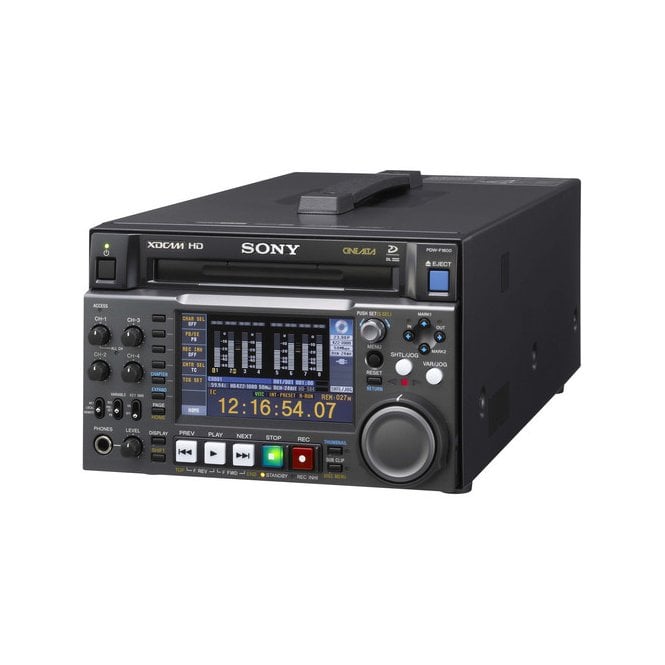

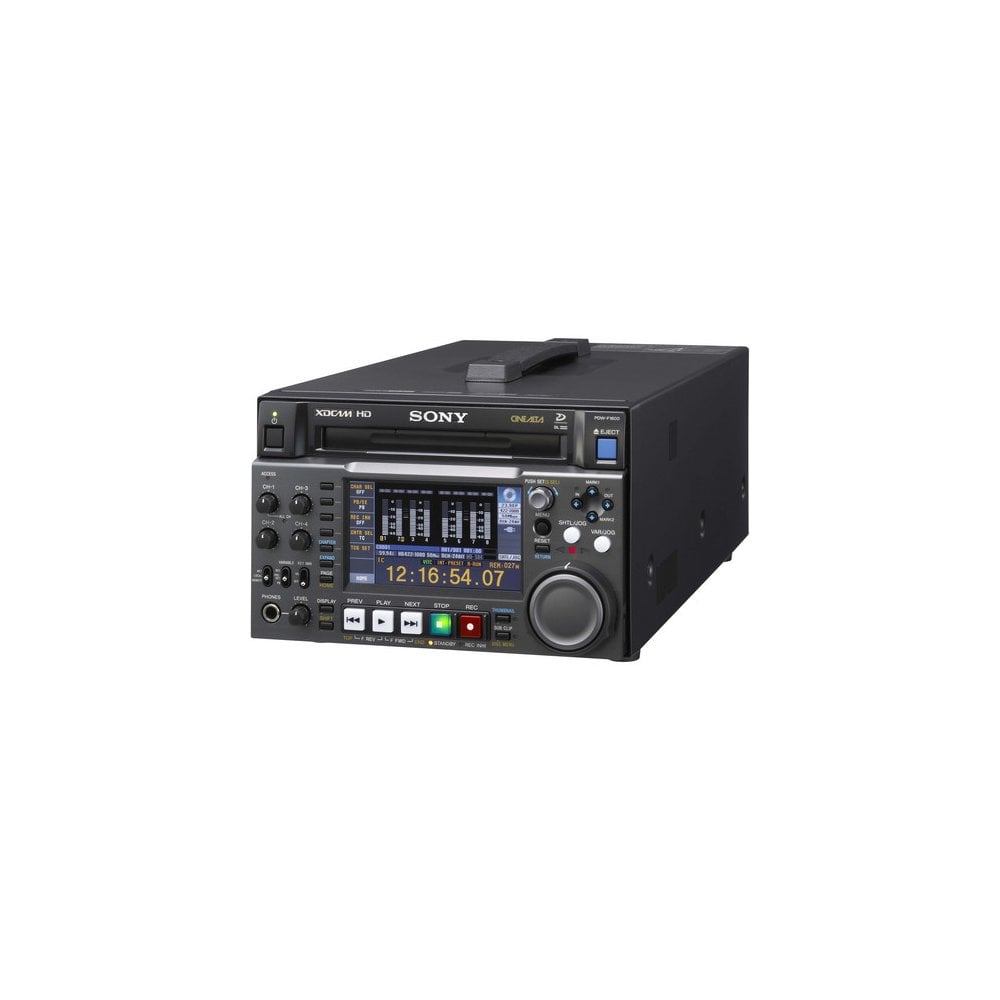

Sony PDW-F1600 (PDW/F1600, PDW_F1600, PDW F1600) XDCAM HD422 Professional Disc Recorder

Sony's top-of-the-line XDCAM HD422 Series is being embraced around the world for its file-based recording capability utilizing high-capacity and highly reliable Professional Disc media. Thanks to its newly developed MPEG HD422 codec, the XDCAM HD422 Series provides high-quality video and audio recording capabilities, with an image resolution of 1920 x 1080 and eight-channel 24-bit uncompressed audio.

Now, Sony is proud to announce a new addition to the series - the PDW-F1600 deck. The PDW-F1600 offers multi-format recording flexibility as standard - including SD recording and a frame rate of 23.98P in 1080 mode.

The foundation of the PDW-F1600 deck incorporates the features of the PDW-HD1500, and acts as more than just a file-based recording deck. With its insert/assemble editing capability, it can be used as a recorder in a linear editing system - just like a conventional VTR.

• Signal System: XDCAM HD422
• Tape Format: Blue Laser Disc
• Tape Speed: N/A
• Signal-to-Noise Ratio: 53dB
• Maximum Recording Time: DVCAM: 85 min, MPEG HD (2 Channel): 35 Mb/s - 69 min, 25 Mb/s - 92 min, 18 Mb/s - 122 min, MPEG HD (4 Channel): 35 Mb/s - 66 min, 25 Mb/s - 87 min, 18 Mb/s - 113 min, MPEG HD422: 95 Min
• Audio Signal Format: DVCAM: 16 bits, 48 kHz, 4 Channels, MPEG HD/422: 16/24 bits, 48 kHz, 2/4 Channels
• Frequency Response: 20 Hz to 20 kHz, +0.5 dB/-1.0 dB (0 dB at 1 kHz)
• Input and Output Connectors: HD Component: BNC (x1 Output), RGB: 15-pin D-Sub (x1 Output), SD Analog Composite: BNC (x1 Output), Analog Audio: XLR (x1 Output) Audio Monitor: RCA (x1 Output), i.LINK: FireWire 6-pin (HDV requires add-on card), RS-422A: 9-Pin D-Sub, RS-232: 9-Pin D-Sub, Headphone: Stereo Phone Jack Ethernet (Optional): 1000Base-T (RJ-45)
• Power Requirements: 100-240VAC, 50/60 Hz
• Power Consumption: 70W
• Operating Temperature: 40-104°F (5-40°C)
• Dimensions (WxHxD): 12.1 x 4 x 16.5" (30.8 x 10.16 x 41.9cm)
• Weight: 15.4 lbs (7.2kg)

In the box

• XDCAM HD422 Professional Disc Recorder
