Zoom H5 Studio 32-Bit Float Recorder, Brand New

Brand New Zoom H5 Studio Handy Recorder

The Zoom H5 Studio Handy Recorder is designed for filmmakers, podcasters, musicians, journalists and content creators who demand professional-quality audio without complexity. Featuring studio-grade preamps, 32-bit float recording, interchangeable microphone capsules and USB audio interface functionality, the H5 Studio delivers exceptional recordings in virtually any environment.

The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.

The Largest Mics Ever on a Handy Recorder

The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and clarity.

F-Series Power, Now in Your Hands

The H5studio features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN).  With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range, capturing everything without noise or distortion.

Complete Control, Zero Clipping

32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping.The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production.

Six Tracks Up to 192 kHz

The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.

Protect Your Sound

Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.

Advanced Limiters

The H5studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track.

The Inputs

The two locking XLR/TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.

Next Generation Capsule System

The H5studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording.*Compatible with SSH-6e , EXH-6e

Waveforms & Levels

Monitor input levels and real-time waveforms with the full color LCD, making it easy to adjust and monitor audio in real time.

Headphone Out

Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.

Line Out

Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.

Onboard Speaker

The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

USB audio interface

The H5studio is a 4-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream live and simultaneously record a backup to microSD.

Sync Smarter

The TCA-1 timecode adapter* generates and outputs timecode or jams to an external clock. You can also receive wireless timecode from the ATOMOS® UltraSync BLUE.***Available separately, releasing summer 2025**TCA-1 or BTA-1 Required

Wireless control

With the ZOOM Handy Control & Sync app for iOS, you can remotely manage multiple Zoom recorders*, control start/stop, and synchronize timecode effortlessly.***Current compatible models: H2essential, H5studio** BTA-1 or TCA-1 required.

Inputs & Outputs

Inputs:

1x Mic Capsule Input

2x MIC/LINE Inputs (Mono)

Outputs:

1x Line Out

1x Headphone Output

Built-in Mono Speaker

Microphones & Audio Inputs

XYH-5s Stereo Mic Capsule

90° XY stereo configuration

Unidirectional pickup pattern

Sensitivity: -41 dB/Pa at 1 kHz

Max SPL: 140 dB

LINE IN

3.5mm stereo mini jack

Gain: -∞ to +60 dB

Input impedance: 2 kΩ or higher

MIC/LINE Inputs

2x XLR/TRS combo inputs

XLR: Pin 2 Hot / TRS: Tip Hot

Gain: -∞ to +60 dB

Max input level:

MIC: +4 dBu

LINE: +24 dBu

+48V Phantom Power supported

EIN: -127 dBu or lower (IHF-A)

Outputs

Line Out

3.5mm stereo mini jack

Max output: +1 dBu

Headphone Output

3.5mm stereo mini jack

Output: 20mW + 20mW (32Ω load)

Built-in Speaker

20 × 30mm dynamic speaker

Max output: 250mW

Recording Features

Up to 6-track simultaneous recording

Up to 4-track playback

WAV recording support:

44.1 / 48 / 96 / 192 kHz

16-bit / 24-bit / 32-bit float

Supports:

Mono / Stereo

BWF & iXML formats

Media:

microSDHC / microSDXC cards

Display & USB

2.0" Full Colour LCD

Resolution: 320 × 240

USB Type-C

USB 2.0 High Speed

Audio Interface Modes:

4 In / 2 Out

2 In / 2 Out

Supports:

24-bit & 32-bit float

44.1 / 48 / 96 kHz

Wireless & Remote

Compatible with optional ZOOM BTA-1 Bluetooth Adapter

Power

Powered via:

4x AA Batteries

USB Bus Power

ZOOM AD-17 AC Adapter

Battery Life

Alkaline: Approx. 6 hrs

NiMH (1900mAh): Approx. 6 hrs

Lithium: Approx. 11.5 hrs

Physical Specifications

Dimensions: 86 × 206 × 54.6 mm

Weight (with batteries): 410g

Power Consumption: 5W max

0 dBu = 0.775 Vrms

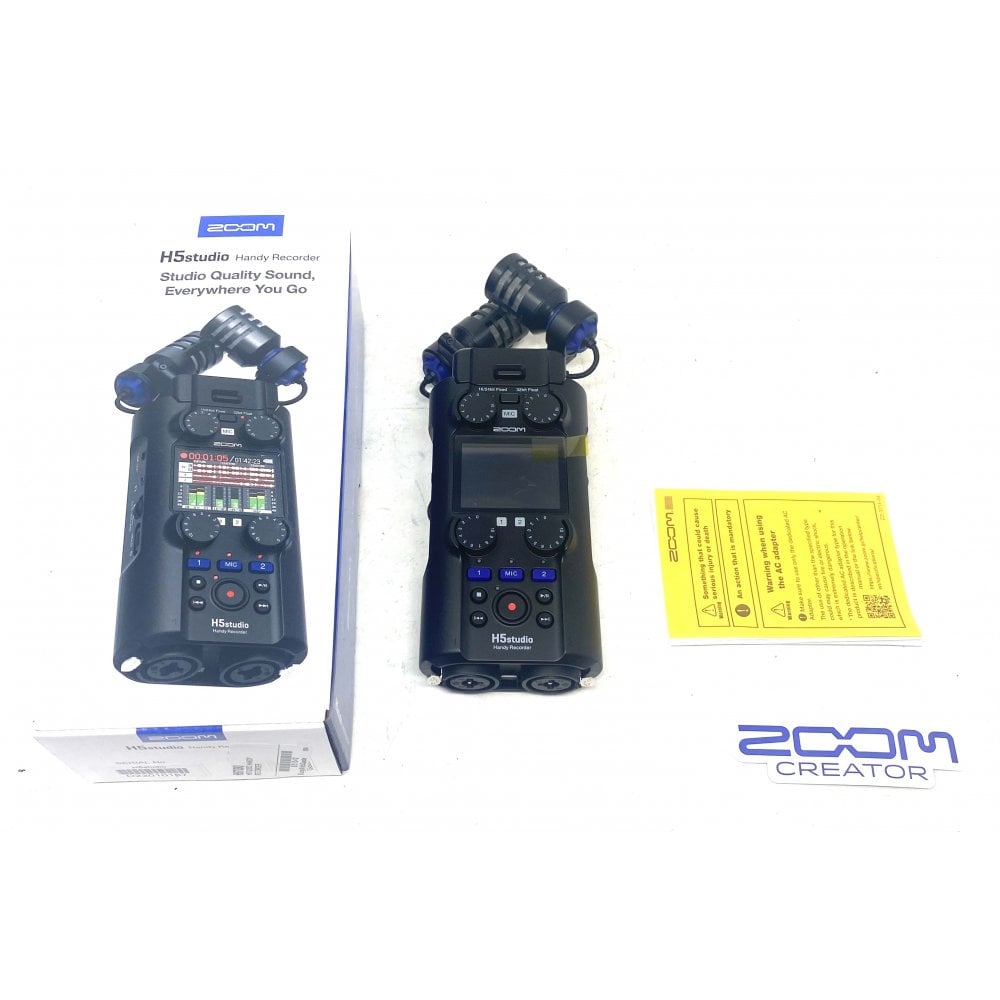

In the box:

1x Zoom H5 Studio Handy Recorder
