IDX A-Vmicro2PD IMicro Hot Swap Plate with 2 x D-Tap, 1 x 45W USB-C PD Outputs

View All IDX

IDX A-Vmicro2PD IMicro Hot Swap Plate with 2 x D-Tap, 1 x 45W USB-C PD Outputs

code: A-Vmicro2PD

£299.00
Secure yours with a deposit of
RRP: £300.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Dual V-Mount Plate, 154W Maximum ·
1x USB PD and 1x D-Tap Output
Sequential Charge and Discharge · Up to 80W D-Tap and 45W USB PD Output (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A)
Works with IDX V-Mount Ch

Description
Specification
Reviews
(0)

IDX A-Vmicro2PD IMicro Hot Swap Plate with 2 x D-Tap, 1 x 45W USB-C PD Outputs

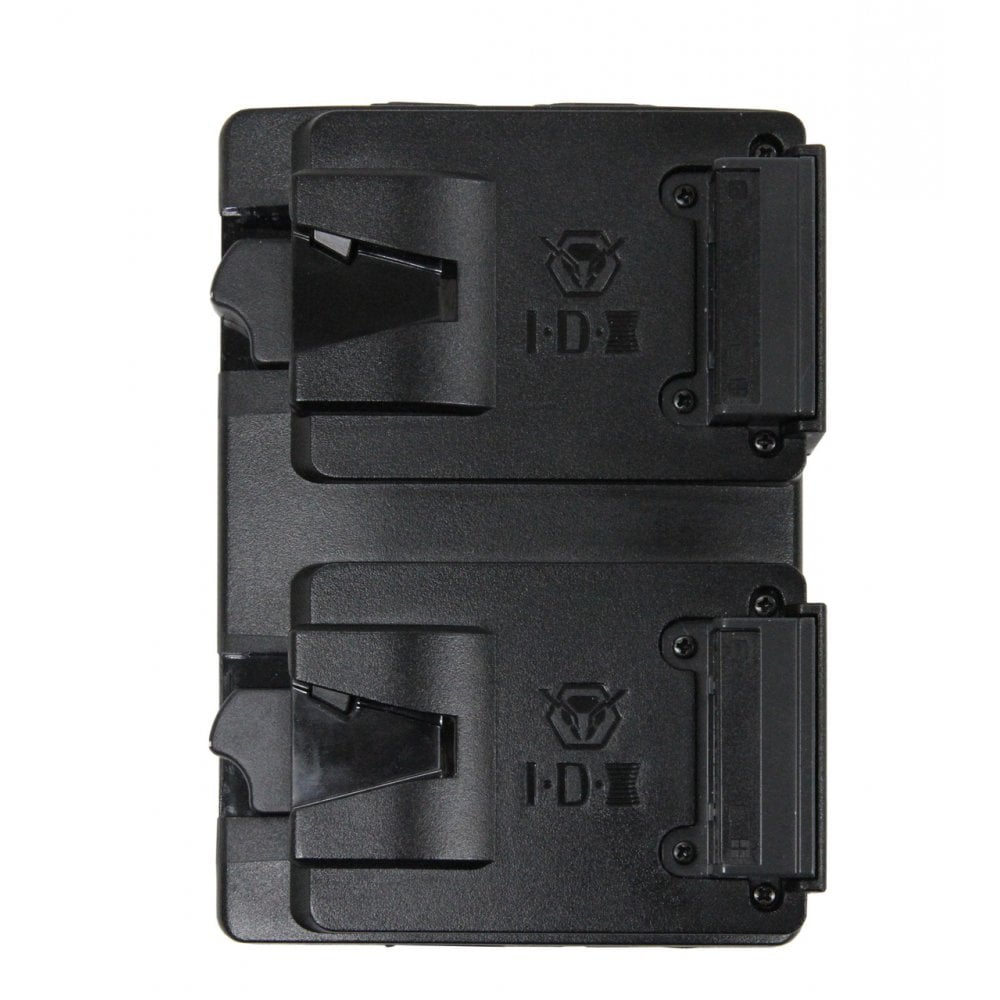

The A-Vmicro2PD is the next generation of the V-Mount hot swap plate to accommodate 2x Imicro batteries. Discharges one battery at a time, and will automatically switch to the next battery. Able to manually select discharging battery as well. The A-Vmicro2PD plate features D-Tap outputs with a maximum output of 80W to power your camera, lights, or other camera accessories. It also features one USB PD output is 45W, and it enables to supply high power to DSLRs and other video-related equipmetn.

Output Connectors:	(2) D-Tap, (1) USB-C PD
D-Tap:	Battery through voltage, 80W max
USB-C:	DC 5V / 2.3A max
Compatibility:	IDX Imicro Battery
Battery Connection Terminal Rating:	154W max (16.8V/ 9.2A~11V/14A)
Main Connector Rating:	154W max (16.8V/ 9.2A~11V/14A)
Ambient Temperature:	Charge: 0C~40C (10C~30C recommended) Discharge: -20C~45C (10C~40C recommended)
Included Accessories:	(4x) M3 x 10 Double SEMS screws
Weight	0.62 lbs
