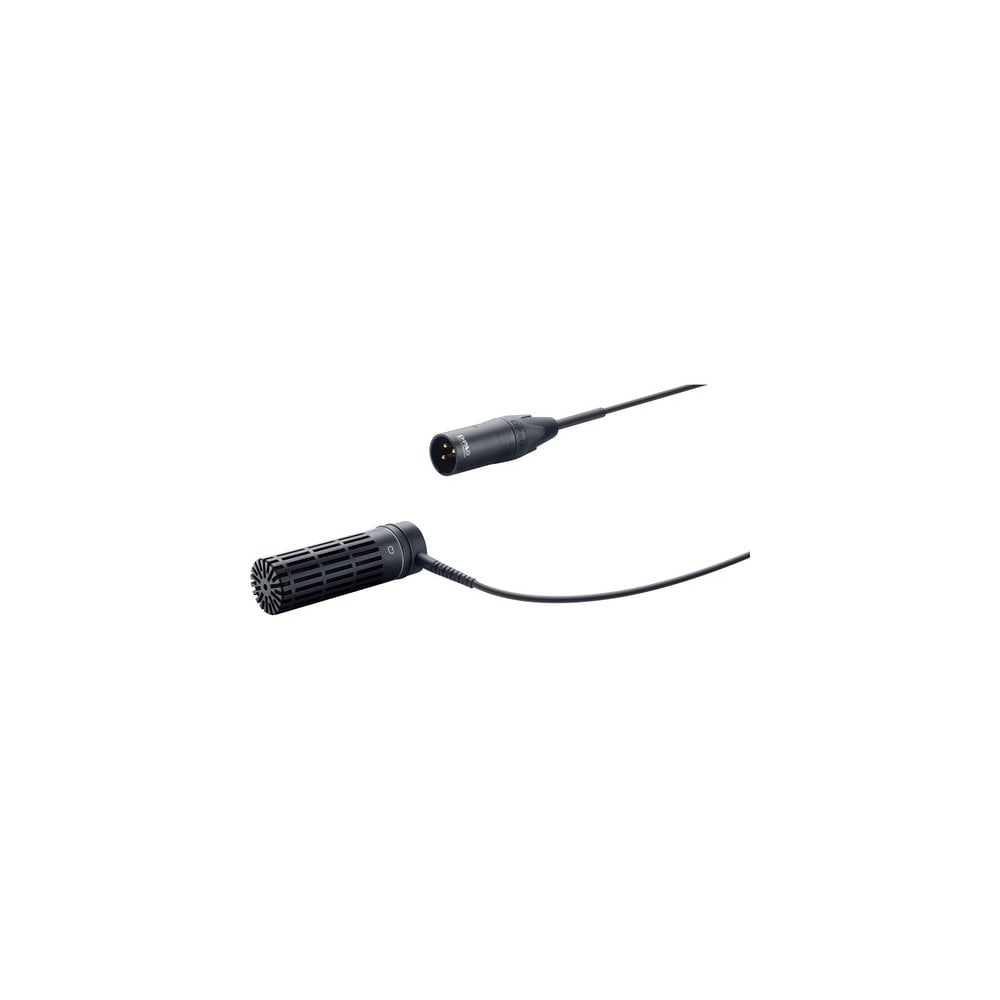

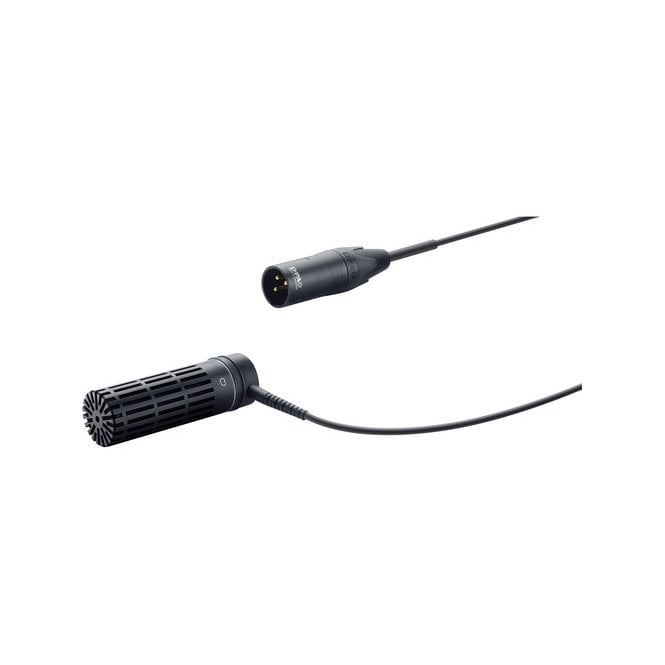

DPA d:dicate 2011ES Twin Diaphragm Cardioid Mic, Side Cable, XLR

code: 2011ES
  • £650.00
  • RRP: £650.00
Item Available | Usually dispatched within 24 hours


  • Twin Diaphragm Capsule
  • Cardioid Polar Pattern
  • 20 Hz to 20 kHz Frequency Range
  • Modular Capsule Design
  • 48V Phantom Power
  • Ultra-Compact Appearance
  • Foam Windscreen is Included
  • Suspension Mount is Included

DPA 2011ES (2011/ES, 2011 ES, 2011_ES, 2011.ES) d:dicate 2011ES Twin Diaphragm Cardioid Mic, Side Cable, XLR

The 2011ES Cardioid Microphone, Active Side Cable from DPA is designed for capturing audio and can be used in various environments, including theater, recording studios, broadcast TV, and similar applications. It features a cardioid directional pattern and a frequency range of 20 Hz to 20 kHz. The microphone contains an MMP-E active cable preamp, which splits amplification and phantom power duties. Additionally, the microphone offers a modular capsule with high-quality directivity control and radio frequency interference rejection.

The 2011ER capsule is also suitable for capturing instruments in sound reinforcement applications. The capsule's twin diaphragm is designed to provide a fast impulse response and large frequency bandwidth, resulting in low inherent noise. The microphone's modular design allows users to manually switch optional capsules for enhanced versatility and performance. The preamp terminates with a 12mm attachment at one end and an XLR connector at the other. The 2011ER features a compact appearance and includes a SM4000-C Suspension Mount.

View More Details

Analog Performance

  • Operating Principle Pressure Gradient
  • Transducer Condenser
  • Polar Pattern Cardioid
  • Frequency Range 20 Hz to 20 kHz
  • Signal to Noise Ratio 74 dB A-Weighted
  • Equivalent Noise Level 20 dB A-Weighted
  • 33 dB ITU-R 468
  • Maximum SPL 144 dB SPL
  • THD < 1%
  • Impedance 100 Ohms
  • Load Impedance 2 kOhms
  • Sensitivity -40 dB
  • CMRR 40 dB
  • Dynamic Range 117 dB


  • Output Connectors 1 x 3-Pin XLR
  • Operating Current Consumption 3.5 µA
  • Operating Voltage 48 V
  • Operating Temperature -40 to 113°F / -40.00 to 45.00°C
  • Operating Humidity 90
  • Length 1.38" / 35 mm
  • Diameter 0.75" / 19 mm
  • Weight 4.06 oz / 115 g
View More Details

In the Box

  • DPA Microphones 2011ER Cardioid Microphone, Active Rear Cable
  • SM4000-C Suspension Mount
