DPA Modular Active Cable, MicroDot, Side, 1.8 m (5.9 ft)

code: MMP-GS
  • £316.04
  • RRP: £305.00
Availability | Usually dispatched within 24 hours
Loading...

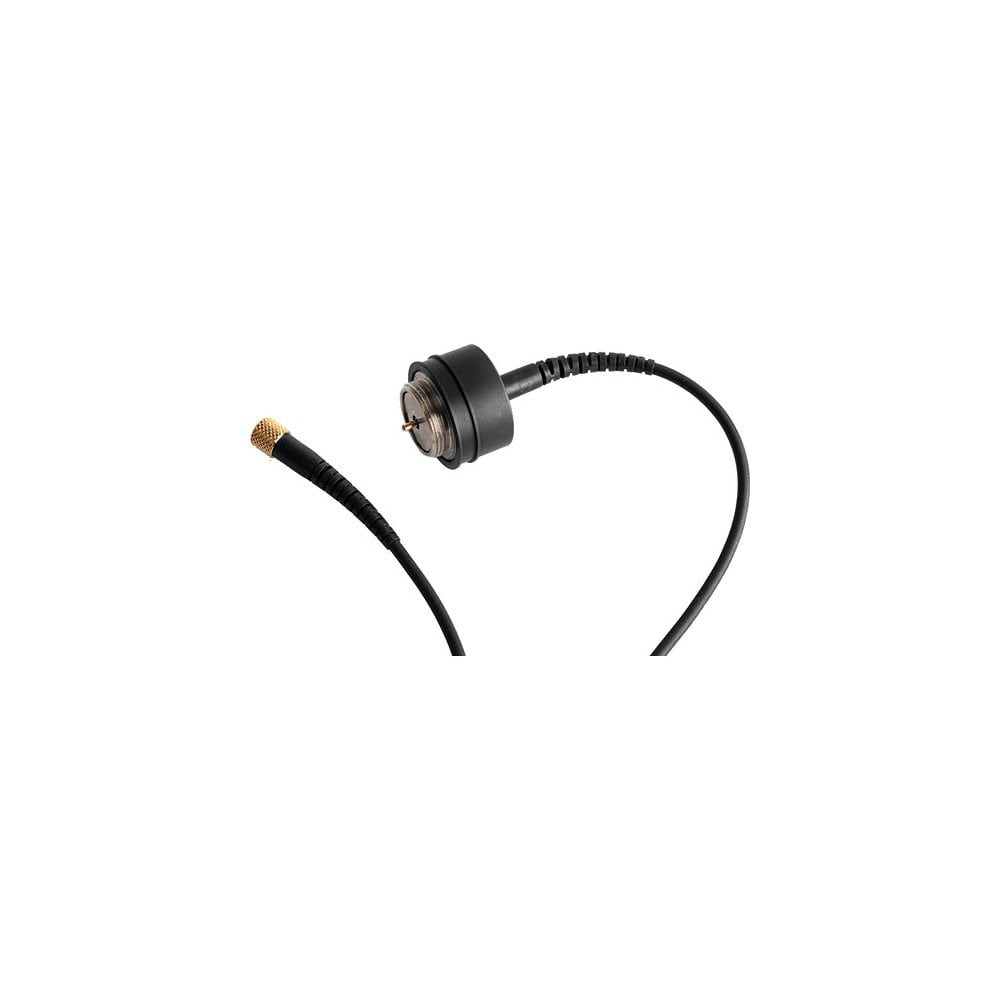

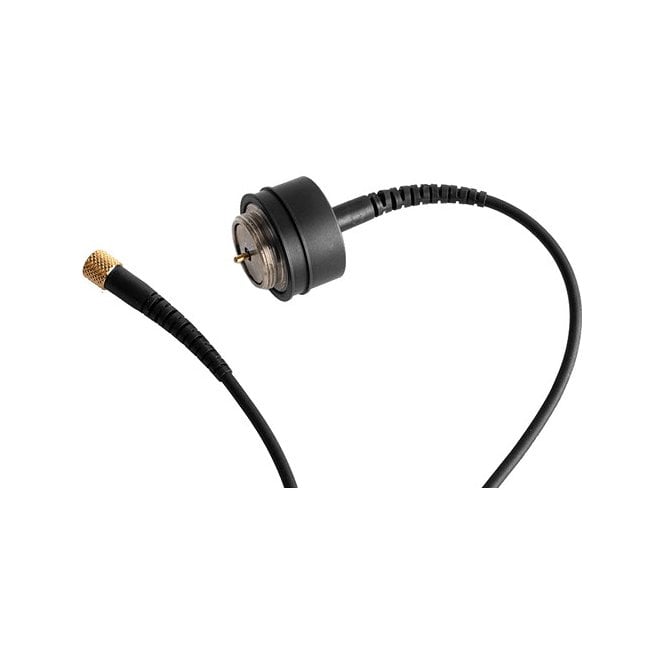

DPA MMP-GS (MMPGS, MMP/GS, MMP GS, MMP.GS) Modular Active Cable, MicroDot, Side, 1.8 m (5.9 ft)

The MMP-G Modular Active Cable is an ultra-transparent preamplifier. It can be combined with any modular capsule in the d:dicate Recording Microphones Series.

The MMP-G also features a MicroDot connector, which allows the microphone to be linked with all leading wireless miking solutions through the extensive range of DPA adapters.

The MMP-G is available in two variations, MMP-GR with the cable extending from the rear or MMP-GS with the cable extending from the side.

For one of the highest-quality wireless instrument miking solutions on the market, attach your favorite d:dicate Microphone Capsule to a MMP-G Modular Active Cable. Then you can seamlessly connect them to the GSM4000 Gooseneck Mount for d:dicate. This combination allows you to create a wireless solution with your favorite d:dicateMicrophone.

  • Output connector: MicroDot
  • Low-cut frequency, -3 dB: < 10 Hz
  • Noise with shorted input A-weighted: 1.0 µV
  • Output voltage, RMS: 1.3 V
  • Output voltage, peak: 1.8V
  • Type of electronic circuit: Active
  • THD @1VRMS, 1kHz: < 0.05 %
  • Dynamic range: 122 dB
  • Output impedance: < 10 Ohms
  • Power supply (for full performance): 5V, 1 mA
  • Color: Black
  • Weight: 1.0 oz. (28 g)
  • Diameter: 0.75" (19mm)
  • Cable length: 5.9ft (1.8m)
  • Temperature range: -40° F to 113° F (-40° C to 45° C)
  • Relative humidity (RH)
  • Up to 90%

Features

  • It can be combined with any modular capsule in the d:dicate Recording Microphones Series.
  • This combination allows you to create a wireless solution with your favorite d:dicate Microphone.
  • Then you can seamlessly connect them to the GSM4000 Gooseneck Mount for d:dicate.
