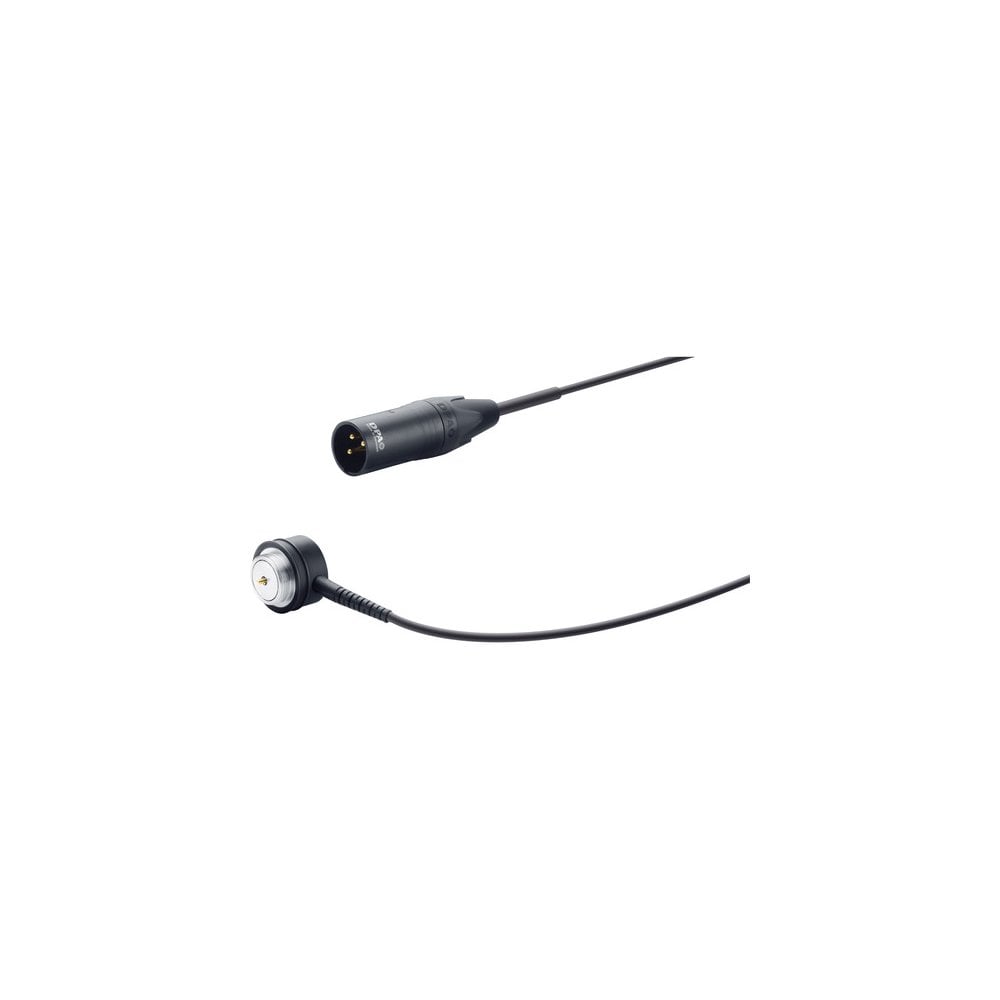

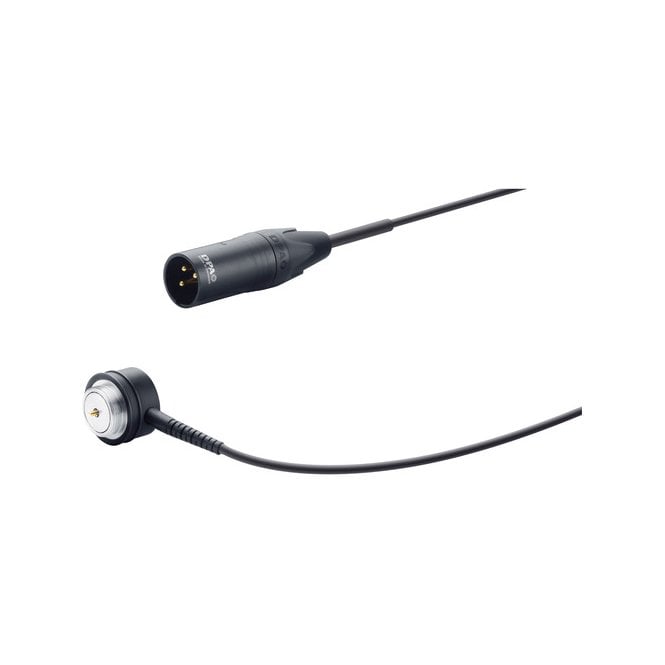

DPA Modular Active Cable, XLR, Side, 3 m (9.8 ft)

code: MMP-ES
  • £316.04
  • RRP: £305.00
Availability | Usually dispatched within 24 hours
Loading...

Features

  • Great for Hanging and Table Microphones
  • Short 12mm Housing
  • Built-In 3 Meter Cable


DPA MMP-ES (MMPES, MMP/ES, MMP ES, MMP.ES) Modular Active Cable, XLR, Side, 3 m (9.8 ft)

The d:dicate MMP-ES Modular Active Side Cable by DPA Microphones is a microphone preamp. It is used with any d:dicate modular capsule for capturing audio in applications such as with hanging mics or low-profile table or instrument mics. The MMP-ES features a high quality preamp built with a 12mm housing and a 3-pin XLR connector. The capsule attaches to a cable with a length of 3 meters or optionally up to 30 meters. The preamp features impedance balancing with active drive to reject radio frequency interference. This model is built with a side mounted cable.

  • The preamp is ultra transparent and features the DPA designed impedance balancing with active drive to reject radio frequency interference
  • Can be combined with any DPA d:dicate modular capsule
  • Output Connector XLR-3M, pin 1 shield, pin 2 signal + phase, pin 3 - phase
  • Low-Cut Frequency -3 dB: 15 Hz
  • Noise With Shorted Input, A-weighted: 0.6 µV
  • Output Voltage RMS: 2.2 V
  • Peak: 3.1 V
  • Type Of Electronic Circuit Active
  • Total Harmonic Distortion (THD) At 1VRMS, 1kHz: < 0.2 %
  • Dynamic Range 131 dB
  • Output Impedance 100 Ω
  • Cable Drive Capability 324' (100 m)
  • Minimum Load Impedance 2 kΩ
  • Common Mode Rejection Ratio > 40 dB
  • Power Supply For Full Specifications: 48 V Phantom power (± 4 V)
  • Current Consumption 3.5 mA
  • Output Balance Principle Impedance balancing
  • Temperature Range -40 to 113°F (-40 to 45°C)
  • Relative Humidity Up to 90 %
  • Dimensions (L x Diam) 118 x 0.75" (3000 x 19 mm)
  • Weight 3.2 oz (91 g)

In the Box

  • DPA Microphones d:dicate MMP-ES Modular Active Side Cable
