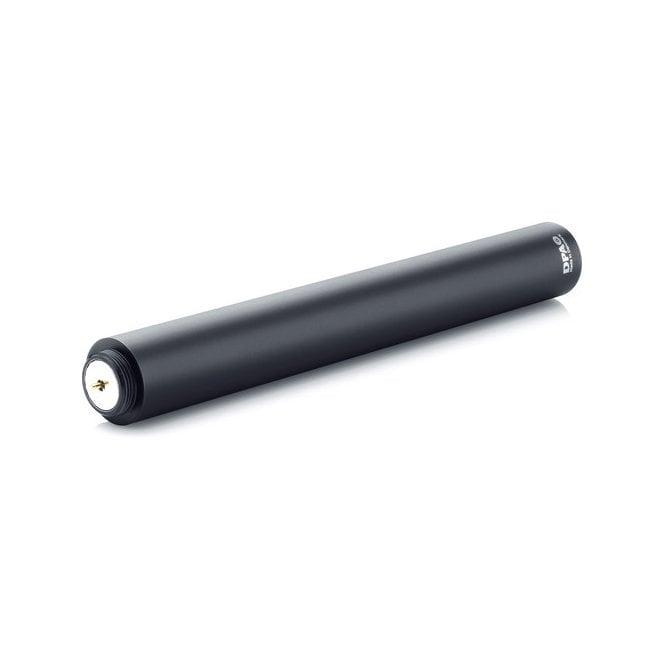

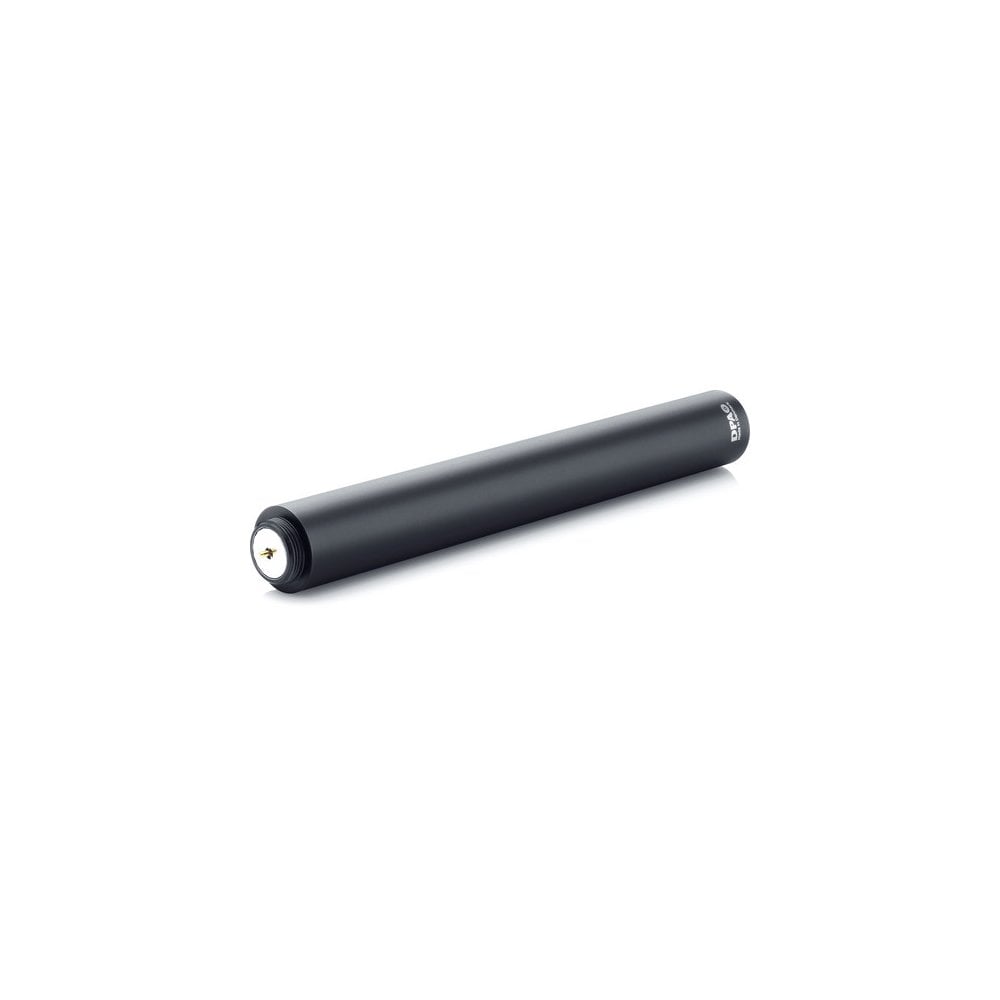

DPA MMP-A Microphone Preamp

code: MMP-A

Status | Usually dispatched within 24 hours

DPA MMP-A (MMPA MMP A MMP/A) Microphone Preamp

Ultra transparent transformerless preamplifier with active drive for impedance balancing.

Combine this preamp with any capsule in the DPA d:dicate Recording Microphones series.

Specifications for d:dicate™ MMP-A Preamplifier

Output connector:	XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Low-cut frequency, -3 dB:	8 Hz
Noise with shorted input, A-weighted:	0.5 µV
Output voltage, RMS:	> 5 V
Output voltage, peak:	> 16 V
Type of electronic circuit:	Active
THD@1VRMS, 1kHz:	< 0.2 %
Dynamic range:	138 dB
Switchable attenuator:	0 dB, -20 dB
Output impedance:	< 200 ohm
Output balance principle:	Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR):	> 60 dB
Power supply (for full specifications):	48 V Phantom power (± 4 V)
Current consumption:	2.8 mA
Color:	Matte black
Weight:	140 g (4.9 oz)
Diameter:	19 mm (0.75 in)
Length:	147 mm (5.8 in)
Cable drive capability:	100 m (328 ft)
Temperature range:	-40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH):	Up to 90 %
