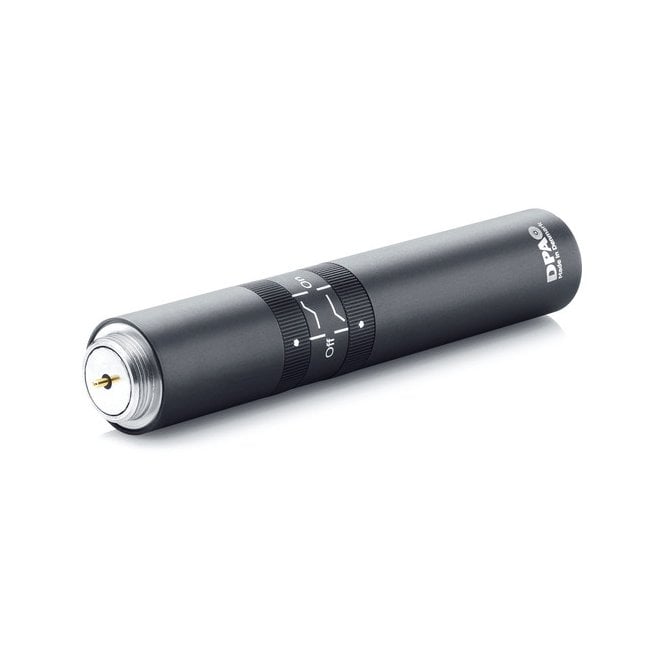

DPA MMP-B Lightweight Microphone Preamp, Low Cut and High Boost Option

code: MMP-B

Status | Usually dispatched within 24 hours

DPA MMP-B (MMPB MMP B MMP/B) Lightweight Microphone Preamp, Low Cut and High Boost Option

Preamplifier with low cut and high boost filters.

Combine this preamp with any capsule in the DPA d:dicate Recording Microphones series.

Specifications for d:dicate™ MMP-B Preamp, low cut and high boost

Output connector:	XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase
Low-cut frequency, -3 dB:	50 Hz
Noise with shorted input, A-weighted:	1.1 µV
Output voltage, RMS:	> 1.8 V
Output voltage, peak:	> 2.5 V
Type of electronic circuit:	Active
THD@1VRMS, 1kHz:	< 0.5 %
Dynamic range:	124 dB
Switchable filters:	High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
Output impedance:	< 150 ohm
Output balance principle:	Signal balanced
Common Mode Rejection Ratio (CMRR):	> 40 dB
Power supply (for full specifications):	48 V Phantom power (± 4 V)
Current consumption:	4.5 mA
Color:	Matte black
Weight:	38 g (1.3 oz)
Diameter:	19 mm (0.75 in)
Length:	99 mm (3.9 in)
Cable drive capability:	100 m (328 ft)
Temperature range:	-40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH):	Up to 90%
