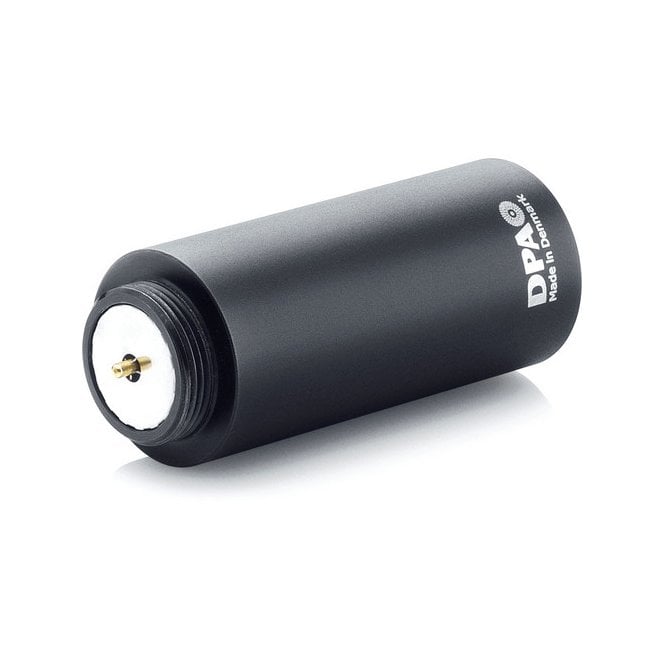

DPA MMP-C Compact Microphone Preamp

code: MMP-C

Status | Usually dispatched within 24 hours

DPA MMP-C (MMPC MMP C MMP/C) Compact Microphone Preamp

Ultra-compact preamp with active drive for impedance balancing.

Has a slightly softer character than the other preamps in the DPA d:dicate Recording Microphones series.

Combine this preamp with any capsule in the series.

Specifications for d:dicate™ MMP-C Compact Preamp

Output connector:	XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Low-cut frequency, -3 dB:	15 Hz
Noise with shorted input, A-weighted:	0.6 µV
Output voltage, RMS:	> 4 V
Output voltage, peak:	> 5.6 V
Type of electronic circuit:	Active
THD@1VRMS, 1kHz:	< 0.2 %
Dynamic range:	136 dB
Output impedance:	< 200 ohm
Output balance principle:	Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR):	> 50 dB
Power supply (for full specifications):	48 V Phantom power (± 4 V)
Current consumption:	2.8 mA
Color:	Matte black
Weight:	40 g (1.4 oz)
Diameter:	19 mm (0.75 in)
Length:	41 mm (1.6 in)
Cable drive capability:	100 m (328 ft)
Temperature range:	-40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH):	Up to 90 %
