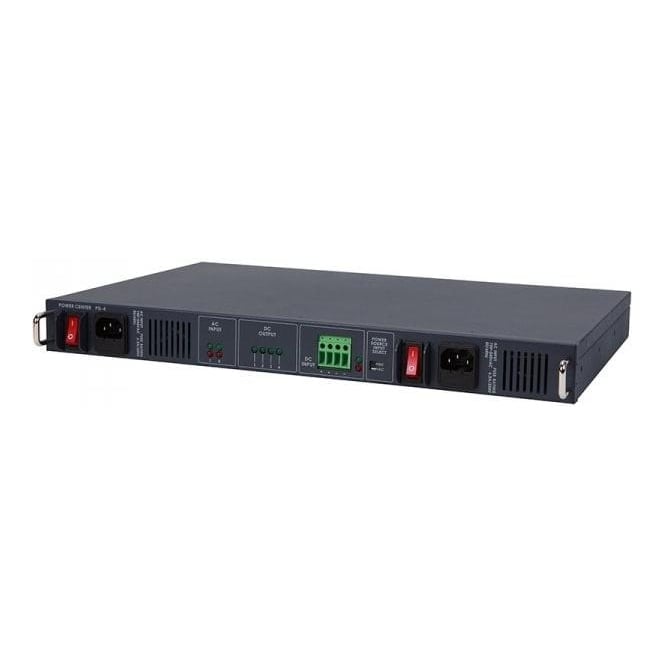

Datavideo DATA-PD4A Redundant Power Distribution System

code: DATA-PD4A
  • £1,368.65
  • RRP: £1,648.00
Status   |   Usually dispatched within 24 hours

DATAVIDEO DATA-PD4A (DATAPD4A DATA PD 4 A DATA/PD4A) PD-4A 1U Redundant Power Distribution  System for Mobile Video Studio

Redundant Power Center

This unit has two AC inputs as well as a DC input, and can offer 4 12V 5Amp + 2 12V 10Amp DC outputs via XLR. The unit also features a built-in time delay power on control to initiate each DC output terminal in sequence, and installed with an auto-recover  fuse in each input and output to protect everything connected.



  • Ideal for any installed or Mobile Studio
  • Input Connections
     - AC: 100-240V AC Max 6.3A, 50Hz or 60Hz (2x AC Input w/ Power Switch)
     - DC: 12V 300W
  • Output Connections
     - x3 12v 5A XLR DC Female
     - x2 12v 10A XLR DC Female
  • Redundant Power
    With two AC power supplies, the PD-4 will still supply energy to your devices, even if one power source fails.
  • Built-in time delay power-on control to initiate each DC output termal in sequence
  • 19" 1U rack size
Be the first to review DATA-PD4A Redundant Power Distribution System. Write a review ›
