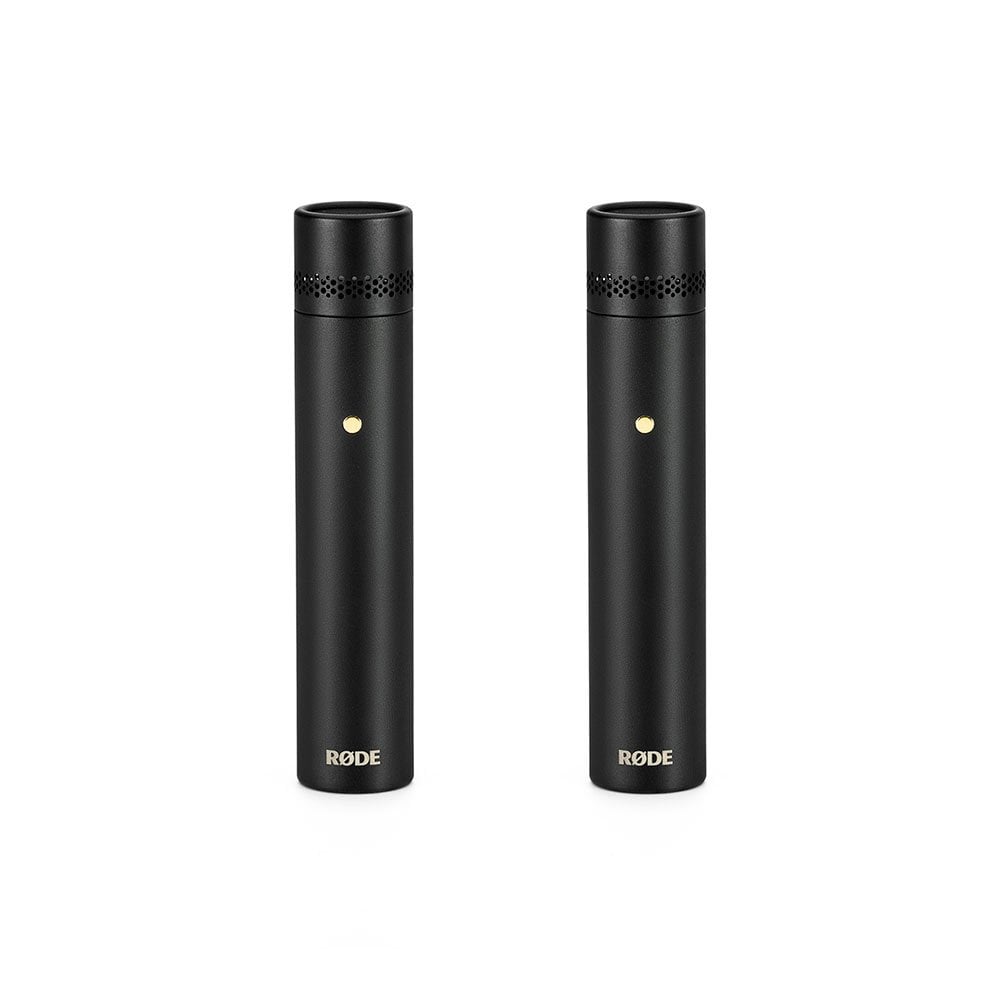

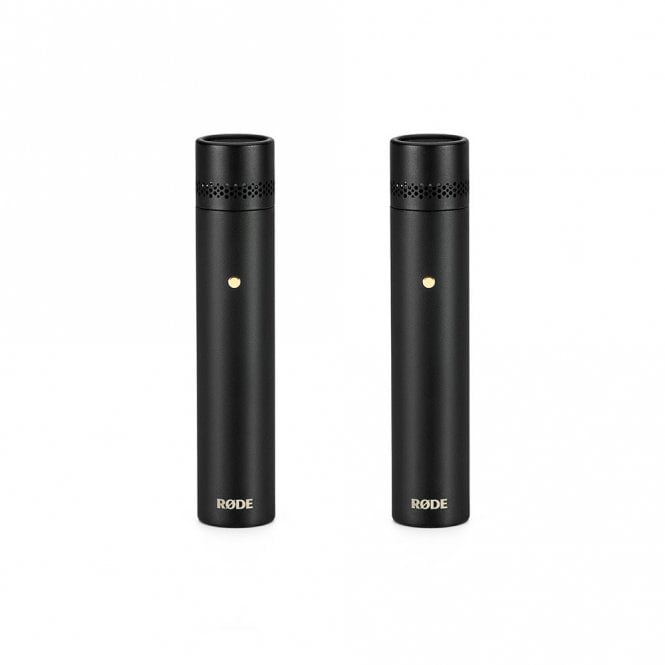

Rode TF5MP Premium matched pair condenser cardioid microphones

Rode RODETF5MP (RODE-TF5MP, RODE/TF5MP, RODE TF5MP, TF-5MP, TF-5) Premium matched pair condenser cardioid microphones

The TF-5 represent a new standard in small diaphragm condensers. The all-new capsule is engineered to sub-micron tolerances, giving unprecedented consistency of tone and response.

The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller ‘pencil mics’ of this type, making the TF-5 uniquely versatile.

ACOUSTIC & ELECTRICAL SPECIFICATION

• Acoustic Principle: Externally biased condenser
• Active Electronics: JFET impedance converter with bipolar output buffer
• Polar Pattern: Cardioid
• Frequency Range: 20Hz - 20kHz
• Frequency Response: 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB
• Output Impedance: 63Ω
• Signal to noise Ratio: 80 dB
• Equivalent Noise: 14 dB SPL (A-weighted, as per IEC651)
• Input SPL @ 1% THD: 120 dB SPL (1kHz @ 1% THD, 600Ω load)
• Sensitivity: -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)
• Dynamic Range: 112.6 dB (1kHz @ Max SPL)
• Power Requirements: 7mA @ 48V phantom power

MECHANICAL SPECIFICATION

• Weight (g): 114g (single microphone)
• Dimensions: Length: 98.7mm Diameter: 20mm

In the Box

• 2 x TF-5
• Premium matched pair condenser cardioid microphones
• 2 x Clip
• Stereo Bar
• 2 x Mic Windshield
• Handbook
