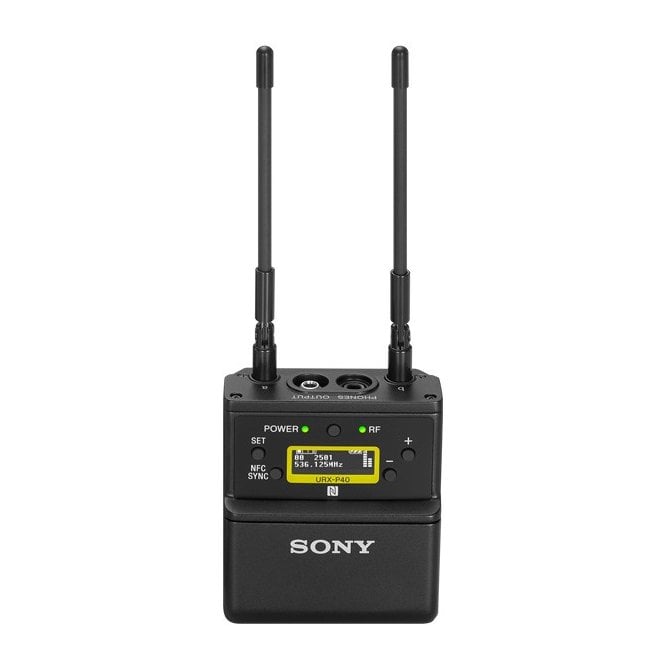

Sony URX-P40-K42 Portable UWP-D Receiver
Sell Your Gear
warranty on this product

Sony URX-P40-K42 Portable UWP-D Receiver

code: URX-P40-K42
  • $348.07
  • RRP: $471.11
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features:

Digital audio processing for high sound quality

  • Sony's enhanced digital audio processing technology ensures high sound quality and better response performance to transient signals. A new [optional] digital audio interface enables direct digital sound recording with many professional Sony camcorders and cameras with Alpha interchangeable lenses via the MI shoe adapter (Multi Interface) SMAD-P5. The A / D and D / A conversion steps are bypassed to ensure excellent sound quality.

Seamless integration of camcorders

  • Integration with compatible * Sony camcorders (requires MI shoe adapter SMAD-P5) displays audio information such as RF level meter, audio mute status and transmitter low battery alarm in the camera's viewfinder. The SMAD-P5 transmits audio signals from the receiver to the camera without the need for a cable connection. The radio receiver can also be supplied with power via the camera. The synchronized switching on / off between the camera and receiver ensures more effective energy management.

* For compatibility information, see the details of the SMAD-P5.

Quick, easy frequency setting

  • The unique, user-friendly NFC-SYNC function from Sony enables a fast, intuitive and secure channel setting between transmitter and receiver.

Lightweight, Compact Design

  • The reduced system size and weight allow excellent portability in a wide variety of applications including news, documentaries, weddings and remote productions. The compact size and low weight of the receiver make it an ideal partner for small camcorders and digital cameras with interchangeable lenses.

Sony URX-P40-K42 (URX-P40/K42, URX-P40_K42, URXP40K42, urp_p40-k42, urx-p40/k42) Portable UWP-D Receiver

The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today's content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources. Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings. High quality sound with Sony digital audio processing NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers) Auto gain mode volume control 15 dB gain volume boost mode for off-mic audio Line input 48V power supply Transmitter frequency sent to receiver for matching multiple receivers to one transmitter Variable muting function Compatibility with Sony WL-800/UWP/UWP-D series High visibility OLED display, ideal for indoor/outdoor use USB connector for power supply.

  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Reception Type: True diversity method
  • Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)

Carrier Frequencies:

  • 14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25) 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51)
  • 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
  • 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz
  • KR : 925.125 MHz to 937.500 MHz
  • Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model)
  • Signal-to-Noise Ratio: 60dB (1kHz sine wave, 5kHz modulation)
  • Distortion (T.H.D): 0.9% or less (1kHz sine wave, 5kHz modulation)
  • Audio Delay: Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output)
  • Audio Output Connector: 3.5mm diameter 3-pole locking mini jack, external connection
  • Audio Output Level: -60 dBV (3.5mm diameter 3-pole locking mini jack, analog output, 0dB audio output level) -20 dBFS (external connection, digital output, 0dB audio output level) -50 dBFS (external connection, analog output, 0dB audio output level)
  • Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
  • Headphone Output Connector: 3.5mm diameter mini jack
  • Headphone Output Level: Max. 10mW (16-ohm)
  • Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz
  • DisplayOLED Power Requirement: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
  • Battery Life*: Approx. six hours. *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Storage/Transport Temperature: –20 °C to +55 °C (–4 °F to +131 °F)
  • Dimensions: 63 × 70 × 31 mm (2 1/2 × 2 7/8 × 1 1/4 in.) (W / H / D) (excluding antenna)
  • Mass: Approx. 131 g (4.6 oz) (excluding batteries)

In the Box

  • Sony URX-P40 UWP-D Compact Receiver
