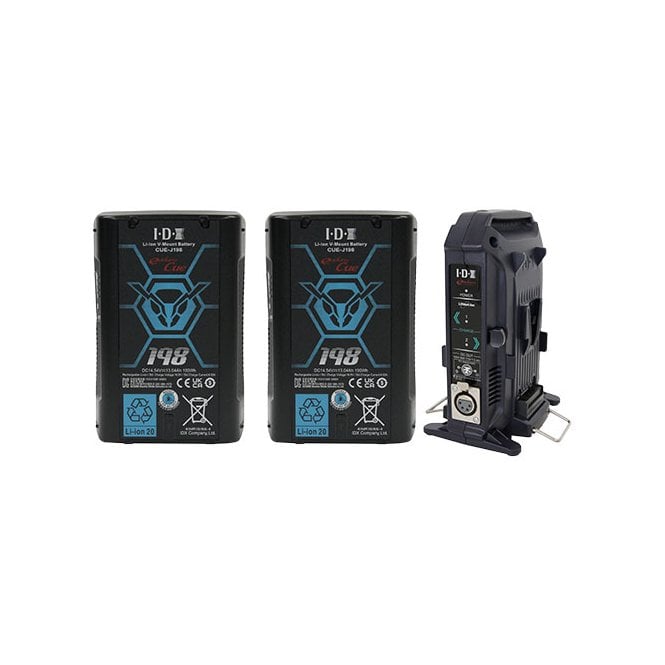

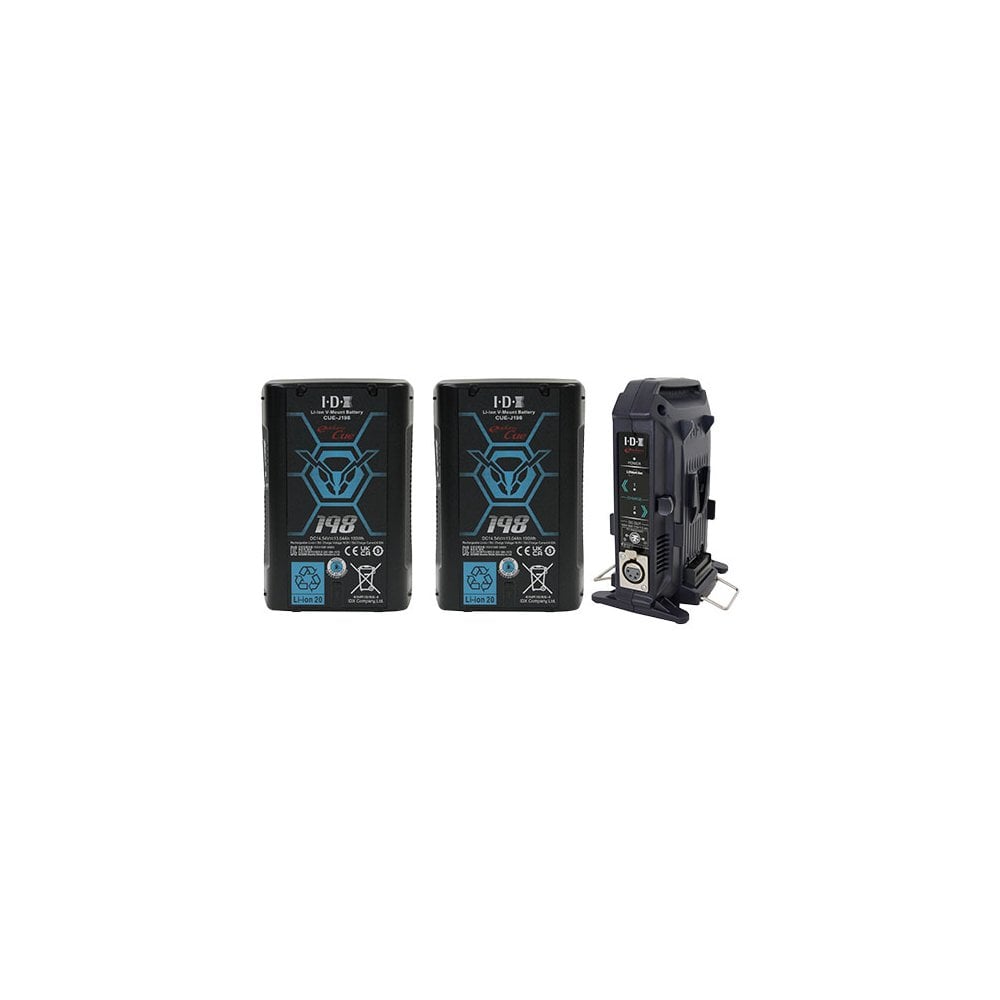

IDX CUE-J198 V-Mount Battery with VL-2X Charger Kit

View All IDX

IDX CUE-J198 V-Mount Battery with VL-2X Charger Kit

code: EC-J198-2X

$960.12
Secure yours with a deposit of
RRP: $960.12
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Features:

190Wh capacity
Capable of handling up to 14A/156W loads
80W D-Tap output (unregulated)
4 Power Indicator LEDs
Lithium Ion V-Mount battery designed to meet Japan's stringent PSE safety regulations for enhanced mechanical and electrical safety
Battery circuit protection ensures the CUE-J198 is fully protected against common causes of misuse, guarding against over-charge, over-discharge, and over-current
The highest-grade Lithium Ion cells are used to ensure the CUE-J198 is one of the most reliable batteries on the market.
Fully compatible with all ENDURA V-Mount chargers and accessories
Environmentally friendly and recyclable

Description
Specification
Included In Box
Reviews
(0)

IDX EC-J198-2X (EC-J198/2X, EC/J198/2X, ECJ1982X, EC J198 2X) CUE-J198 V-Mount Battery with VL-2X Charger Kit

The CUE-J198 utilises the latest lithium-ion battery technology that allows IDX to increase the capacity of these new Cue series products rounding off the CUE-J198 with a 190Wh capacity. Each CUE-J series battery has a single built-in D-Tap output capable of taking an 80W load and a 4-LED power indicator. The CUE-J Series battery products are designed to be an affordable, reliable option for a variety of power needs such as powering cameras, portable production monitors, portable lighting and audio products that require power from a V-Mount plate or D-Tap to XLR cable input.

VL-2X

The VL-2X is a slim, lightweight 2-channel charger with the added advantage of an integrated 36W power supply. With a fanless design, the VL-2X also delivers high-power charging without the noise of a typical quick charger. The VL-2X is a multi-chemistry charger for both Li-ion and Ni-Cad battery types.

CUE-J198

Capacity: 190Wh (14.54V/ 13.07Ah)
Max Output Voltage: 16.8V DC
Nominal Voltage: 14.54V DC
Max Discharge Current: 13.9A
D-Tap: 80W each
End Voltage: 11.2V
Battery Protection: Over charge, Over discharge, Over current
Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)To store: -4°F ~ 113°F (less than 1 month)
Weight: 2.38 lbs

VL-2X

AC Adapter Input Voltage: AC 100-240V 50/60Hz
AC Adapter: UT60-150400
Power Consumption: 140VA max
Quick Charge Current: 1.9A/ max 2.7A
Quick Charge System: Constant current/Constant voltage
DC Output: 36W max
Operating Temperature: 32°F ~ 104°F
Description: 2ch: Sequential
Weight: 0.99 lbs

In The Box

2x CUE-J198 Batteries
1x VL-2X Charger with 4 pin XLR DC Output (36W)
