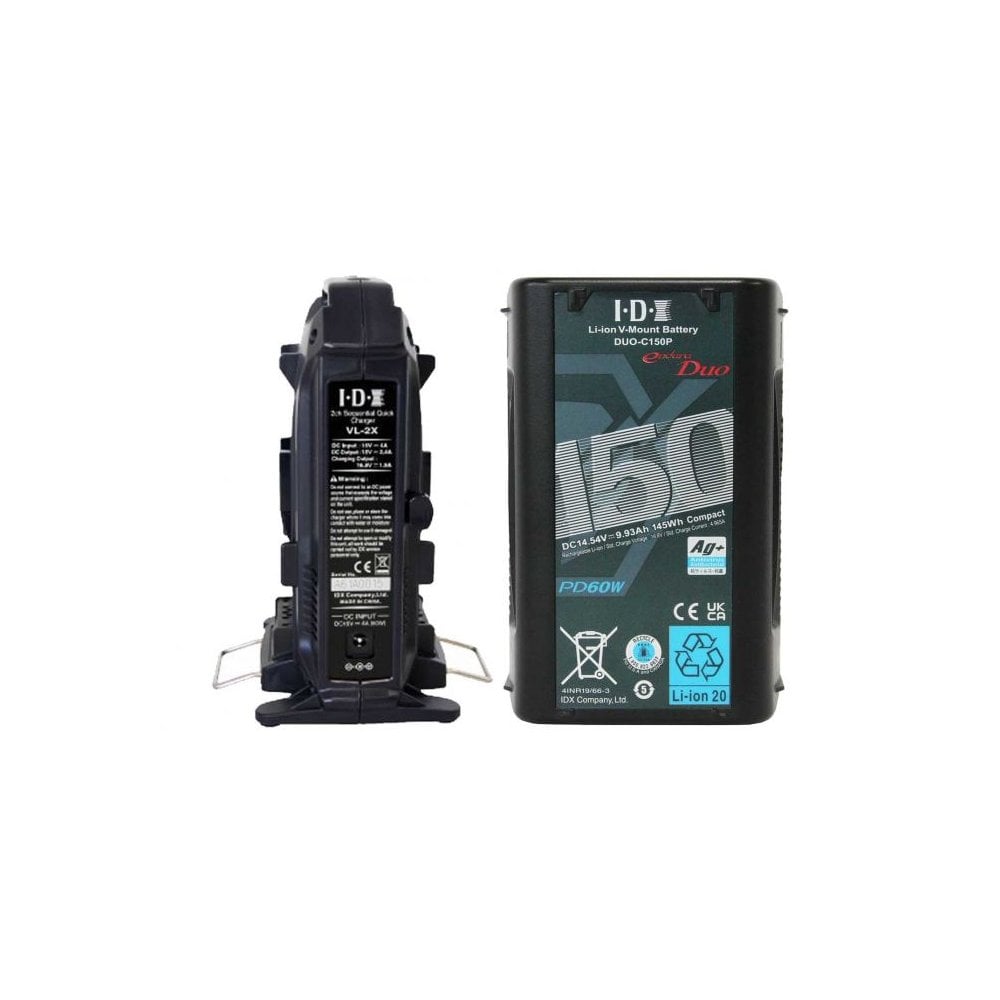

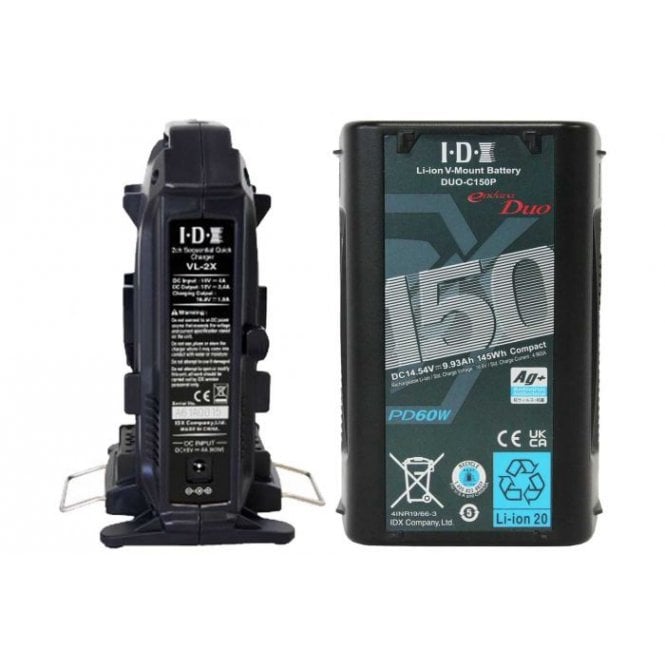

IDX ED-CP150/2X DUO-C150P Batteries and VL-2X Sequential Charger Kit

IDX ED-CP150/2X (ED/CP150/2X, ED-CP150-2X, ED_CP150_2X, EDCP1502X) DUO-C150P Batteries and VL-2X Sequential Charger Kit

IDX DUO-C150 Li-ion V-Mount Battery

The DUO-C150P is the ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150P also includes two on-battery D-Taps and USB-C PD connector to charge battery and power accessories such as monitors, lights, wireless receivers, tablets, phones and  more!

IDX VL-2X 2-Channel Fully Sequential Quick Charger

2-Channel Fully Sequential Quick Charger with AC Power Supply Adaptor (36W DC @ 13.8V)

The VL-2X delivers slim, lightweight 2-channel charging with the added advantage of an integrated 36W power supply. The VL-2X is a multi-chemistry charger for both Li-ion and Ni-Cad battery types. Sequential 2-channel charging in either position. The VL-2X will charge the first battery connected to either VMount channel, automatically switching to charge the second battery after the first is fully charged.

Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-2X will automatically stop charging should any battery reach an over voltage condition.

DUO-C150P Battery

• Battery Capacity: 145Wh (14.54V/ 9.93Ah)
• Max.Output Voltage: 16.8V DC
• Nominal Voltage: 14.54V DC
• Maximum Discharge Current: 14A
• D-Tap: 80W each
• USB: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
• End Voltage: 11V
• Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
• Ambient Temperature: To charge: 0°C ~ 40°C (10°C ~ 30°C recommended), To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended), To store: -20°C ~ 50°C (one month)
• Dimensions: 95(W)x146(H)x59(D)mm
• Weight: 900 grams approx.

VL-2X Sequential Charger

• Input Voltage: AC 100~240V 50/60Hz
• Power Consumption: MAX 140VA
• Quick Charge Current: 1.9A
• Maximum output in DC operation: DC 15V / 2.4A (Max 36W)
• Battery Output: Battery voltage through output/Battery max. discharge current
• Operating Temperature: 0°C ~ 40°C
• Dimensions: 87.4(W) x 183.3(H) x 126.6(D) mm
• Weight: 430g approx.

In The Box

• 2 x DUO-C150P Batteries
• 1 x VL-2X Sequential Charger with 4 pin XLR DC Output (36W)
