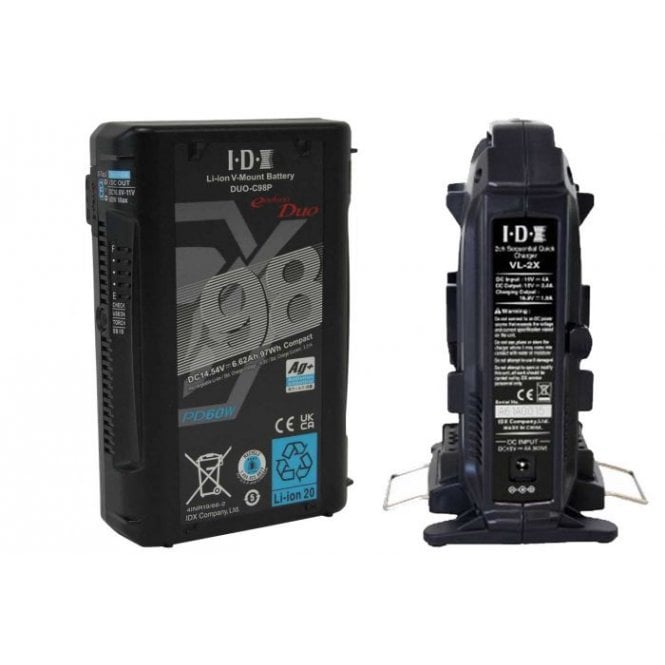

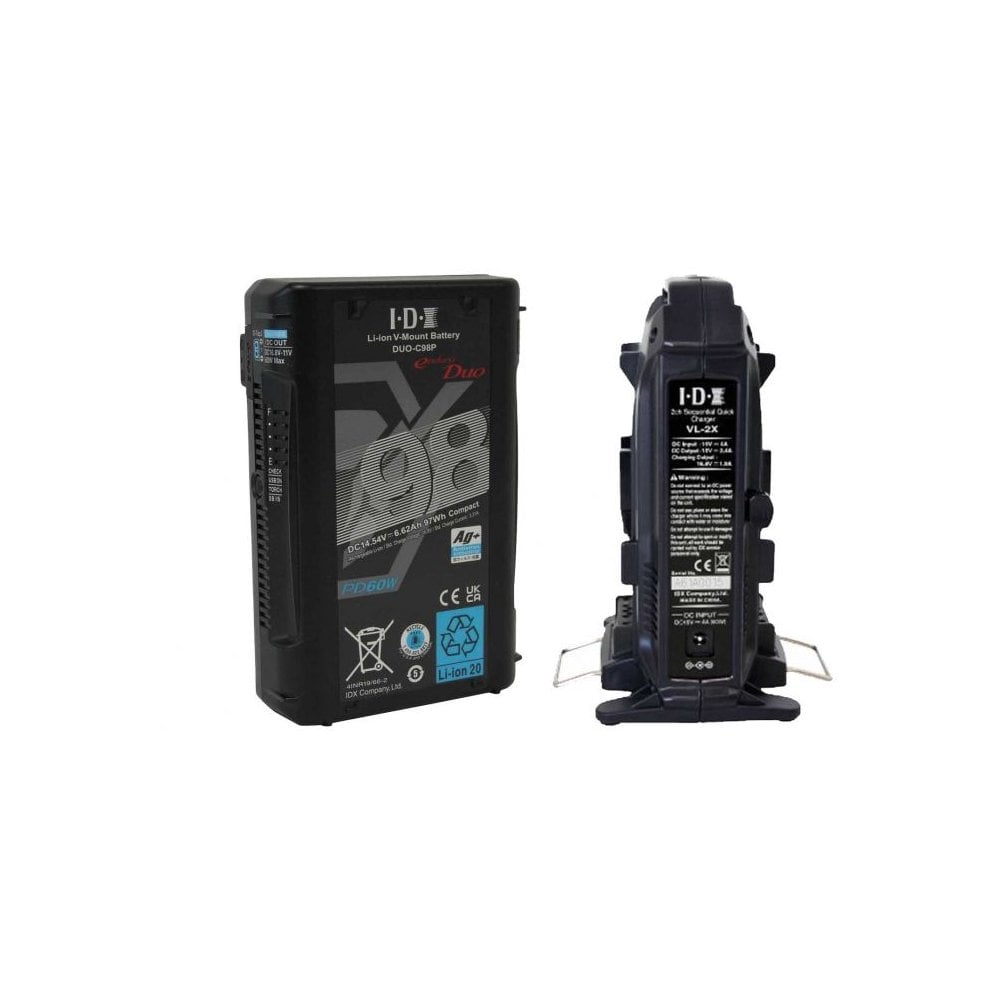

IDX ED-CP98/2X DUO-C98P Batteries and VL-2X Sequential Charger Kit

IDX ED-CP98/2X (ED/CP98/2X, ED-CP98-2X, ED_CP98_2X, EDCP982X) DUO-C98P Batteries and VL-2X Sequential Charger Kit

DUO-C98 96Wh High-Load Battery

The IDX DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 96Wh of capacity to power your professional devices. It is well suited for handheld gimbal and aerial applications, as well as run-and-gun productions where size and weight can become an issue. Battery data information displays in most camera's viewfinders.

The DUO-C98 can handle a combined load of up to 10A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.

VL-2X Sequential Charger

2-Channel Fully Sequential Quick Charger with AC Power Supply Adaptor (36W DC @ 13.8V)

The VL-2X delivers slim, lightweight 2-channel charging with the added advantage of an integrated 36W power supply. The VL-2X is a multi-chemistry charger for both Li-ion and Ni-Cad battery types.Sequential 2-channel charging in either position. The VL-2X will charge the first battery connected to either VMount channel, automatically switching to charge the second battery after the first is fully charged.Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The VL-2X will automatically stop charging should any battery reach an over-voltage condition.

DUO-C98P Batteries

• Battery Capacity: 97Wh (14.54V,6.62Ah)
• Max.Output Voltage: 16.8V DC
• Nominal Voltage: 14.54V DC
• Maximum Discharge Current: 10.5A
• D-Tap: 80W each
• USB: max. 60W (5.0V/3A, 9.0V/3A, 12V/3A, 15V/3A, 20V/3A)
• End Voltage: 11V
• Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
• Ambient Temperature: To charge: 0°C ~ 40°C (10°C ~ 30°C recommended), To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended), To store: -20°C ~ 50°C (one month)
• Dimensions: 95(W)x146(H)x39(D)mm
• Weight: 640 grams approx.

VL-2X Sequential Charger

• Input Voltage: AC 100~240V 50/60Hz
• Power Consumption: MAX 140VA
• Quick Charge Current: 1.9A
• Maximum output in DC operation: DC 15V / 2.4A (Max 36W)
• Battery Output: Battery voltage through output/Battery max. discharge current
• Operating Temperature: 0°C ~ 40°C
• Dimensions: 87.4(W) x 183.3(H) x 126.6(D) mm
• Weight: 430g approx.

In The Box

• 2 x DUO-C98P Batteries
• 1 x VL-2X Sequential Charger with 4 pin XLR DC Output (36W)
