IDX IA-70a System Technology Single Channel DC Power Supply

code: IA-70a
  • £205.00
  • RRP: £270.00
Item Available | Usually dispatched within 24 hours
Loading...

Features

  • 70W Power Supply with 4-Pin XLR Output
  • Adjustable Output from 14.3-15.8 VDC
  • Automatic Overload Protection
  • Low Ripple Noise

IDX IA-70a (IA_70a, IA 70a, IA 70a) System Technology Single Channel DC Power Supply

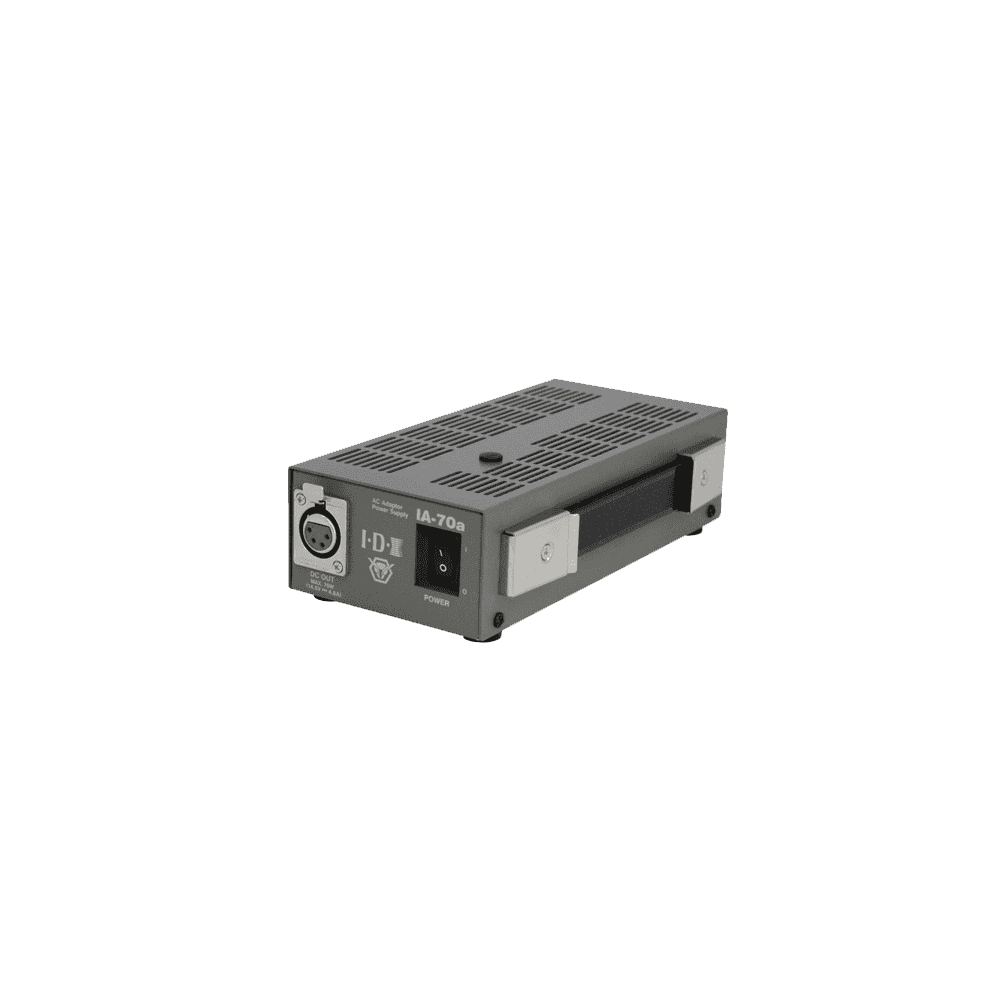

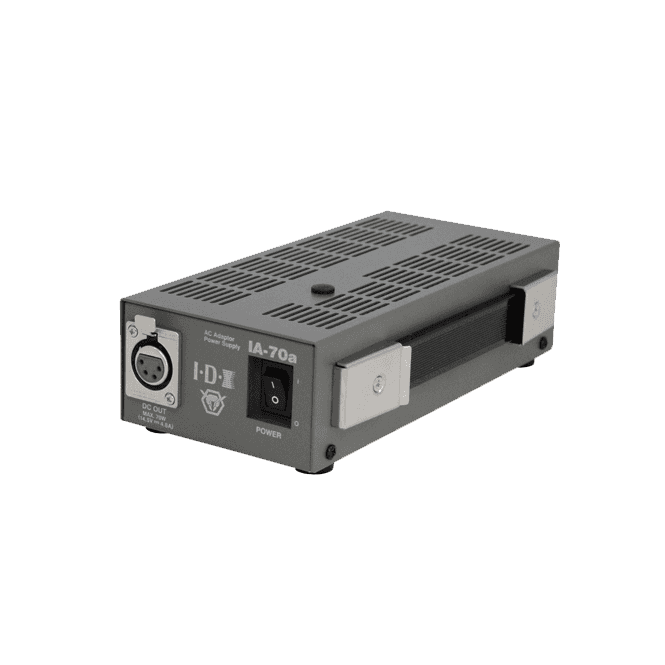

The IDX IA-70a Single Channel DC Power Supply is a 70W AC power supply offering a 4-pin XLR output suitable for use with ENG cameras. It features a rugged yet lightweight metal housing with plenty of ventilation slots, and an integrated carry handle. The power supply outputs a nominal 14.5 VDC, however the output range is adjustable from 14.3 to 15.8 volts, and it supports a 70-watt draw.

The power supply features built-in overload protection that causes the unit to shut itself down in the event of a current overdraw. The IA-70a will also automatically recover after a current overdraw. Although powerful, the unit produces "low ripple noise", allowing you to use it without interfering with nearby electronic devices. It features a metal chassis with ventilation slots, and on/off switch, 4-pin XLR port, and an integrated carry handle. The IA-70a supports worldwide power, so you can take it with you almost anywhere.

View More Details
  • Input Voltage: AC 100-240V 50/60Hz
  • Power Consumption: 170VA max.
  • DC Output: 70W max (14.5V @ 4.8A), Adjustable: 14.3V – 15.8V
  • Protection: Over voltage, Over current, Temperature protection
  • Dimensions: 90(W) x 50(H) x 190(D) mm
  • Weight: 750 grams approx.
View More Details

In the box

  • IA-70a System Technology Single Channel DC Power Supply
View More Details
Be the first to review IDX IA-70a System Technology Single Channel DC Power Supply. Write a review ›
