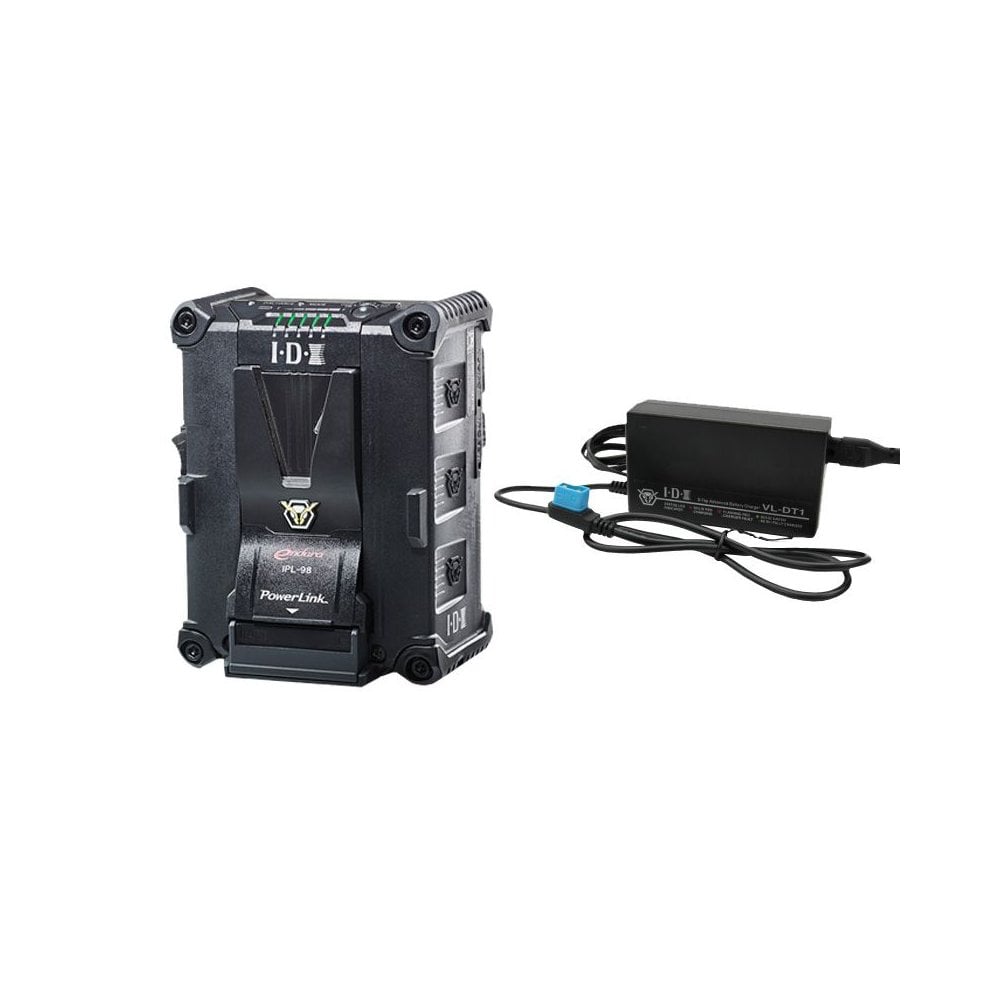

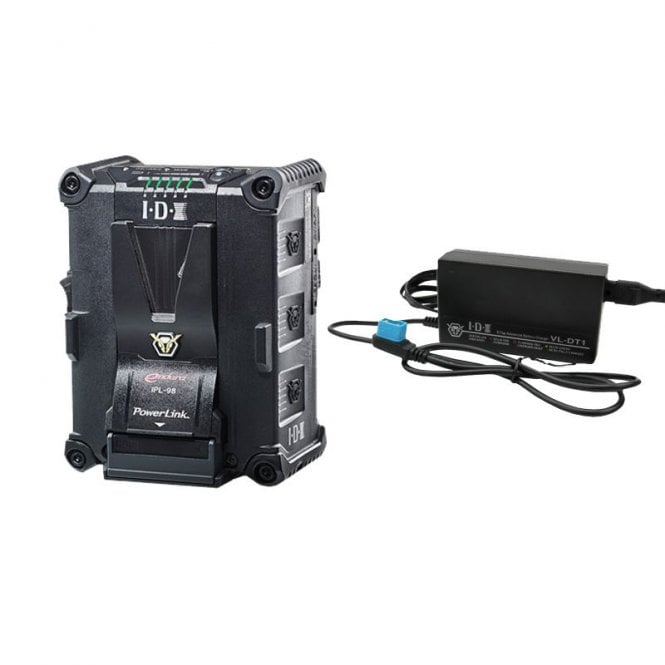

IDX IP-98/1 Single Battery Kit

code: IP-98/1

Status | Usually dispatched within 24 hours

Features

IPL-98:

96Wh capacity
PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery)
Meets passenger aircraft travel regulations
Capable of handling up to 10A loads (14A when linked)‡
80W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
80W D-Tap Output (unregulated)
DC 5.0V /2.3A USB output (auto shut off after 30 minutes of inactivity)
5 Power Indicator LEDs (displaying 10% increments)
Battery circuit protection ensures the IPL-98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
The highest grade Lithium Ion cells are used to ensure the IPL-98 is one of the most reliable batteries on the market
11V auto cut-off prevents over-discharging (while load is applied)
Fully compatible with all ENDURA V-Mount Battery chargers and accessories
Environmentally friendly and recyclable

VL-DT1

Single channel D-Tap Advanced battery charger
Three pin safe charge design
Compact, lightweight design – similar to the size of an AC-Adapter
LED Display is positioned on the top of the charger for quick visual confirmation of charging mode
Universal AC input voltage for worldwide operation.
VL-DT1 compatible batteries: DUO-C95, DUO-C190, DUO-C98, DUO-C98RED, DUO-C198, SB-U50, SB-U98

IDX IP-98/1 (IP_98_1, IP/98/1, IP 98 1) Single Battery Kit

IPL-98 Battery

IPL-98 is the newest stackable battery solution for digital cinema cameras where infinite runtimes are required. With 96Wh capacity, the IPL-98 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Monstro all day long if needed. The IPL-98 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones, etc.

VL-DT1 Charger

The VL-DT1 is a single channel, low cost, portable charger designed to charge batteries with an D-Tap Advanced port. The D-Taps Advanced three pin design monitors the cell status to ensure correct, controlled charging which prolongs battery life.

IPL-98 Battery

Battery Capacity: 96Wh (14.4V/ 6.6Ah)
Max.Output Voltage: 16.8V DC
Nominal Voltage: 14.4V DC
Maximum Discharge Current: 10A (14A when linked)‡
D-Tap: 80W each
USB: DC 5.0V / 2.3A
End Voltage: 11V
Battery Protection: Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature: To charge: 0°C ~ 40°C (10°C ~ 30°C recommended),To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended), To store: -20°C ~ 50°C (one month)
Weight: 730 grams approx

VL-DT1 Charger

In the box
