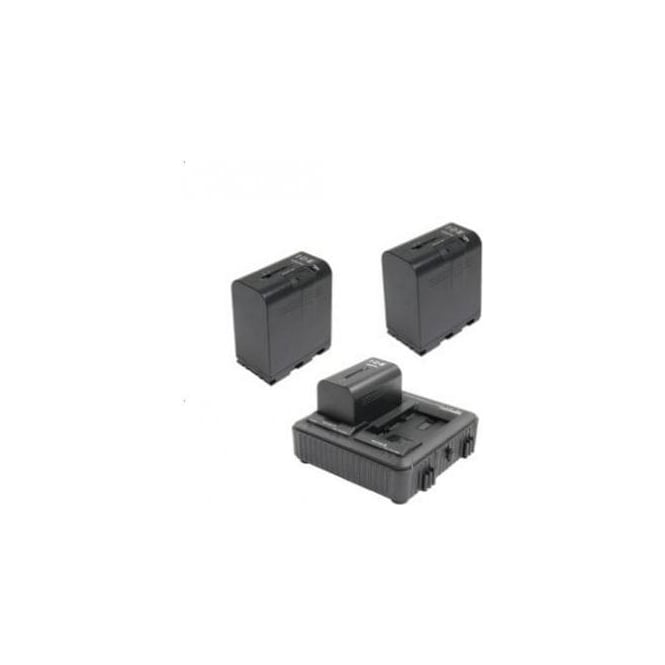

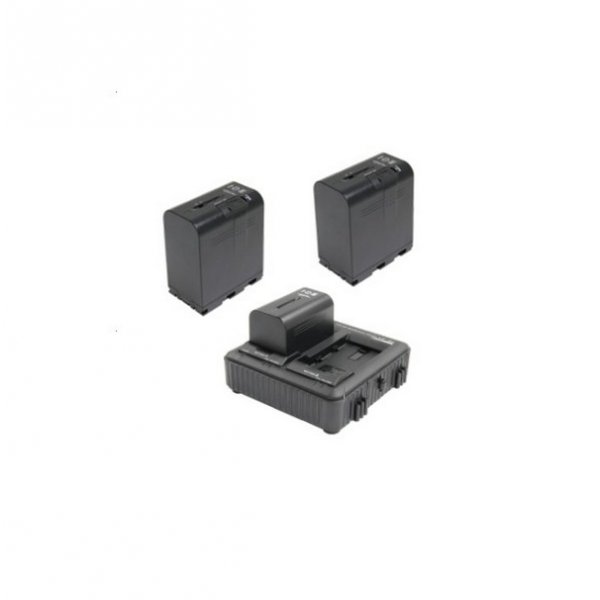

IDX JP-2 Kit with 2x SSL-JVC75 Batteries and 1x LC-2J Charger

IDX JP-2 (JP_2, JP/2, JP 2) Kit with 2x SSL-JVC75 Batteries and 1x LC-2J Charger

The SSL-JVC75 Lithium-Ion Battery

IDX has partnered with JVC to manufacture a high capacity Li-ion battery, designed specifically for use with the GY-HMQ10U and GY-HM600 Series Camcorders.

The SSL-JVC75 is a high capacity 7.4V, 7350mAh, 55Wh Li-ion battery

LC-2J

7.4V 2-Channel Simultaneous Quick Charger for SSL-JVC50 and SSL-JVC75 batteries

The LC-2J is a 2-Channel simultaneous quick charger for the IDX SSL-JVC50 Li-ion battery.  Each channel is operated independently, so batteries can be placed on charge in any order and at any time for a quick turnaround.  The LC-2J has an ultra compact footprint, but multiple LC-2J units can be connected to create a solid charging base is required.

• Battery Capacity: 7.4V, 7350mAh, 55Wh
• Max. Output Voltage: 8.4V DC
• Nominal Voltage: 7.4V DC
• X-Tap Connector: 6.0V-8.4V, 3.3A/20W Maximum load
• Battery Protection: Over charge (reset), Over discharge (reset), Over current (reset), Temperature monitoring and protection
• Battery Charge Time:340 minutes approx

Ambient Temperature

• To charge:: 0°C ~ 45°C (0°C ~ 30°C recommended), 32°F ~ 113°F (32°F ~ 86°F recommended)
• To discharge: 20°C ~ 45°C / 68°F ~ 113°F
• To store: -20°C ~ 50°C / -4°F ~ 122°F

LC-2J

• AC Adaptor input voltage: AC100 240V 50/60Hz
• Charger input voltage: 12~19V DC
• Charge current: 1.6A
• Compatible batteries: SSL-JVC50
• Charging time: 230 mins approx.
• Dimensions: 140(W) x 46(H) x 129(D) mm
• Weight: 500g approx.

In the box

• 2x SSL-JVC75 Batteries
• 1x LC-2J Charger
